Nexus S SIM Card Board Replacement

Geschrieben von: Walter Galan
  • Kommentare: 0
Nexus S SIM Card Board Replacement

Schwierigkeitsgrad

Moderate

Schritte

3

Zeitaufwand

Keine Schätzung

Einleitung

Internal prereq.

  1. QRqT5XJJj5lScBU6

    • Use the flat edge of a plastic opening tool to pry the SIM Board connector off its socket on the motherboard.

  2. a2HH2XBMnVdLWTre
    a2HH2XBMnVdLWTre
    gLiibFNweFVjFPDv
    psmFHniATVlaqj21

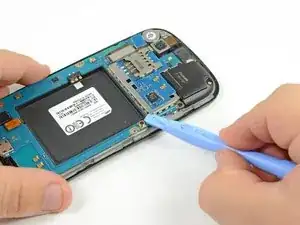

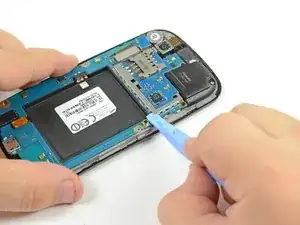

    • Wedge the edge of a plastic opening tool underneath the SIM Card board and motherboard.

    • Pry the clips located near the right bottom edge of the SIM Card board up off the motherboard.

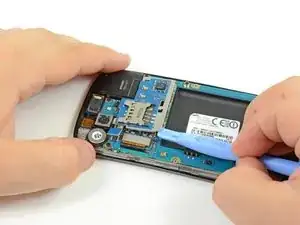

    • Repeat the process all along the bottom perimeter of the SIM Card board until all clips have been disengaged.

  3. IEoE3JM4Ed3VYwDP

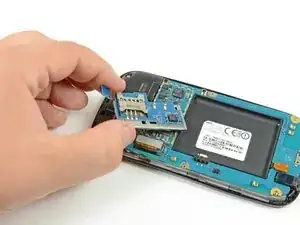

    • Lift and remove the SIM Card board out of the Nexus S.

Abschluss

To reassemble your device, follow these instructions in reverse order.
