Nikon 1 J5 Back Case Replacement

Geschrieben von: Terrance
  • Kommentare: 0
Nikon 1 J5 Back Case Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

20 Minuten

Einleitung

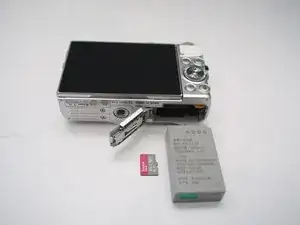

  1. miwjjftFuQahBFjY

    • Remove Micro SD card and Battery

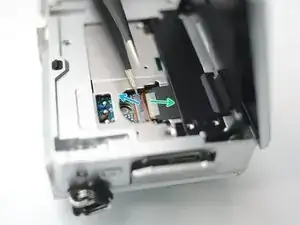

  2. jHqwA5ycCkLXhSTr
    jHqwA5ycCkLXhSTr
    hFPpRQwyS2XVApFp
    ecY1VSgGJWOJxG2m

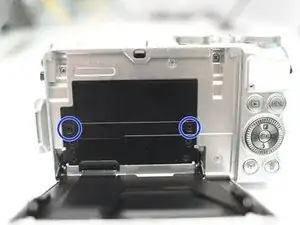

    • Remove 2 screws

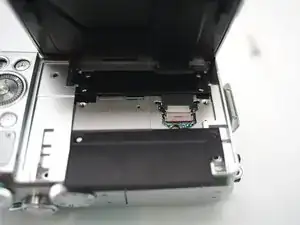

    • Open plastic LCD connector cover

    • Lift FPC connector latch

    • Detach LCD FPC

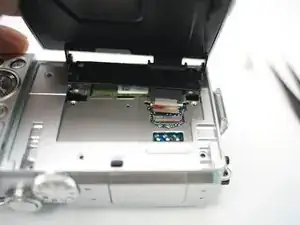

  3. VCfwG2EXmQr4QnEd
    VCfwG2EXmQr4QnEd
    PRwPgENrYlbS2MOF
    twbGddOLkalKPVt3

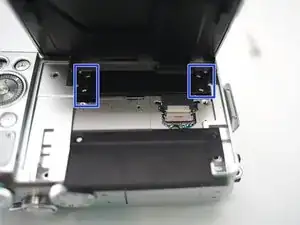

    • Remove 4 screws

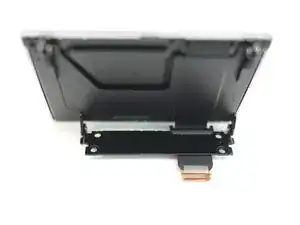

    • Remove LCD module

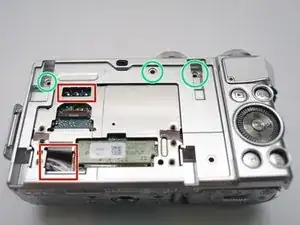

  4. ryFfJN4jTmHSNJux

    • WARNING!!! DO NOT TOUCH THESE Solder joints!!! High Voltage up to 300V..

    • Or discharge the flash condenser first, as per "Main PCB replace guide"

    • Remove 3 screws

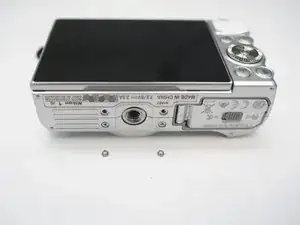

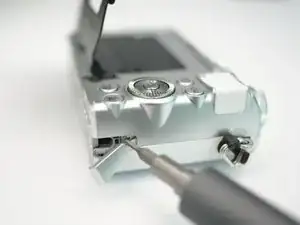

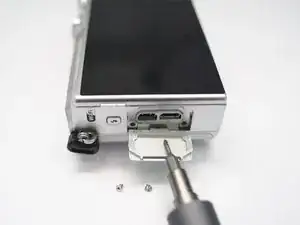

  5. pPvJRsKXURiFV4gL
    pPvJRsKXURiFV4gL
    CROUdHXGRkAY2x2u
    ESbwPviGuL2XPtvw

    • Left side, in connector bay, remove 2 screws.

    • Bottom, reomve 2 screws

    • Right side, remove 1 screw

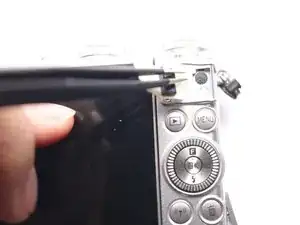

  6. LWBr4a56p2AeDVlP

    • Peel here and remove 1 screw within.

  7. 1vE4wUG36DeakwES
    1vE4wUG36DeakwES
    NVOlgO1dPd1pZihc

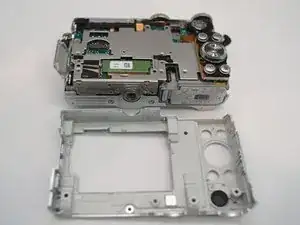

    • Pop open back case and remove it from body.

Abschluss

To reassemble your device, follow these instructions in reverse order.
