Einleitung

  1. miwjjftFuQahBFjY
    • Remove Micro SD card and Battery

  2. jHqwA5ycCkLXhSTr
    jHqwA5ycCkLXhSTr
    hFPpRQwyS2XVApFp
    ecY1VSgGJWOJxG2m
    • Remove 2 screws

    • Open plastic LCD connector cover

    • Lift FPC connector latch

    • Detach LCD FPC

  3. VCfwG2EXmQr4QnEd
    VCfwG2EXmQr4QnEd
    PRwPgENrYlbS2MOF
    twbGddOLkalKPVt3
    • Remove 4 screws

    • Remove LCD module

  4. ryFfJN4jTmHSNJux
    • WARNING!!! DO NOT TOUCH THESE Solder joints!!! High Voltage up to 300V..

    • Or discharge the flash condenser first, as per "Main PCB replace guide"

    • Remove 3 screws

  5. pPvJRsKXURiFV4gL
    pPvJRsKXURiFV4gL
    CROUdHXGRkAY2x2u
    ESbwPviGuL2XPtvw
    • Left side, in connector bay, remove 2 screws.

    • Bottom, reomve 2 screws

    • Right side, remove 1 screw

  6. LWBr4a56p2AeDVlP
    • Peel here and remove 1 screw within.

  7. 1vE4wUG36DeakwES
    1vE4wUG36DeakwES
    NVOlgO1dPd1pZihc
    • Pop open back case and remove it from body.

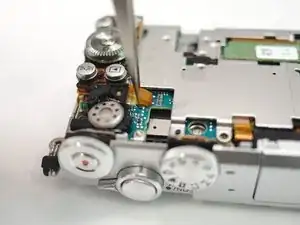

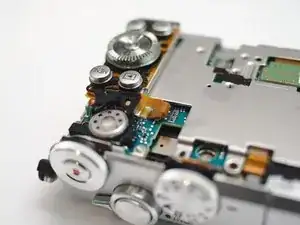

  8. MNJXOTAkZAIlllJV
    MNJXOTAkZAIlllJV
    lcAK5R2vBgYdF1Nv
    IvXEe4kZbwBa1YDa
    • Disconnect speaker

    • Disconnect keypad FPC

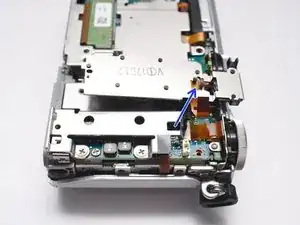

  9. cC4KTqPPWPFmROu2
    • Push latches from below

    • pop up and remove keypad.

Abschluss

To reassemble your device, follow these instructions in reverse order.
