Nikon COOLPIX P600 Viewfinder Replacement

Geschrieben von: Stephen Lee
  • Kommentare: 4
Nikon COOLPIX P600 Viewfinder Replacement

Schwierigkeitsgrad

Moderate

Schritte

24

Zeitaufwand

1 Stunde

Einleitung

  1. GssjhMq3ooUQHLwh

    • Position the back of the camera facing you and open the LCD screen to the left.

  2. MZh1J3w2fOydOlZF
    MZh1J3w2fOydOlZF
    X1sabFiQ3KI6KVkX

    • Use a Phillips screwdriver to unscrew the two 5.556 mm screws under the LCD screen.

  3. IPnCYTpaGc1BSmQX
    IPnCYTpaGc1BSmQX
    osW62JFGfDcm1gkh
    MBAwdXodLJkPRWxO

    • Use a Phillips screwdriver and remove the eleven 5.556 mm screws around the outside frame of the camera.

  4. tDVuec2lBIcJKQiW

    • Open the "HDMI" rubber flap.

    • Use a Phillips screwdriver and remove the 5.556 mm screw underneath the flap.

    For the P900, there are slight differences in screw position, but the basics are the same.

    P.A. C -

  5. BZodZsgtDYZTZLrq

    • The flash button is located on the left side of the built-in flash compartment.

    • Press the flash button (as shown) to access flash.

  6. Kf3emMok2aGQ1hPM

    • Use a spudger to wedge underneath the flash

    • Pry (up and down) to separate.

    • It is important to choose a tool that is ESD-safe to avoid accidental damage to the device. A black nylon spudger, or plastic opening tool, should be used whenever possible.

    P900, there are two more screws, one on each side of the flash

    P.A. C -

  7. qtr3BPxDGdsAqZVq

    • Use your hands to gently pull the front and back of the camera apart.

    • Be careful not to damage the ribbon-wire shown in the red box.

  8. K5XeJqxmeOnCsj1X
    K5XeJqxmeOnCsj1X
    fBQWtmcdfevyviY6
    PglV2QnBNDR3f23u

    • Use needle-nose tweezers to gently lift the black/grey latch towards the ribbon-wire (the latch rotates upward to release and snaps down to lock).

    • Be careful not to break the latch. It cannot be replaced.

    • Use tweezers to gently remove ribbon-wires.

    • Pull the ribbon-wires towards the back-end of the camera.

  9. yZN4A4ofFVJBYitg

    • Use a Phillips screwdriver and remove the single 6.350 mm screw, left of the mode-adjustment dial.

  10. eXhqSHQtYCAc5OoE
    eXhqSHQtYCAc5OoE
    JRGFLGiUlMciukKn

    • Use needle-nose tweezers to remove the large ribbon-wire located under the screw.

    • Gently wiggle the ribbon out in an upward motion.

    • For easier access, you can push the black surface of the camera where the buttons and dials are located. Do not push too hard as this may break the plastic.

  11. EyTPRawJDfVCZPCS
    EyTPRawJDfVCZPCS
    prCmKagtuHwAP3vB

    • Insert a plastic opening tool under the shutter button.

    • Gently pry (back and forth) between the rubber grip and camera casing.

  12. GUEdyp4jhJlQHUcR
    GUEdyp4jhJlQHUcR
    WVaFraFDBFyaJeon

    • Place hands around the camera. Hold onto the mode dial and grip under the shutter button.

    • Gently push right thumb away and pull in left index finger to separate the camera halves.

  13. xFJ5f2DCJXcHgkIy
    xFJ5f2DCJXcHgkIy
    4mypUpprwEA16jnd
    XSqc4HNbCKCEKB6h

    • Use a Phillips screwdriver to remove the nine 3.175 mm screws on the inside of the camera.

    • Use tweezers to remove the golden bracket.

    9x 3.175 screws, not 10

    Tom -

  14. XFVd3jLbLEExYASF

    • Use tweezers to remove the white film under the shutter-release button.

    • This white film is a cover for the electrical components. The camera will not be affected if it rips or comes off completely.

    • Be careful: three high-discharge capacitor leads are located under this film, and can result in electric shock if touched.

    Be careful here. My tweezers touched something under this white film and shocked me really bad.

    Tom -

  15. mPcHSeCEiXYV1Ikh
    mPcHSeCEiXYV1Ikh
    W26FYUQvU32Ry6ac

    • Use tweezers to remove the yellow ribbon-wire.

    • Gently wiggle it to the left and then out of its port.

  16. TT1tTjVXGbN1Noyf

    • Use hands to remove the metal cover.

    • Pull the cover up.

  17. OSjqLiDkQ2JDkIuW

    • Use tweezers to remove the golden bracket.

  18. 5TxUcNVoBqq6tKRR
    5TxUcNVoBqq6tKRR
    YBP6haMmDOZrwvaE

    • The tripod connector is located at the bottom of the camera.

    • Use tweezers to remove the tripod connector.

  19. EnYOjDLlRieoRbEA
    EnYOjDLlRieoRbEA
    t3HElfQMtvfcy52P
    sh5Whq2fcBySAjnO

    • Unscrew the three 3.175mm screws.

    • Use caution to not to lose the screws in the cavities of the camera.

  20. X4WsEjQYkJBkLQ3C

    • Continue removing screws, keeping an awareness of the cavity right below the screw. It would be difficult to extract screw if lost in this cavity.

  21. Fhk2jOOAvUTRWr6F
    Fhk2jOOAvUTRWr6F
    iIKFcyZCMcFtw5VJ
    LSFmGRCfVSECAY5N

    • Remove lens by pulling up vertically.

    • Be careful not to damage any of the electrical ribbon on top of the lens.

  22. benxGBnLFSJ3QllM

    • Unscrew the 2 screws located at the top of the viewfinder.

  23. 1ygGLmwrAmKdOMhg
    1ygGLmwrAmKdOMhg
    O6ekCCcWe5vQehKb

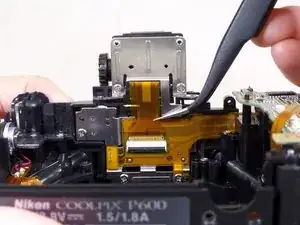

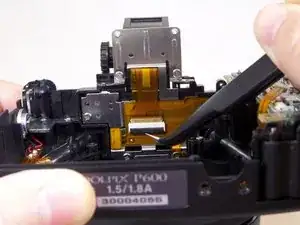

    • Unclip and pull out the yellow wire ribbon.

  24. hrJyYHVi1adlpyv2
    hrJyYHVi1adlpyv2
    F6nBmjFrxWQLehiN
    bagrHN1NcqhcHZUg

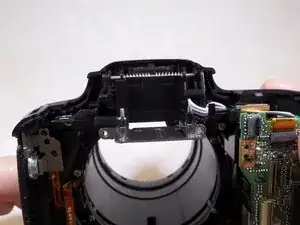

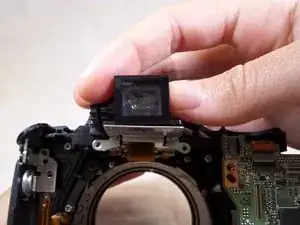

    • Vertically lift the viewfinder piece for removal.

    • Carefully, as the wire ribbon is slowly removed out of its slot when viewfinder is pulled out.

Abschluss

To reassemble your device, follow these instructions in reverse order.
