Nikon COOLPIX P7700 Focusing Screen Replacement

Geschrieben von: Dustin Wahl
  • Kommentare: 10
Nikon COOLPIX P7700 Focusing Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

17

Zeitaufwand

30 - 45 Minuten

Einleitung

This guide showcases how to replace the focusing screen on the Nikon COOLPIX p7700 camera. Follow these 18 steps to ensure proper replacement of the camera's focusing lens.

  1. 5NmOBO2TfKuHSdOj
    5NmOBO2TfKuHSdOj
    wegiWGVBtexlNCK2

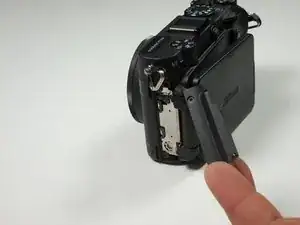

    • Turn camera to the left side and remove the two 4.3 mm black side screws using the Phillips #00 screwdriver.

    • Remove the side panel.

  2. SMb1OEVioVwojOuR

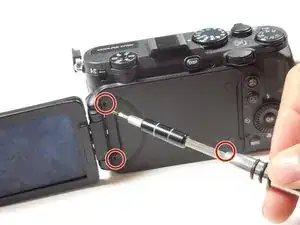

    • Open the touch screen, and remove the three 4.3 mm black screws inside using the Phillips #00 screwdriver.

    These 3 screws are longer than the others! Store them separately.

    Tomaz -

    If you fix the p7800, the right down screw is different, its not a countersink, its flush.

    Robert Böhm -

  3. qPAADVkMTZtFQfHj

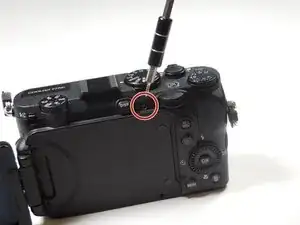

    • Remove the 4.3 mm black screw on top of the camera, right above where the screen folds out. Use the Phillips #00 screwdriver.

  4. gMTGKdn1WcAyLgci

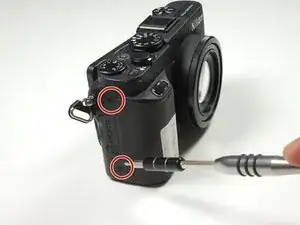

    • Remove the two 4.3 mm black screws on the right side of the camera using the Phillips #00 screwdriver.

  5. VQVTScFnb36pPPIF

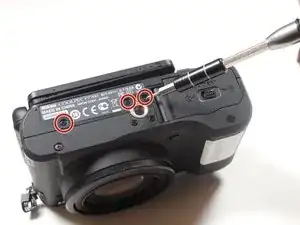

    • Remove the 4.3 mm black screws on the bottom of the camera using the Phillips #00 screwdriver.

  6. paWQbkMTwxpuFD2K
    paWQbkMTwxpuFD2K
    INNlB2Y4BOUci2I1

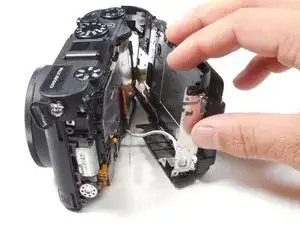

    • Begin separating the camera into two parts.

    • It is okay to remove the orange ribbon. This will be easily put back into place when re-assembling.

    a. Remove plastic plate between main body & LCD screen (where the thumb is in the pic).

    b. Remove one screw (the only one) found behind the plastic plate.

    Kramm K -

    This is the most scary moment as I did not know how to remove the orange flat cable. I would not come off and I broke off a little plastic. Somehow it came off accidentally as I moved the backcover. The cable was later re- inserted with care, from the right towards the left via a very thin slit.

    JY -

    "It is okay to remove the orange ribbon. This will be easily put back into place when re-assembling." Easily put back? Yeah, right (not!). It is actually anything but easy. I managed doing it after several attempts, but it was more by luck than skill. The ribbon is tiny, the contacts even more so and the slot into which the ribbon must be reinserted - I cannot even see it properly. A pair of small tweezers is a must for this step.

    Tomaz -

  7. K1ptRuUO4sp2dSVh

    • Remove the back casing.

    It would be better to lift the little white adhesive tape so that the backcover could be worked on.

    JY -

    Step 4: I had to remove the blank screw as well..

    Konrad Erhard -

    Hi,

    Thank you for your most professional advice.

    How can I clean the sensor??

    Moshe Pulik -

  8. sBmTMX66jt3YLuwA

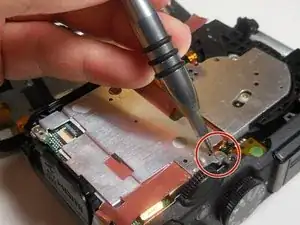

    • Once the back casing is off, locate the 4.3 mm silver screw near the top of the camera and remove it using the Phillips #00 screwdriver.

  9. AxxkhGaBeGD2KxQc

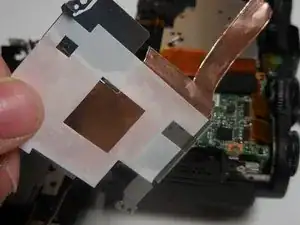

    • Remove the metal sheet from the camera.

    • It is okay to remove the orange ribbon from the camera.

  10. F5V3KOAjjqtS3U5w
    F5V3KOAjjqtS3U5w
    JDStwQdAGsVGWXXy
    rtpM2IpH2jyOYDBe

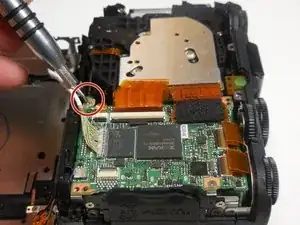

    • Remove the four 4.3 mm silver screws located on the ends of the chip using the Phillips #00 screwdriver.

  11. bXULdBTZhNDyCTGF
    bXULdBTZhNDyCTGF
    FcKmAC6I54NhG4DS

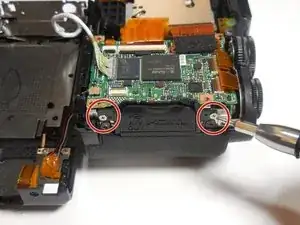

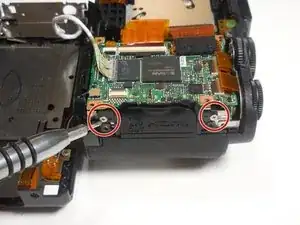

    • Remove the two 4.3 mm silver screws on the far right side of the camera using the Phillips #00 screwdriver.

  12. KJuMDAPMGnx2EU5C
    KJuMDAPMGnx2EU5C
    3FwCddpZqLNEv3Sd

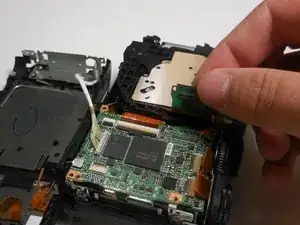

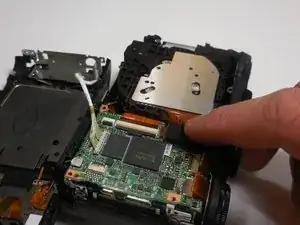

    • Lift and detach connector from board as shown.

  13. EdTJX5r2PyDYQKYY

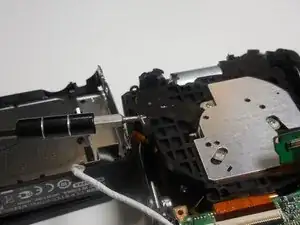

    • Remove the board from the camera to locate lens opening

  14. OWDXXbl1wcIFEaDL

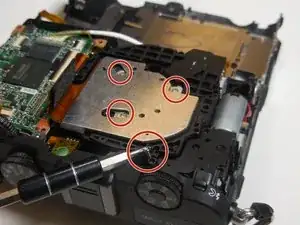

    • Remove the 4.3 mm screws from the metal sheet using the Phillips #00 screwdriver.

  15. jYOZ2Dmo1VuIDJQ5

    • Lift the metal sheet up and out of the camera.

  16. HgNquRYRvKNqFuvm

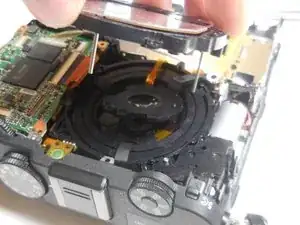

    • Locate the reflective lens.

  17. aTiO1CFGWdCwi6ad

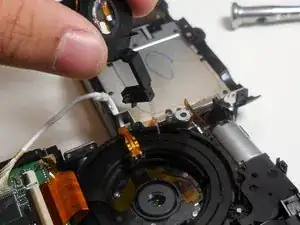

    • Remove the lens from the camera.

Abschluss

To reassemble your device, follow these instructions in reverse order.
