Einleitung

If the screen does not power on, even when the camera itself is powered on, the LCD screen could be broken. This guide will show the proper instructions for replacing the screen.

  1. uBe5MtGIvMKQ2J23
    • Remove the three 4 mm screws from the bottom of the camera using a #00 Phillips screwdriver.

    • Remove the single 3.5 mm screw from the bottom of the camera using a #00 Phillips screwdriver.

  2. fIgm3xhoHANN3H6Z
    fIgm3xhoHANN3H6Z
    ELFZ4nVS2fXZoLt3

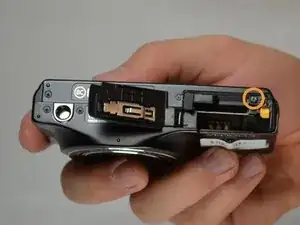

    • With the bottom of the camera facing you, slide the latch on the compartment to the left.

    • Swing the battery compartment door open.

    • Remove the 3.5 mm screw from the inside with a #00 Phillips screwdriver.

  3. pEUfh3FXKVOjCau4

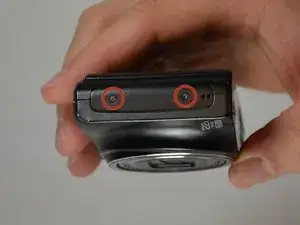

    • With the screen facing you, locate the two 3.5 mm screws on the left face of the camera. Remove them using a #00 Phillips screwdriver.

  4. Z1CDyXIbDXM2KFyZ

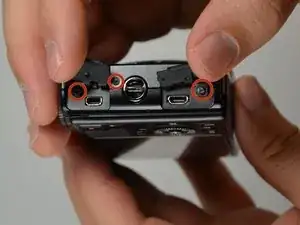

    • With the screen facing you, locate the three 3.5 mm screws on the right face of the camera. Remove them with a #00 Phillips screwdriver.

    • Two of the screws are located under the port tabs.

  5. RCLSAHTtPGhPL4IG
    RCLSAHTtPGhPL4IG
    MTHBqDeEEHi1eidN

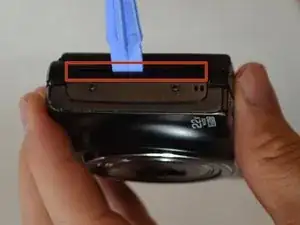

    • Locate the crease where the case comes together.

    • Using a plastic prying tool, pry at the line to remove the camera case.

    • It may take several attempts to remove the case. Remember to pry at all the crease locations on the camera, and not just one spot.

  6. HUKKSawpvJvWOALM
    HUKKSawpvJvWOALM
    FXDBKPMd1rRWvwHB
    VfVTvfAWyRoXQrXp

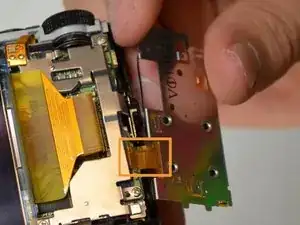

    • Slide the yellow navigation panel to the right so that it can be lifted up.

    • It may take a little pressure to get the panel to separate.

    • Be careful not to damage the ribbon cable that is still attached to the camera.

  7. RyvZAsaOtdPGisOD

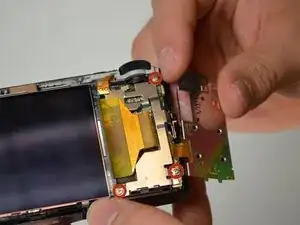

    • Remove the three 4 mm screws with a #00 Phillips screwdriver.

  8. k6SOI11JWWARBqVL

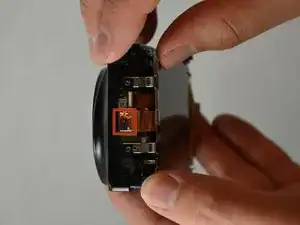

    • Locate the magnet and copper tape on the left side of the camera.

    • Gently pull the copper tape off of the metal plate.

    • The copper tape is attached with some glue, so a little force will be needed to detach it.

  9. ASw1FPGhOFW6Cncs
    ASw1FPGhOFW6Cncs
    5WErKmHR6rMVlqXo
    bKwoI6T3YXeXVL2L

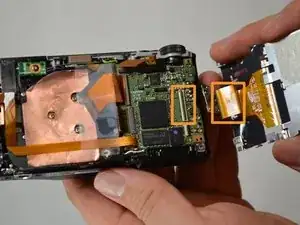

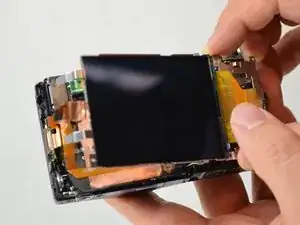

    • Lift the screen up and swing it to the right, exposing the circuit board underneath.

    • The navigation panel should still be attached to the circuit board with a ribbon cable as indicated in red.

    • Detach the ribbon cable that is connecting the LCD screen and the circuit board.

    I had to use some Goo Gone to loosen the glue between the old screen and the aluminum mounting plate.

    Tommy Evans -

Abschluss

To reassemble your device, follow these instructions in reverse order.

Jim Bui

Mitglied seit: 20/01/15

811 Reputation

Ein Kommentar

In step 9, you should mention the small circuit board that has to be released from the screen on the top right of the screen.  (It can been seen in the step 6 picture.)   It would also been helpful if you mentioned the flange on the ribbon cable connector that should be loosened to allow the cable to be disconnected.   The guide allowed me to disassemble and reassemble the unit with a new screen, but the camera was totally inoperative afterwards (would not turn on or charge at all) so I can’t say the guide was helpful.

John Bolland -
