Nikon CoolPix S5 Plastic LCD Screen Cover Replacement

Geschrieben von: Josh Miller
  • Kommentare: 0
Nikon CoolPix S5 Plastic LCD Screen Cover Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

10 - 15 Minuten

Einleitung

This guide is to be used to install the plastic LCD screen cover in the case that it becomes damaged or no longer functions properly due to overuse. A Phillips screwdriver will be needed to complete this installation.

  1. YPuPry5uskBsWTRX

    • Remove the wristlet by untying the strap.

  2. 4qIlvUucC4lYQGf6

    • Open the SD/Battery cover.

  3. MuUGtKVSXYbPrNLp
    MuUGtKVSXYbPrNLp
    MSNERUkGQByZvPYO

    • Remove the four screws adjacent to the SD/battery opening using a Phillips #00 screwdriver.

  4. 5yOJMNdWPaNWVx6C
    5yOJMNdWPaNWVx6C
    rPXCPYUTjYRCaPQP

    • Remove the side paneling of the camera by prying it off with your hands.

  5. fOEZeGI4gCZD6gVf
    fOEZeGI4gCZD6gVf
    WDZu3FEAJudjHJs5

    • Start on the wristlet side of the camera and use the #00 Phillips screwdriver to remove the two screws that hold the backplate in place.

    • Repeat the removal of the two screws on the other side of the camera.

  6. CdPKXChHG3eT4JGp
    CdPKXChHG3eT4JGp
    IJChEJmmO12c2Xtx

    • Separate the back faceplate from the rest of the camera.

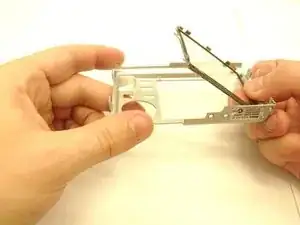

  7. CuAMlLTAkhKBtwPy
    CuAMlLTAkhKBtwPy
    cpOZYRFoUjke1ZaH

    • Press lightly on the outer surface of the plastic LCD screen cover in each corner.

    • The plastic LCD screen cover should pop out of the back plate.

Abschluss

To reassemble your device, follow these instructions in reverse order.
