Einleitung

This guide will demonstrate how to remove and replace the camera lens on a Nikon Coolpix 3500.

Prior to the replacement process, be sure to save photos from the device, have the new camera lens available, and disconnect any external power.

During the replacement process, it is necessary to disconnect the battery from the device before removing and replacing the camera lens.

After the replacement process, it is then important to reconnect the battery.

  1. JSLtCtVWhsGQOH1e

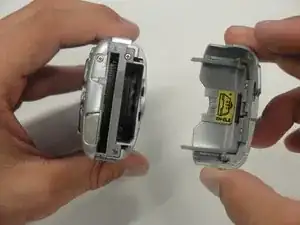

    • Unlatch the battery cover. Slide the cover out and flip it open.

    • Remove the battery.

    • Gently remove the battery cover.

  2. rw5KHCGPWr5XMWe6

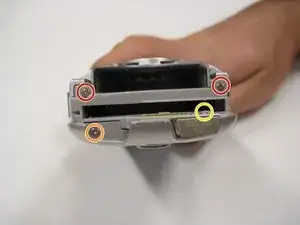

    • Remove the two 4.5 mm screws that sit next to the battery slot.

    • Remove the 3 mm screw that sits below the CF card slot.

    • Remove the 4.5 mm screw that sits above the digital I/O cover.

  3. 6Pwua4XfjtVeatrL

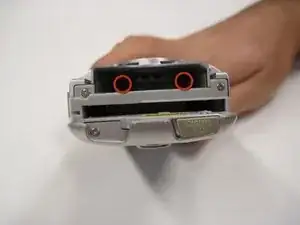

    • Remove the two 4.5 mm screws that sit inside the battery slot.

  4. 13nu5ovLpdWBJTiU

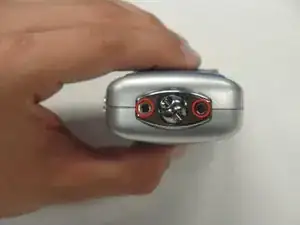

    • Remove the two 5 mm screws that sit near the camera strap eyelet.

    • Remove the camera strap eyelet.

  5. t2FVJLJ4IC3NCgYA

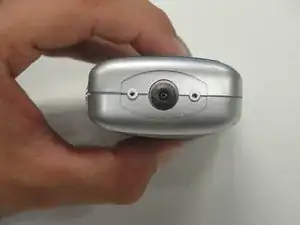

    • Remove the 5 mm screw and cap that were underneath the camera strap eyelet.

  6. PcHGJb3GutQDKVWO
    PcHGJb3GutQDKVWO
    PWpUU1LkrIdDrQZ4

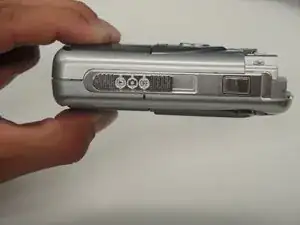

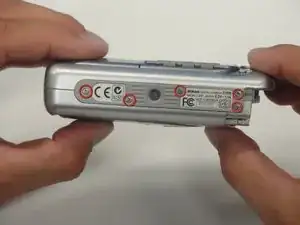

    • Remove the five 3.5 mm screws that sit at the bottom of the camera.

    • Remove the grey plastic piece, which the five screws held in place, by gently detaching the front cover.

    • Do not apply too much force; two wires still connect the front cover to the motherboard.

  7. 3EZTBAU45ieGbM2Y
    3EZTBAU45ieGbM2Y
    LjioDeoNBeccyACg

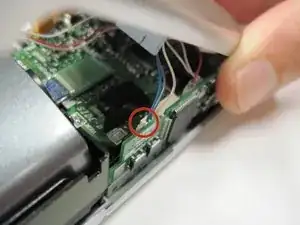

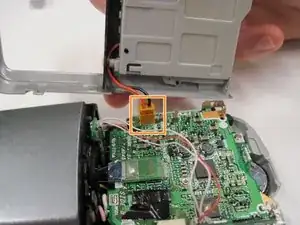

    • Using a spudger, detach the white-capped wire.

    • Using a spudger, detach the orange-capped wire and set the front cover aside.

  8. KLS5wqCAt3VdfTqv

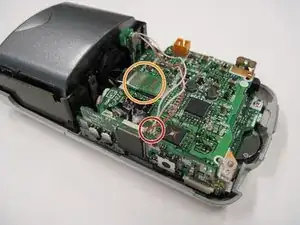

    • Disconnect the grey-capped wire from the motherboard.

    • Disconnect the blue wire attached to the green chip from the center of the motherboard.

  9. YiCVi2lnxJWVrBTU
    YiCVi2lnxJWVrBTU
    BArcnD23ClYw6KuJ

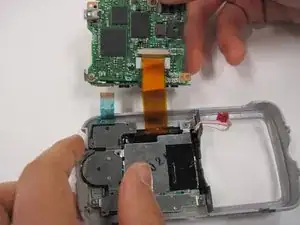

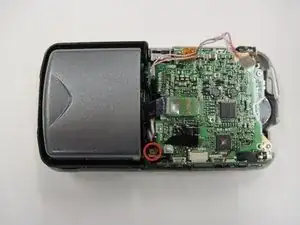

    • Remove the 3.5 mm screw from the motherboard next to the rotating lens.

    • Invert the motherboard and lens toward the orange and blue wires still connecting the motherboard to the LED screen.

  10. YtPduPJEsGXbWEJ6
    YtPduPJEsGXbWEJ6
    OQQFO4u1kTsUDHtB

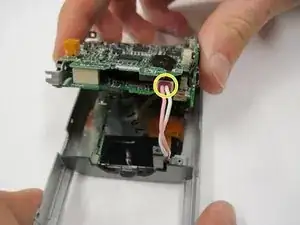

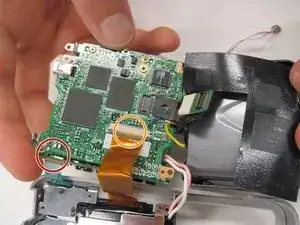

    • Disconnect the blue wire connecting the motherboard to the LED screen.

    • Disconnect the orange wire using a spudger while pushing out horizontally.

    • Disconnect the red capped wire from the motherboard.

    • Lift the motherboard and lens (still connected) out of the back case.

  11. YQJfhaACsiaUCu2J

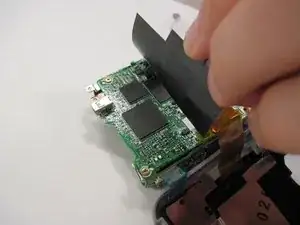

    • Lift up on the black covering and remove the orange wire connecting the lens to the motherboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
