Nikon Coolpix 7900 Back Cover Replacement

Geschrieben von: Kaky Payne
  • Kommentare: 0
Nikon Coolpix 7900 Back Cover Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

15 Minuten

Einleitung

Use this guide to replace the back cover.

  1. NU5mrvIoyFDFuSFH

    • Remove the four 3.0mm screws on the bottom of the camera.

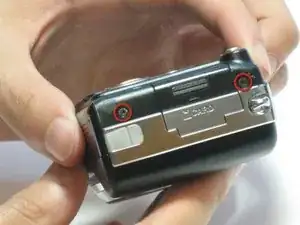

  2. baGSWoqAItOfDGuk

    • Remove the two 3.0mm screws on the left side of the camera near the memory card compartment.

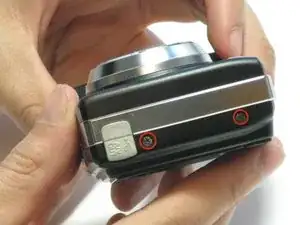

  3. 1RDt3XSMhunJnwto

    • Remove the two 3.0mm screws on the right side of the camera.

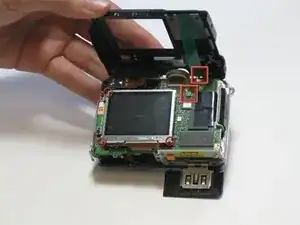

  4. 4UfLtRsGU5ikBuy5

    • Carefully open the back cover. Take care as there are connectors still attached.

  5. 5FufVX1eTMHloNYh

    • Disconnect the cable by pulling the head upward along the green circuit board. If you only are changing the LCD, skip this step.

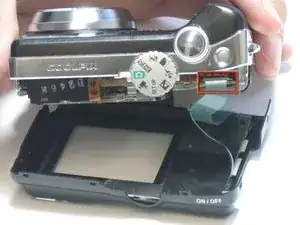

  6. VSuhC6HvI5dhPICT

    • Disconnect the ribbon cable by grabbing the two handles and pulling it directly out of the socket. If you are only changing LCD, skip this step.

    • The back cover will be disconnected from the camera

Abschluss

To reassemble your device, follow these instructions in reverse order.
