Nikon Coolpix 995 LCD Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

10 - 15 Minuten

Einleitung

This iFixit guide shows you how to disassemble the Nikon Coolpix 995 camera, and remove/replace the LCD display.

  1. GbgSAVUOppwC2ZHS
    GbgSAVUOppwC2ZHS
    uVmim3EYn5vkPTBS

    • Turn the lens/flash assembly 90 degrees, until you see the two Phillips #00 screws,

    • Remove the two screws with a Phillips #00 screwdriver.

    • Flip the flash so that you can access the remaining two screws. Remove these screws following the same method as before.

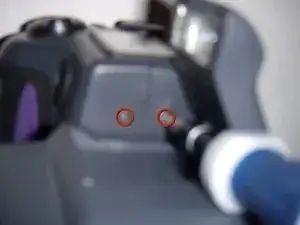

    • Refer to the second image to locate the second set of screws. The relevant screws are highlighted in red.

  2. FXUgHvhqGkvWRbUW

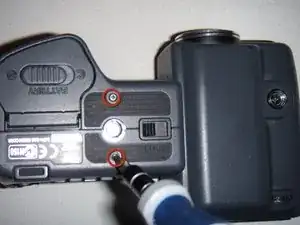

    • Flip the camera up-side down.

    • Remove the two Phillips #00 screws located near the battery compartment.

  3. 6cWe5qjFRqJFoIf1

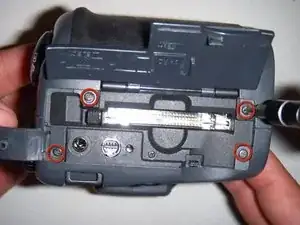

    • Open the memory card compartment cover.

    • You can now see four screws under the cover. Remove all four screws.

    • Refer to the image to locate the four screws. Make sure that you remove only the four screws identified in the image.

  4. jWmT1wPGXFsLywNo
    jWmT1wPGXFsLywNo
    OgExg5YY6cV5ZQCa

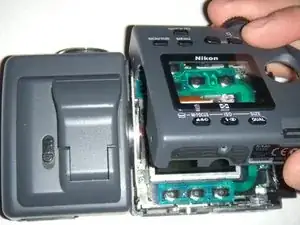

    • Use your thumb to carefully lift the bottom side of the casing near the battery.

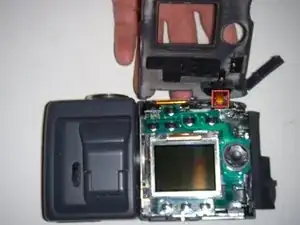

    • Pay attention to a cable located at the top of the assembly, as it is prone to breakage. Refer to the second image to locate the cable.

  5. jEeEjcPUtPNYC1UL

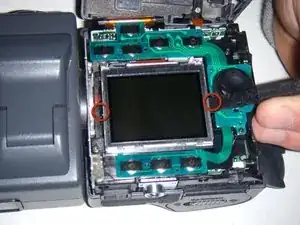

    • Use a spudger to flip the tabs that hold the screen.

    • Refer to the image for more details. The tabs are circled in red.

  6. BjbRZVuNBKSPZZV3

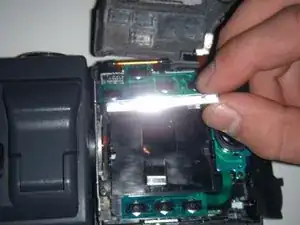

    • Carefully lift the LCD from the bottom. It should come out fairly easily.

Abschluss

To reassemble your device, follow these instructions in reverse order.
