Nikon Coolpix A900 Monitor Replacement

Geschrieben von: Andres Aronstam
  • Kommentare: 5
Nikon Coolpix A900 Monitor Replacement

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

5 Minuten

Einleitung

This guide will show you how to remove the monitor assembly on the Nikon Coolpix A900.

If the monitor on your camera suffers a hard drop, water damage, or gets to scratched up, you may want to replace your monitor.

This guide is relatively simple, but be sure to have a container for small parts ready.

  1. XIILUYSexLEDvkLO

    • Orient the camera so that it is upside down, with the lens facing towards you.

  2. OxNhZUDI1sqZMDHi
    OxNhZUDI1sqZMDHi
    Yfq1TQCndC1Lu442

    • Slide the battery door lock left to unlock it.

    • The battery door will automatically open.

    Good addition of different conditions of the camera (camera is dirty)

    Brandon -

  3. sCMdRfbYnveOfRWk
    sCMdRfbYnveOfRWk
    ZyKTbTVXWtABKGtv

    • Slide the yellow tab up to release the battery.

    • To re-insert a battery, slide the battery back in until the yellow tab locks it in place.

    • There is a diagram on the opposite side of the battery compartment to help you orient the battery correctly.

  4. NpBn5gRRhJWZjSB1
    NpBn5gRRhJWZjSB1
    UXJkotBVgQEU1qYI
    Ckwt1Mkw3RpdCuOZ

    • Orient the camera upside down, with the lens facing away from you.

    • Remove the two 3mm Phillips #00 screws from the right.

    • Remove the two 3.4mm Phillips #00 screws from the left.

  5. ocNpOrcXktvUqkBf
    ocNpOrcXktvUqkBf
    XfLKeDdaQ3Ep325I
    esHIVDYo3CvbpgQT

    • Turn the camera on its side, with the lens facing away from you.

    • Remove the 3.4mm Phillips #00 screw. Repeat this for the opposite side of the camera.

  6. QMxyV2MaSTrpFvYC
    QMxyV2MaSTrpFvYC
    LBxOmvXYm6mI3INv
    vulhqLRBXehE6tmG

    • Place the camera upright with the lens facing away from you.

    • Move the monitor down, and remove two 4.4 mm screws.

  7. 6XJAsJyMLqMc1Mr2
    6XJAsJyMLqMc1Mr2
    kIRhdO1YY1SHShW2

    • Remove the two black 2.5 mm screws from the monitor bracket.

    Is there anywhere I can buy a replacement screw for this part? I have lost one of these screws

    Dylan Feeney -

  8. M536RbqmTGWT6KTI
    M536RbqmTGWT6KTI
    yuRHBmmxtwf663Dc

    • Return the monitor to the closed position.

    • Gently open the rear case.

    • You may need opening tools to help separate the rear case.

    • Be careful when opening the rear case to not damage the ribbon connectors.

  9. hsloJpjfO54WoeNs
    hsloJpjfO54WoeNs
    CGmPOmAMMRXUENGI
    IYt5skspPmCREoWv

    • Place the camera lens down, while supporting the rear case.

    • Unlock the two ribbons by using your finger to lift the plastic hinge on the ribbon connector.

    • With the ribbons disconnected, you can now remove the rear case.

  10. xpBFGQI2fPMLDdmH
    xpBFGQI2fPMLDdmH
    FZdLGXHvp1Tkd2X5
    fnVNwVDgFBBXXZTe

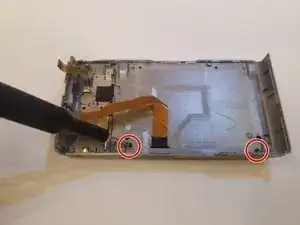

    • Set the rear case screen down.

    • Remove the two 2.5 mm black Phillips #00 screws.

  11. wmBA5UYNbkZGswZ4
    wmBA5UYNbkZGswZ4
    BYPHYwBdL5afVNB2

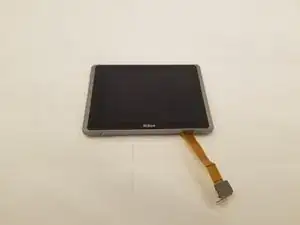

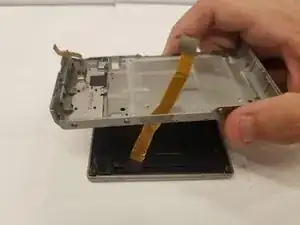

    • Separate the rear case from the monitor assembly.

    • Make sure that the ribbon cable does not snag on the rear case when removing it.

    Hello. Excellent help. Where can I get a new screen for my Nikon A900 when the screen glass is broken and the screen is not clear, please?

    Timo Nieminen -

Abschluss

To reassemble your device, follow these instructions in reverse order.
