Nikon Coolpix AW130 Battery Door Replacement

Geschrieben von: Lauren Stepp
  • Kommentare: 8
Nikon Coolpix AW130 Battery Door Replacement

Schwierigkeitsgrad

Easy

Schritte

8

Zeitaufwand

10 Minuten

Einleitung

Safely replacing the battery door is a necessary step in protecting the internal components of the camera. Thoroughly completing this process also protects the waterproof integrity of the piece.

  1. umDn1gRfdGucQY2K
    umDn1gRfdGucQY2K
    NxSNFhVAn11yLI4h

    • Using your thumb and pointer finger, open the card/battery hatch by pressing the center button of the wheel and turning the entire wheel to the left.

    • When reassembling, you must turn this wheel to the right until it clicks.

  2. cI6sfrYbWBmSqwTv
    cI6sfrYbWBmSqwTv
    j5KCm6vri5qU6OYN

    • You should feel the door begin to loosen. Carefully pull the hatch open.

  3. JJcpmE4malbmhh3x

    • Push the yellow battery/charger compartment tab up using your thumb nail.

    This yellow tab spring broken, how I can repair

    Surendra kumar -

    From where I can get this yellow tab, and how I can replace

    Surendra kumar -

  4. uImQZfV6vxeMJoGr
    uImQZfV6vxeMJoGr
    E6yLMH3WYoQehFcD

    • After pressing the yellow tab, the battery should loosen.

    • Slowly pull the battery completely out.

  5. cNjaA3FSvKEuBrWV
    cNjaA3FSvKEuBrWV
    DFfRrlASEMIKM3Av

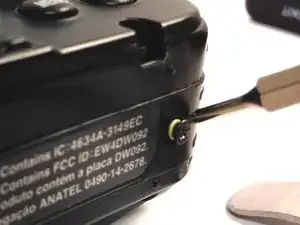

    • Using a Phillips #00 screwdriver, remove the 2, 4mm screws on the underside of the camera.

  6. u3J1EEGFwZRJWqiV

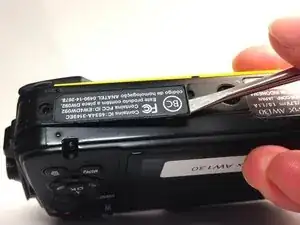

    • Using the metal spudger, carefully pry on the plastic plate.

    • The plastic plate should begin to loosen. Completely remove it from the camera body.

  7. WCNKGHUqmGauwWsx
    WCNKGHUqmGauwWsx
    4T6Hv6hTjjVvkkxu

    • Open the battery door. Near the hinge, a pair of screws should now be exposed.

    • Using a Phillips #00 screwdriver, remove the 2, 4mm screws.

  8. grPcJoy2yQPcL6ZT

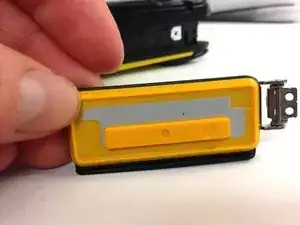

    • Pull the battery door away from the camera body.

Abschluss

To reassemble your device, follow these instructions in reverse order.
