Nikon Coolpix AW130 Map/Wi-Fi/Action Buttons Replacement

Geschrieben von: Lauren Stepp
  • Kommentare: 2
Nikon Coolpix AW130 Map/Wi-Fi/Action Buttons Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

10 Minuten

Einleitung

These three buttons supply the Nikon Coolpix AW130 with its supplementary features such as instantaneous sharing and location services. Nevertheless, they can become easily dirtied by underwater adventures and off-roading.

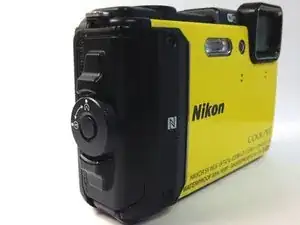

  1. umDn1gRfdGucQY2K
    umDn1gRfdGucQY2K
    NxSNFhVAn11yLI4h

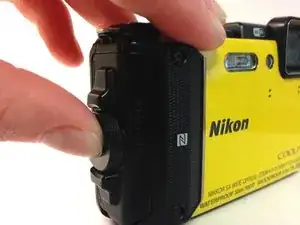

    • Using your thumb and pointer finger, open the card/battery hatch by pressing the center button of the wheel and turning the entire wheel to the left.

    • When reassembling, you must turn this wheel to the right until it clicks.

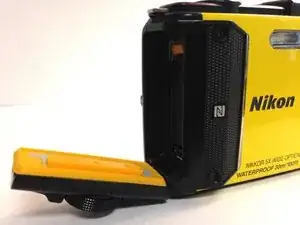

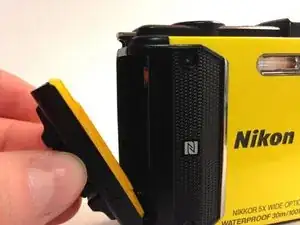

  2. cI6sfrYbWBmSqwTv
    cI6sfrYbWBmSqwTv
    j5KCm6vri5qU6OYN

    • You should feel the door begin to loosen. Carefully pull the hatch open.

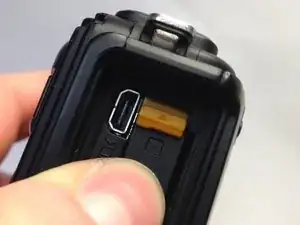

  3. JJcpmE4malbmhh3x

    • Push the yellow battery/charger compartment tab up using your thumb nail.

    This yellow tab spring broken, how I can repair

    Surendra kumar -

    From where I can get this yellow tab, and how I can replace

    Surendra kumar -

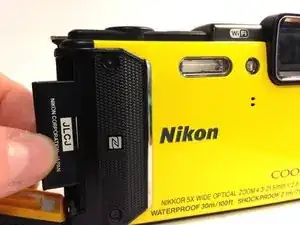

  4. uImQZfV6vxeMJoGr
    uImQZfV6vxeMJoGr
    E6yLMH3WYoQehFcD

    • After pressing the yellow tab, the battery should loosen.

    • Slowly pull the battery completely out.

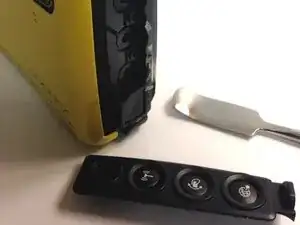

  5. KwasMNU2hac63aVZ
    KwasMNU2hac63aVZ
    EaT2KjXSd61xCqXq
    43vLYQrWhoZLw3ND

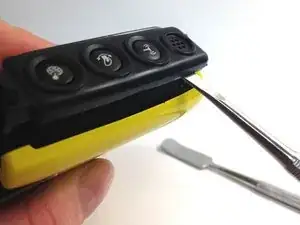

    • Using the spudger, pry the plastic button face from the camera body.

    • The sharp edges of the spudger could cut you or pierce an exposed battery.

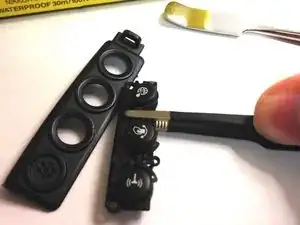

  6. ujZbXOkbFKCJjIAE

    • Using tweezers from the precision tweezer set, remove the buttons from the larger plastic piece.

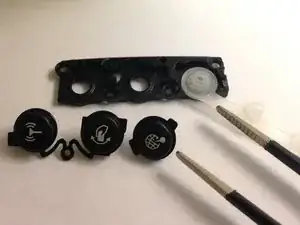

  7. AycZGKSafFs6ReEQ

    • Using tweezers from the precision tweezer set, remove the silicon backing from the buttons.

    • From there, the buttons should dislodge from their plastic casing.

Abschluss

To reassemble your device, follow these instructions in reverse order.
