Nikon Coolpix B700 Button Assembly Replacement

Geschrieben von: Carlos Salgado
  • Kommentare: 2
Nikon Coolpix B700 Button Assembly Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

25 Minuten

Einleitung

This guide shows how to replace the assembly of the shutter button/mode selector dial/buttons. This assembly can be replaced if any of the buttons malfunction or are faulty. The back cove and bracket need to be removed before removing the button assembly.

  1. FWwYIxPABwtRGjfr

    • Use the Phillips screwdriver to remove the two 5.5 mm screws on the left side of the camera.

  2. axZfFJwADD4MZZ13

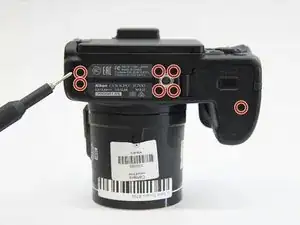

    • Use the Phillips screwdriver to remove seven 5.5 mm screws from the bottom of the camera.

  3. cKJZGZXOTjlQKgIH
    cKJZGZXOTjlQKgIH
    WUnBwFRwOgPcHTCP

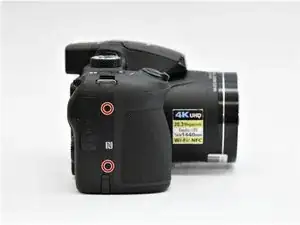

    • Use the Phillips screwdriver to remove the two 5.5mm screws on the right side of the camera.

    • Open the HDMI flap to remove a 5.5mm screw.

    • Don't forget to replace the hidden screw under the HDMI flap during reassembly.

  4. MQRUuyjmFIiosqel

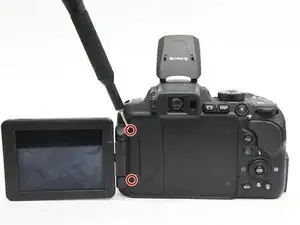

    • Use the Phillips screwdriver to remove the two 5.5mm screws under the LCD panel.

  5. NsJogSxYdUbp2SNi
    NsJogSxYdUbp2SNi
    NhZWMV6s1Y5ZPeok
    RXAgOIGGxOw6JOsT

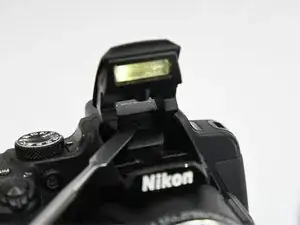

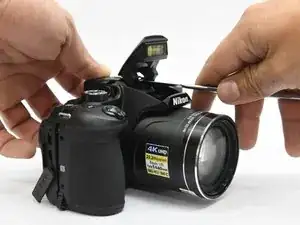

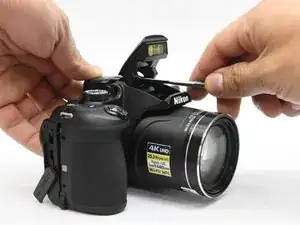

    • Open the flash assembly and insert the spudger into the slot under the flash unit and twist.

    • While twisting, pry apart the shell to split the camera in half.

    Here the HDMI cover also comes off by itself.

    Tim T -

  6. 4fjJEvEryguNeyHT

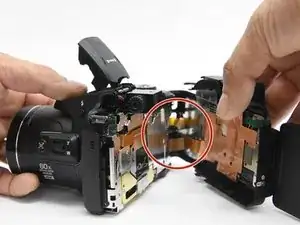

    • Be careful not to damage the ribbons that connect the halves together.

  7. X3RKYMpOOJPLHbFJ
    X3RKYMpOOJPLHbFJ
    DncgOUTfKghBKXXe

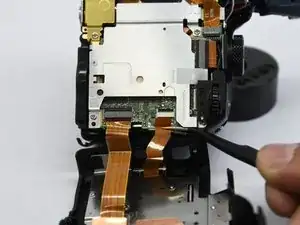

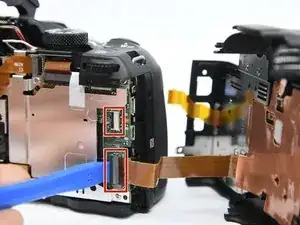

    • Place the pry tool under the black latch. Lift gently until the latch flips up.

    • Gently pull the ribbon away from the latch.

    • Be gentle when taking ribbons out and apart because they are fragile.

    How to check the rear part my b700 will turn ON when i disconected the 2 ribbons

    josesalgado74 -

  8. cXNPtuTyLTK6Eb6j

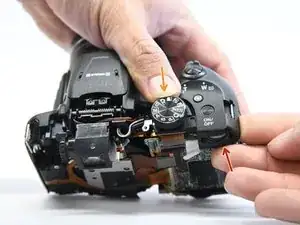

    • Lift the corner under the power button up.

    • While at the same time pushing the selector knob back.

  9. TeXpMF24kZuWWExu

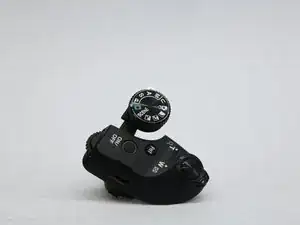

    • This should remove the entire assembly from the camera housing.

Abschluss

To reassemble your device, follow these instructions in reverse order.
