Nikon Coolpix E5700 Back Panel Replacement

Geschrieben von: Raana
  • Kommentare: 1
Nikon Coolpix E5700 Back Panel Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

10 - 15 Minuten

Einleitung

This guide will walk you through the necessary steps to remove the back panel of the Nikon Coolpix E5700.

  1. UQK4Vdjcvc5XLUoa
    UQK4Vdjcvc5XLUoa
    3b5CjNRG5OtWMcDQ

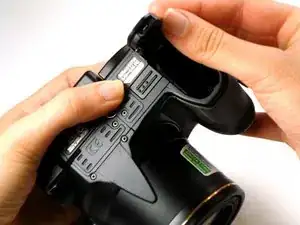

    • Use your finger tip to slide the battery release tab toward the battery symbol on the E5700.

    • Open the battery door.

  2. sOFeGFS2NEqvnIA1

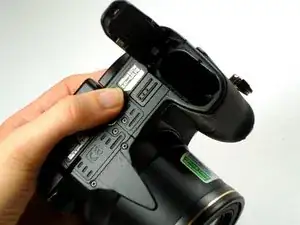

    • Pull the battery out of the E5700.

    • It may be necessary to wiggle the battery while pulling to free it from its pocket in the case.

  3. s15VGcyPKL6iG4gd

    • Turn to the bottom of the camera.

    • Remove the two Phillips screws located directly below the back monitor

  4. P5tsrcUmXhFJspaQ
    P5tsrcUmXhFJspaQ
    RmiOWTrrGPWWmfpf

    • Turn the camera to the side with the memory card slot and open the compartment for the CF card.

    • Remove the top two Phillips screws closest to the back panel.

  5. fWf1nW1oCuKUvOSW

    • Turn to the back of the camera.

    • Remove the top most Phillips screw on the back panel.

  6. syNZ31ZmWxZBpDda

    • Turn to the last side of the back panel.

    • Remove the Phillips screw below the eyepiece.

    • Remove the Phillips screw located above the speaker.

  7. or5jbBIT46Wa6TU2
    or5jbBIT46Wa6TU2
    hQoWhWkTymkvx41G

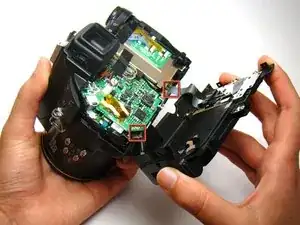

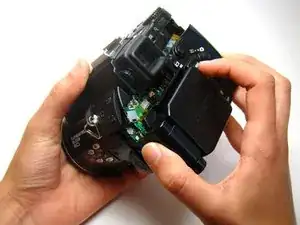

    • Gently begin to remove the back panel.

    • Caution: There are two bundles of wires connecting the back panel to the camera. Be sure not to pull too hard and yank these out.

    Before pulling the panel. You MUST remove first de rubber bumper ( arrond the ocular piece ).

    diego -

  8. aNkPCPKhR5id6q5e
    aNkPCPKhR5id6q5e
    SVJAhwm5uC3jqMcy

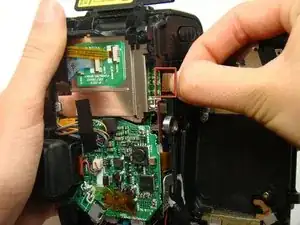

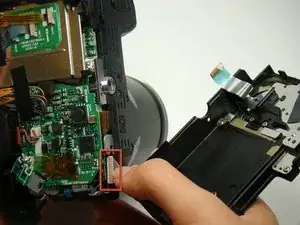

    • Now gently unplug the two wires at the bottom of the panel.

Abschluss

To reassemble your device, follow these instructions in reverse order.
