Nikon Coolpix E5700 Lens Piece Replacement

Geschrieben von: Kyle Sitton
  • Kommentare: 3
Nikon Coolpix E5700 Lens Piece Replacement

Schwierigkeitsgrad

Moderate

Schritte

26

Zeitaufwand

5 Minuten

Einleitung

This guide will walk you through the necessary steps to remove the lens peice in the Nikon Coolpix E5700.

  1. UQK4Vdjcvc5XLUoa
    UQK4Vdjcvc5XLUoa
    3b5CjNRG5OtWMcDQ

    • Use your finger tip to slide the battery release tab toward the battery symbol on the E5700.

    • Open the battery door.

  2. sOFeGFS2NEqvnIA1

    • Pull the battery out of the E5700.

    • It may be necessary to wiggle the battery while pulling to free it from its pocket in the case.

  3. s15VGcyPKL6iG4gd

    • Turn to the bottom of the camera.

    • Remove the two Phillips screws located directly below the back monitor

  4. P5tsrcUmXhFJspaQ
    P5tsrcUmXhFJspaQ
    RmiOWTrrGPWWmfpf

    • Turn the camera to the side with the memory card slot and open the compartment for the CF card.

    • Remove the top two Phillips screws closest to the back panel.

  5. fWf1nW1oCuKUvOSW

    • Turn to the back of the camera.

    • Remove the top most Phillips screw on the back panel.

  6. syNZ31ZmWxZBpDda

    • Turn to the last side of the back panel.

    • Remove the Phillips screw below the eyepiece.

    • Remove the Phillips screw located above the speaker.

  7. or5jbBIT46Wa6TU2
    or5jbBIT46Wa6TU2
    hQoWhWkTymkvx41G

    • Gently begin to remove the back panel.

    • Caution: There are two bundles of wires connecting the back panel to the camera. Be sure not to pull too hard and yank these out.

    Before pulling the panel. You MUST remove first de rubber bumper ( arrond the ocular piece ).

    diego -

  8. aNkPCPKhR5id6q5e
    aNkPCPKhR5id6q5e
    SVJAhwm5uC3jqMcy

    • Now gently unplug the two wires at the bottom of the panel.

  9. jBNXjTdOPqMyKxhF

    • Finish pulling away the back panel.

    • Turn the camera to its non-grip side.

    • Remove the Phillips screw located above the strap holder.

    So far I have come across 3 different types of screw , here is my tip as you retract the screws use tape to stick them to a piece of A4 or strip of paper labelling them as you go

    Brian Moss -

  10. MPExhdBy2wxmGDnd
    MPExhdBy2wxmGDnd
    ClZ1thHBW2WexIID

    • Open the CF card slot.

    • Remove the Phillips screw near the top of the camera.

  11. o3ARHuldidpoNeIU

    • Turn to the front of the camera.

    • Lift up the corner of the grip pad nearest to the flash bulb.

    • Remove the Phillips screw underneath the grip pad.

  12. GSAuDChDIHxI6eZj
    GSAuDChDIHxI6eZj
    cudCLwLrdjVQFFf1

    • Lift up the flash bulb container.

    • Remove the two Phillips screws located near the base of the section.

  13. SFNsEKfCDSWSDHJe
    SFNsEKfCDSWSDHJe
    enboMEKQR3xATQOf

    • Open the battery compartment.

    • Remove the Phillips screw located at the bottom of the battery compartment.

  14. TNADTcwAroOCbS1P

    • Begin to lift the top cover from the rest of the camera.

    • Be careful when doing this because many wires are connecting the top piece to the camera. Pulling too hard may pull these wires out.

  15. OewL56TdjlnimOjw

    • In order to pull the top panel without removing the flash unit. You must remove the flash top cover, taking away the screw under the bulb (see image). then gently remove the plastic top cover. IMPORTANT: discharge the condenser as soon as possible (the flash wires are now exposed, and dangerous ).

  16. A2OPDNye5F6eg4vG
    A2OPDNye5F6eg4vG
    ZBTfL5NARxAMN3cE

    • Unplug the orange ribbon wire from the back of the camera.

    • Unplug the two blue ribbon wires from the back of the camera.

  17. FCoC532PVSSIsAiD
    FCoC532PVSSIsAiD
    EdrIOTMUsYPqJHyl

    • Remove the Phillips screws on both sides of the flash bulb mount.

  18. IwMHoE2n6qlJHvL3
    IwMHoE2n6qlJHvL3
    BjE5yCAppqfxOL5h

    • Lift the top panel up and pull the flash bulb housing away from the rest of the top panel.

    • Note: The top panel will be difficult to separate from the flash bulb housing. Place your hands as shown in the picture and push upward with your thumb while holding the flash bulb housing stationary

  19. 5AFoWRKmaOcdbUVj

    • Unplug the orange ribbon and the other wires and finish carefully removing the top panel.

  20. tuNiWy2lrdiVSpRF

    • Remove all four of the screws on the bottom of the camera.

  21. cTGnv4v3qrcPNjoZ

    • Remove the two Phillips screws located underneath the CF card cover.

  22. NqDorQV1IQAWjQy1

    • Remove the two screws on the left side of the camera.

  23. KAAlhcboYO2dyBRE
    KAAlhcboYO2dyBRE
    uDnYrkWpRIjdL2yW

    • Unplug the blue and grey set of wires near the top of the grip.

    • Unplug the blue ribbon wire located at the bottom-left side of the camera.

  24. RY4UVXj4oriIPPva
    RY4UVXj4oriIPPva
    oCgejLAOvWlEtVKk
    G3BskCDBkYZY2m5M

    • Remove the front cover slowly.

    • Be sure that the front cover is not attached to anything or caught on anything when pulling it away from the rest of the camera.

  25. MYyKEHhAT13cHADS
    MYyKEHhAT13cHADS
    F1LZ2qJsRGRGCVLp

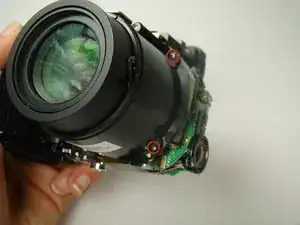

    • Remove the four black screws at the corners of the lens housing.

  26. CFhHjlgoQDEA5M3A
    CFhHjlgoQDEA5M3A
    PVWaHHDJObyYIAuD

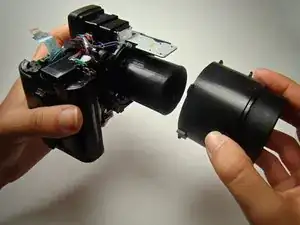

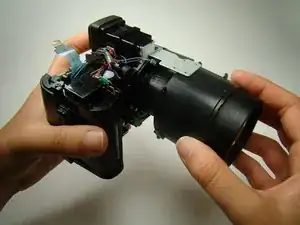

    • Remove the lens case and the lens.

Abschluss

To reassemble your device, follow these instructions in reverse order.
