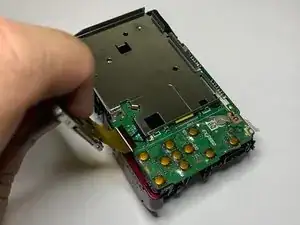

If your Nikon COOLPIX L27 screen does not turn on or is damaged, you can use this guide to replace the screen.
The screen is a vital part of the camera, it shows a preview of images and allows easy access to them. A faulty or damaged screen greatly hinders the usability of the camera. A simple repair such as this can extend the life of the camera to be used again or repurposed.
Before starting the repair, test your camera to see if it still turns on with a new pair of batteries to make sure that the screen is the only fix needed.
Werkzeuge
-
-

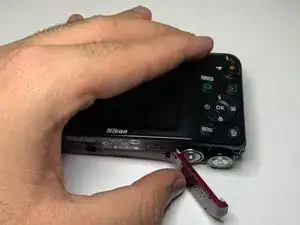

Undo the latch at the bottom of the camera by pushing it to the side
-

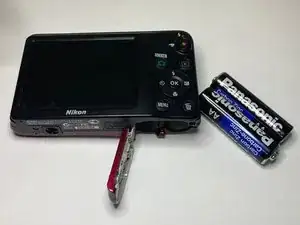

Remove the batteries (and memory card if applicable)
-
-
-

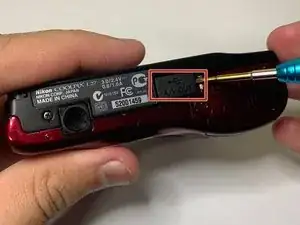

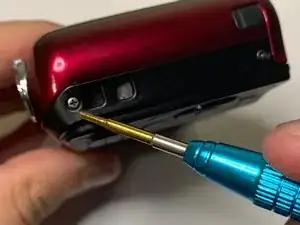

Lift the cover labeled "A/V OUT" to expose a hidden screw.
-

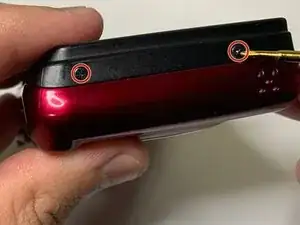

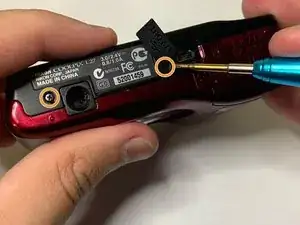

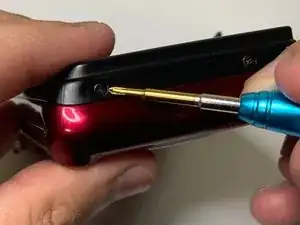

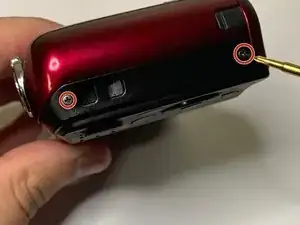

Remove two 5 mm Phillips #000 screws from the bottom of the camera.
-
-
-

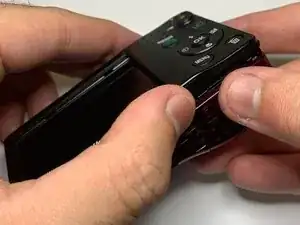

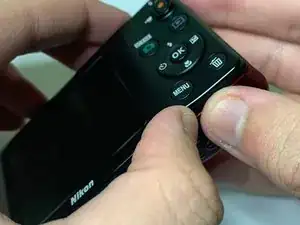

Carefully pry the back cover starting from the battery latch.
-

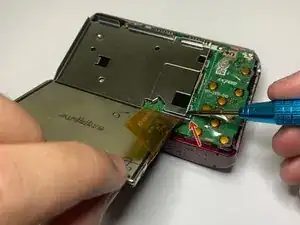

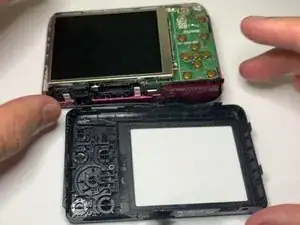

Once all sides are loose, lift the back cover up and off.
-
To reassemble your device, follow these instructions in reverse order.
