Nikon Coolpix L330 LCD Screen Replacement

Geschrieben von: Rajeev
  • Kommentare: 2
Nikon Coolpix L330 LCD Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

15 - 20 Minuten

Einleitung

This guide will show you how to access the LCD screen to replace it, or simply clean dust from under the clear plastic cover.

  1. mlISKwgu3mjryn6P
    mlISKwgu3mjryn6P
    1JTPlSUGwCV3jDEd
    RudC4ASCMHyGxVEL

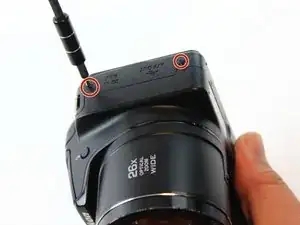

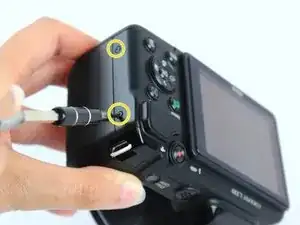

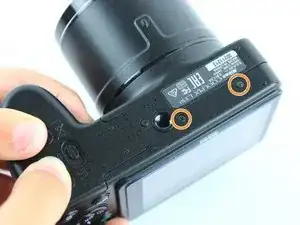

    • There are six screws attaching the back housing to the camera. Remove the screws from the body with a PH000 screw head.

    • Two 1.5x2.5mm screws on the right side.

    • Two 1.5x2.5mm screws on the underside.

    • Two 1.5x2.5mm screw on the left side.

  2. yaW3OYWKDRTxQcUW
    yaW3OYWKDRTxQcUW
    PSDujxKmMkFQBSYo

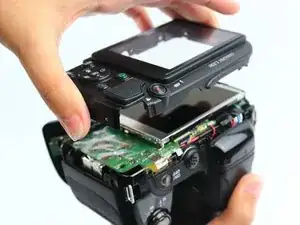

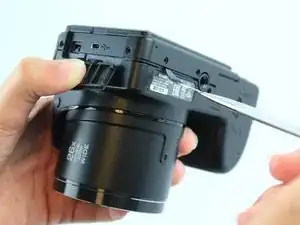

    • After removing the screws, use a metal spudger or plastic opening tool to push the back cover out.

    • The metal spudger can damage the plastic housing, so use caution when applying any pressure to it. Use a plastic opening tool to reduce the risk of damage to the housing.

    • Remove the back housing of the camera by lifting it directly up.

    • The back cover may be slightly tight, therefore more force may be needed to lift it up.

    Note:

    There are 3 locking cam-lugs along the top edge of the back plate. These slot over the top of matching very delicate moulded catches. Carefully lift and lever this top edge first.

    Chris Balchin -

  3. n4PfUV43DA2vm2Lm
    n4PfUV43DA2vm2Lm
    1RPtMJJ5oShvYG5N

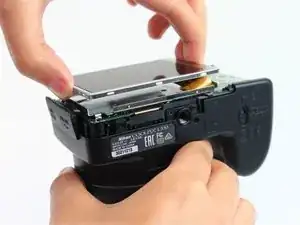

    • Insert the tips of your fingers into the space between the screen and back-plate.

    • Gently lift the screen up and out of the frame.

    • The screen is still held by a flexible display cable, therefore only lift the screen 0.5'' out of the back-plate.

  4. 1KCQIJKTxGFi2HoL
    1KCQIJKTxGFi2HoL
    LnQWT3Nm6TmQpvPd

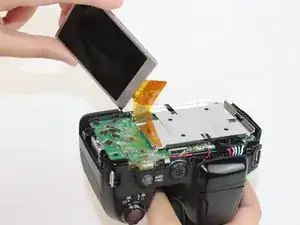

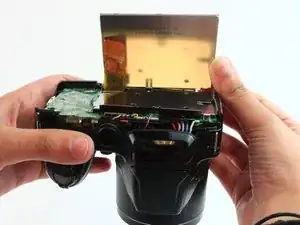

    • Tilt the screen so that the display cable forms a hinge with the backplate.

    • Rotate the display 180 degrees so that it faces you.

  5. mOVAhaVERGGGHnru
    mOVAhaVERGGGHnru
    gfwZEgVdBsgTQRMZ
    Dwu1IIGQCFFsPOBD

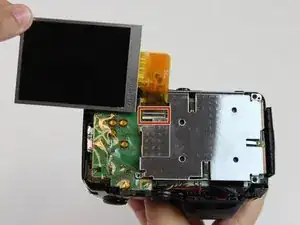

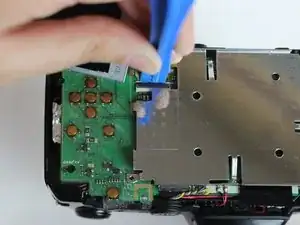

    • The display cable has a ZIF (zero insertion force) connector on the end. This has a tab that has to be pushed out before the cable can be safely removed.

    • Using a plastic opening tool or fingernail, pop up the black clip holding the display cable. This will release the cable.

    • Slide the display cable out of the connector.

    • The display cable can be damaged due to excessive bending, therefore avoid putting unnecessary strain on it.

Abschluss

To reassemble your device, follow these instructions in reverse order.
