Einleitung

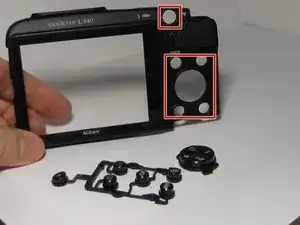

This guide is meant to help the user replace the buttons on the back of the camera after they remove the back panel. This could be to fix a jammed button or simply replace the part as you wish. The only required tool for this process would be a 5mm Phillips Head number #000 screwdriver.
Werkzeuge
-
-

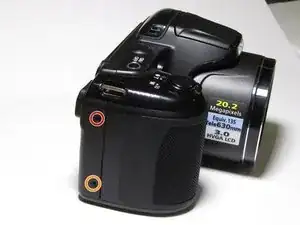

Remove the 5 mm Phillips #000 screw located on the upper left side of the camera
-
Remove the 5 mm Phillips #000 screw located on the lower left side of the camera
-
-
-
Remove the 5 mm Phillips #000 screw from the upper right side of the camera.
-
Remove the 5 mm Phillips #000 screw from the lower right side of the camera.
-
-
-

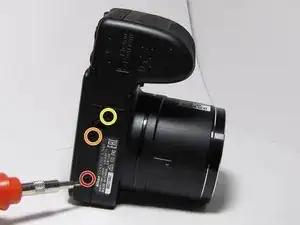

Remove the 5 mm Phillips #000 screw from the bottom left of the camera.
-
Remove the 5 mm Phillips #000 screw from the left-center of the bottom of the camera.
-
Remove the 5 mm Phillips #000 screw from the center of the bottom of the camera.
-

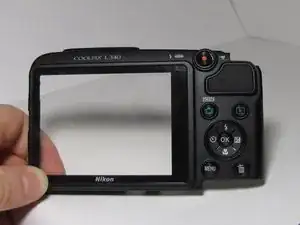

To reassemble your device, follow these instructions in reverse order.
