Nikon Coolpix L610 Power/Shutter Button Assembly Replacement

Geschrieben von: Alex Miragliotta
  • Kommentare: 0
Nikon Coolpix L610 Power/Shutter Button Assembly Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

30 - 45 Minuten

Einleitung

This is a guide to remove the power button. It is a simple task that can be done after removing the outer case of the camera.

  1. bQdOfLaFJEBQrTeO
    bQdOfLaFJEBQrTeO
    IrB6BnHkCBDxACXI

    • Remove the four (3.20 mm) Phillips #00 screws at the bottom of the device.

  2. rlNnNGOetPmsJObk

    • Remove the top (4.10 mm) Phillips #00 screw adjacent to the battery compartment.

    • Remove the bottom (3.20 mm) Phillips #00 screw adjacent to the battery compartment.

  3. YUhZ1uDLKdAfXIJt

    • Remove the top (4.20 mm) Phillips #00 screw adjacent to the mic side of the camera and opposite the battery side.

    • Remove the lower (3.20 mm) Phillips #00 screw adjacent to the mic side of the camera and opposite of the battery side.

  4. UNXERoYNjQDIeYVK
    UNXERoYNjQDIeYVK
    wvZwcZtviKhCoXPU
    23IUpxTq2DBTDWhR

    • Separate the case using the plastic prying tool. This can be done by placing the tool in the position that is shown and in the position on the left side of the camera.

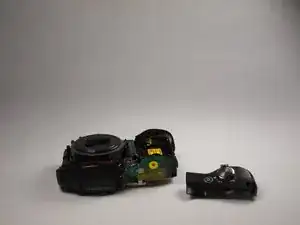

  5. KD3iRABUDofNvAZN

    • Remove the panel containing the power and shutter button.

Abschluss

To reassemble your device, follow these instructions in reverse order.
