Nikon Coolpix L810 Flash Replacement

Geschrieben von: Emilio Mena
  • Kommentare: 4
Nikon Coolpix L810 Flash Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

10 Minuten

Einleitung

Is your flash not lighting up? This guide will show you how to replace the flash from your camera.

  1. 1YaTxSLe4ZvjlILF

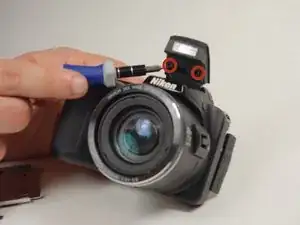

    • Remove two 5 mm Phillips #000 screws below the flash component.

    • In order to complete this step the flash must be open. To open the flash press the button located above the lens on the leftward side of the camera.

  2. AMHXneNe3vxaUBTa

    • Use blue plastic opening tool to pry open the casing for the flash.

  3. hARwiDiP4CrXBjLs

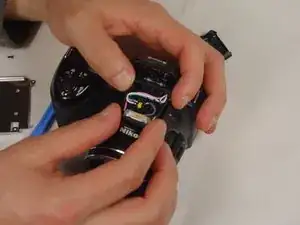

    • Remove the plastic casing surrounding the flash.

  4. JYQKcDNHoicMJHHe
    JYQKcDNHoicMJHHe
    5LNEdxvEDLHfRNWq

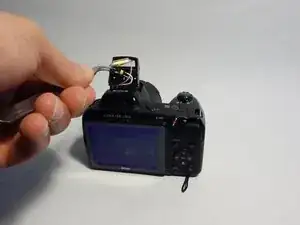

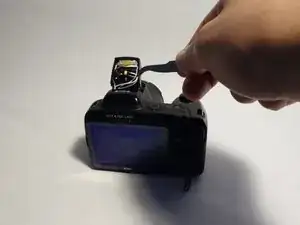

    • Pull the wires connecting the flash out of the camera.

  5. w544UBBucUKVxcKT
    w544UBBucUKVxcKT
    LdP3hrJCjfpgwNvJ
    r2mtx6BcH5fGL1Vy

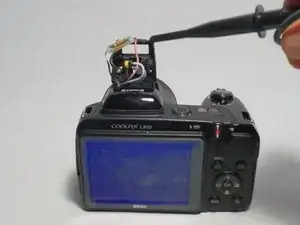

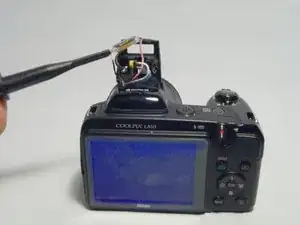

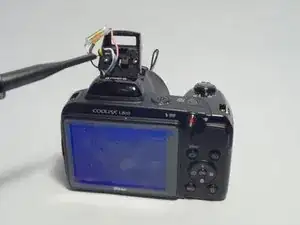

    • Unsolder the wires that connect the flash component.

Abschluss

To reassemble your device, follow these instructions in reverse order.
