Nikon Coolpix L810 Motherboard Replacement

Geschrieben von: Emilio Mena
  • Kommentare: 5
Nikon Coolpix L810 Motherboard Replacement

Schwierigkeitsgrad

Difficult

Schritte

12

Zeitaufwand

20 - 25 Minuten

Einleitung

The motherboard is what makes the camera work. If your camera stops working, follow this guide to replace the motherboard.

  1. 66wnAWdI2InEfmyC
    66wnAWdI2InEfmyC
    KnhIiAujCAir1IMD

    • Remove two 5 mm Phillips #000 screws on the right hand side of the camera located near the power button.

    • Use of precision tweezers to help remove loosened screws is suggested.

  2. 3xHBlhStu54onrFo
    3xHBlhStu54onrFo
    GPxLQIZHPBiWwK3L

    • Remove two 5 mm Phillips #000 screws near the audio/video inputs on the opposite side near the flash component.

  3. pZsWkLObHqFKuwVL
    pZsWkLObHqFKuwVL
    nXQEUmU5VkhLo2lf

    • Remove three 5 mm Phillips #000 screws on the bottom end of the camera.

  4. cSZYL1LWCgC4bkvW

    • Carefully detach the back side of the camera by lifting both ends, with moderate force wobble until loosened enough to remove.

  5. qGorNpl2jspRIbF1
    qGorNpl2jspRIbF1
    ADWg3XmPiuIqUdtV

    • With the LCD screen facing towards you, flip the screen to the right.

  6. 3wGlcqqQ1FhCV1u3
    3wGlcqqQ1FhCV1u3
    J3audsEQZJBD5SLk
    fnQ32kEQpvHico22

    • Remove three 5 mm Phillips #000 screws located on the bracket.

    • Hold the camera with the lens facing downward to prevent the bracket from falling off once all screws are removed.

  7. rbTvnBkX4tVfiFqn
    rbTvnBkX4tVfiFqn
    GjwXJhkZaaSjNCYU

    • Disconnect the ribbons that connect the LCD screen to the camera gently using precision tweezers or fingers.

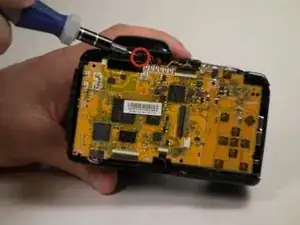

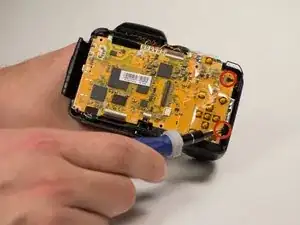

  8. KnIFiFXJ5VcpXwdI
    KnIFiFXJ5VcpXwdI
    1hhTIRAQTqxiQrVX
    GVoJ5S52DNIaknZY

    • Remove three 5 mm Phillips #000 screws bordering the motherboard.

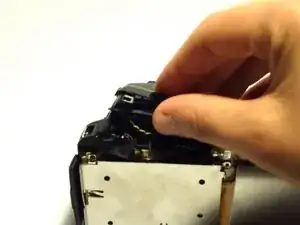

  9. 1RWQHp5BUdDFffkX

    • Remove the plastic component located directly behind the flash from its rubberized holder.

  10. ZSOLbVQwpVDXgX4m

    • Remove the electric tape covering the wires.

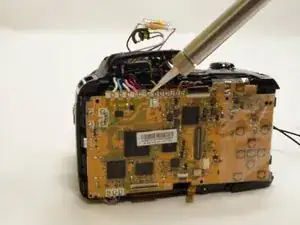

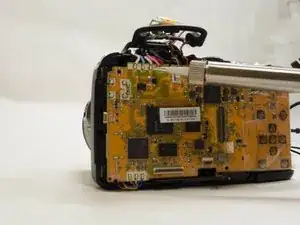

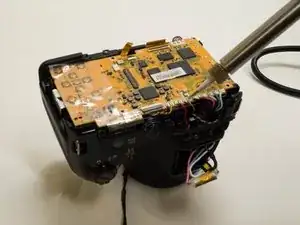

  11. OqgIInnDgvXwjfYl
    OqgIInnDgvXwjfYl
    AvIrlbMLSRMHVD6I
    GWxN6jBBRkWynxMa

    • Unsolder all the wires that are on the top of the motherboard near the flash component.

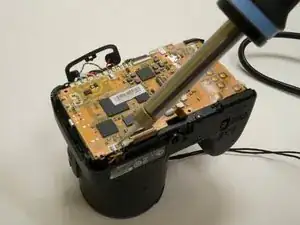

  12. LxEp5LqgilWPwEx3

    • Unsolder the wires on the bottom end of the motherboard.

    left out how to get screw out by power button so can pull board off. not seeing a way to ?

    jon baker -

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Emilio Mena

Mitglied seit: 15/01/15

725 Reputation

4 Kommentare

The guide is incomplete! Do not try to remove the mobo for it is soldered to some other tiny board under the on/off switch. Trying to remove the mobo after just unscrewing it, may guide to certain and permanent destruction of both PCBs!!!

symeonleriou -

any clue how to get tiny mobo out with mobo after taking screw out of tiny one at on/off switch?

jon baker -

This guide should be for beginners, Mr. Symeon Leriou, and you will not only write "Mobo", but also motherboard or Mainboard or Hauptplatine (deutsch)

But I agree with you that it is not complete.

The motherboard is soldered to the on / off board (power supply for the batteries).

Soldering again is almost impossible ...

lothar4460 -

Exactly! The guide is GOOD but it is incomplete!

The solder removal is insufficient to release de motherboard.

How to do it?

ramos.eng -
