Einleitung
The shutter is a very important part of the camera because without it you can't take pictures. This guide will give you the steps to access this button and replace this button.
Werkzeuge
-
-
Use a Phillips #0 screwdriver to remove the screws on the front casing. There are ten screws, three on the left side, two on the bottom, and one on the right side of the camera.
-
-
-
Remove the front top Phillips screw with the screwdriver.
-
Open the empty battery slot on the bottom of the camera, revealing four additional screws.
-
Unscrew the four Phillips screws with the screwdriver.
-
-
-
Using the spudger, move around the casing, carefully separating the rear housing from the camera assembly.
-
Once the rear housing is separated, the settings buttons will be accessible for replacement.
-
-
-

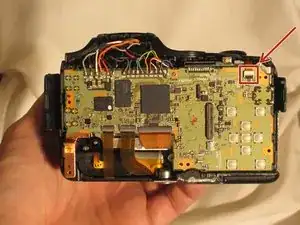

Remove these five Phillips screws, from the back of the camera, with the Phillips screwdriver.
-
-
-

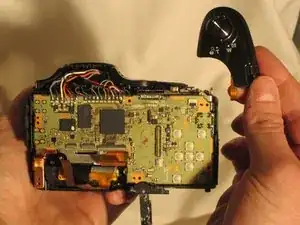

Using the pointed edge of the spudger, lift the hinge that secures this flex circuit. This will unfasten the flexible ribbon wire.
-
-
-

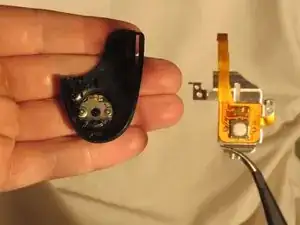

Remove the metal cover using tweezers to allow access to the shutter button.
-
Replace shutter button.
-
To reassemble your device, follow these instructions in reverse order.
