Nikon Coolpix L830 LCD Monitor Connecting Arm Replacement

Geschrieben von: Alex Delony
  • Kommentare: 0
Nikon Coolpix L830 LCD Monitor Connecting Arm Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

15 Minuten

Einleitung

This guide describes the steps necessary to remove and replace the LCD Monitor Connecting Arm of a Nikon Coolpix L830 camera.

  1. OhpjvHLbJiQRITZR

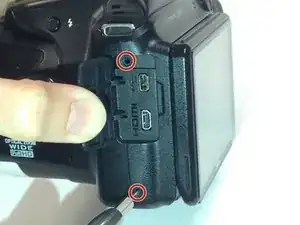

    • Use a Phillips #000 screwdriver to unscrew the two 3.0mm Phillips screws located on the side of the camera with the HDMI port.

    • The HDMI port side will be on the left if you are looking at the back of the camera with the LCD monitor.

    • One screw is located under the gray flap.

  2. TFL1IHHL5ZEfKL2x

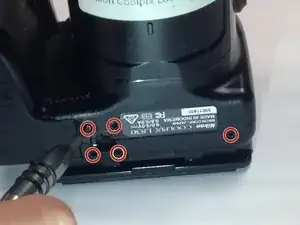

    • Unscrew the five 3.0mm Phillips #000 screws that are located on the bottom side of the camera.

  3. o1U4HUYjYVApBiTw

    • Unscrew the 4.0mm Phillips #000 screw located underneath the grey flap on the side of the camera with the "DC IN 5.0 V" marker.

    • This will be on the right if you are looking at the back LCD monitor side.

    • Unscrew the exposed 3.0mm Phillips #000 screw on the same side.

  4. u6gjAAylPoX4llJA

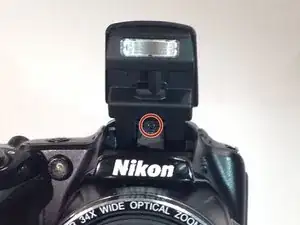

    • Press the flash button to open the flash component.

    • Remove the 3.0mm Phillips #000 screw located directly in-between the two arms.

  5. idGMMqFXZX5SoDy5

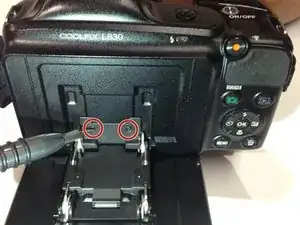

    • Open the LCD monitor to reveal two 2.0mm Phillips screws.

    • Remove the 2.0mm Phillips #000 screws.

  6. D5NfapIyPNHHomHH
    D5NfapIyPNHHomHH
    TsPZeKJVXAo1YP6K

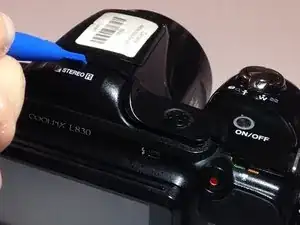

    • Make sure to open the plastic grey flaps on either side of the camera before proceeding with this step.

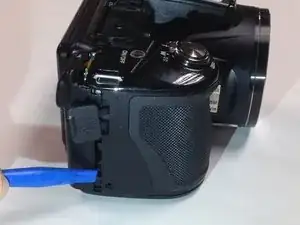

    • Insert a plastic opening tool between the back and front surface components of the camera.

    • Wiggle the plastic opening tool backwards and forwards along the top edge until the back surface comes off.

    • Remove the back casing gently to not damage the LCD ribbon connector or inner camera components.

  7. SOKJpfMUmZKBZlSY
    SOKJpfMUmZKBZlSY
    w6ACHxPIQGmIpVIK

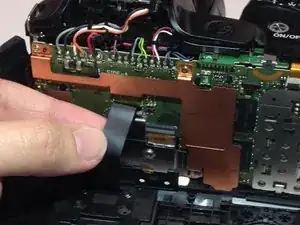

    • Gently pull the LCD ribbon connector up to allow the back casing to be completely removed.

  8. jUxxwrGkdxpXeIyd

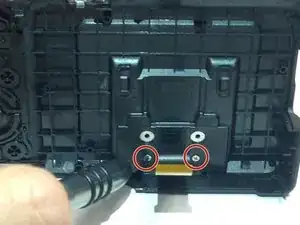

    • On the inside of the back cover, remove the two 2.0mm Phillips screws surrounding the connecting cable.

  9. 4YpeaDl4iW6cmAbn

    • Gently pull the ribbon connector in order to remove the complete LCD Monitor Connecting Arm.

Abschluss

To reassemble your device, follow these instructions in reverse order.
