Nikon Coolpix L830 LCD Monitor Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

20 Minuten

Einleitung

If the LCD monitor on your Nikon Coolpix L830 is corrupted or completely blank, replacement is necessary. Following these steps will allow you to replace the broken screen with a new one to allow complete monitor functionality to return.

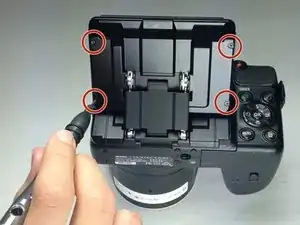

  1. yJZYy6VapXCmMJFd

    • Use a Phillips head P000 screwdriver to remove the four 3.0 mm Phillips screws on the back of the monitor.

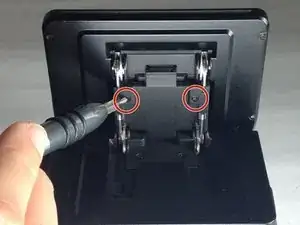

  2. qtBerJEIKebgf1Qw

    • Use a Phillips head P000 screwdriver to remove the two 3.0 mm Phillips screws on the hinge cover.

  3. KZ5R5ZnyUFZMjDBc
    KZ5R5ZnyUFZMjDBc

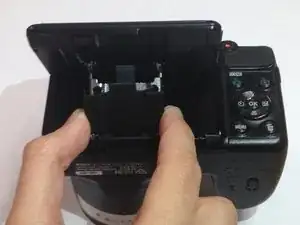

    15MispZG2BhMlVSm

    • Remove the top hinge cover.

    • The top hinge cover contains screw holes.

    • Remove the bottom hinge cover.

    • The bottom hinge cover contains no screw holes.

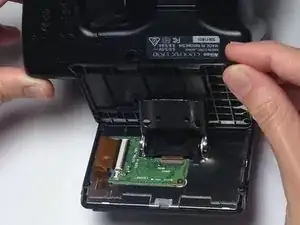

  4. lCWTbxuqiLOBqEwF

    • Remove the back cover of the LCD monitor with your hands or a plastic opening tool.

    • The cover will slide down the hinge, but it will not be completely removed.

  5. AVStOTmWkHoOiGDt
    AVStOTmWkHoOiGDt
    wby1OPHjITnCXj1E

    • Use your thumb to gently pull the small flex ribbon wire connector from its socket.

    • Use your thumb to gently pull the wide flex ribbon wire connector from its socket.

  6. WZSMVh1abX5nSF4n

    • Use a plastic opening tool to remove the front cover of the LCD monitor, allowing the monitor to be completely be released.

  7. EluKBGSJqJKqOZxw

    • Gently remove the old, damaged LCD monitor.

Abschluss

To reassemble your device, follow these instructions in reverse order.
