Einleitung
This guide outlines the steps required to replace the LCD screen. Some parts can be delicate, so care is required when handling this replacement.
Werkzeuge
-
-

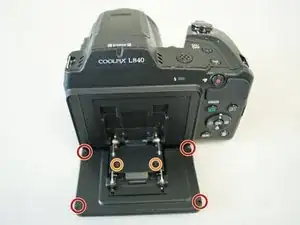

Unscrew the four black, 4mm Phillip #000 screws on the corners of the back case of the screen.
-
Unscrew the two black, 2mm Phillips #000 screws on the case of the hinge. (The hinge connects the screen to the body of the camera.)
-
-
-

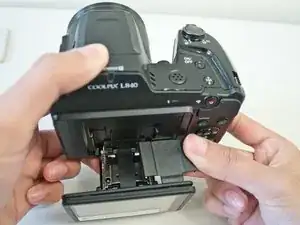

Remove the top-half case of the hinge by lifting it off.
-

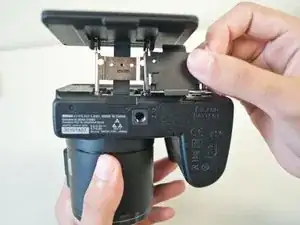

Remove the bottom-half case of the hinge by lifting it off.
-
-
-

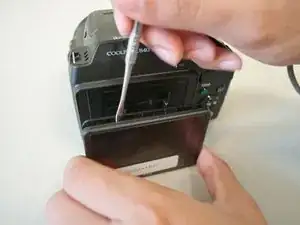

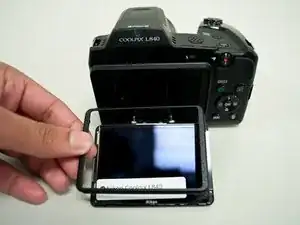

Pry the back case off of the screen with a metal spludger by slipping the spludger in between the front and back halves of the screen's case and wiggling the spludger forwards and backwards.
-
To reassemble your device, follow these instructions in reverse order.
