Nikon Coolpix P90 LCD Screen Replacement

Geschrieben von: Elizabeth Kamine
  • Kommentare: 5
Nikon Coolpix P90 LCD Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

15 - 30 Minuten

Einleitung

Note that the LCD screen display and the glass screen are separate parts.

  1. GaNjCywCCfSU42BG
    GaNjCywCCfSU42BG
    A6KeKvuwoY24U4YF
    uxQT22I3SgPiEDPL

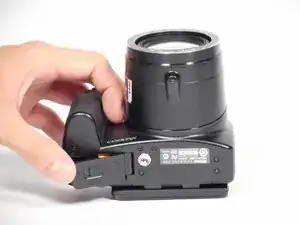

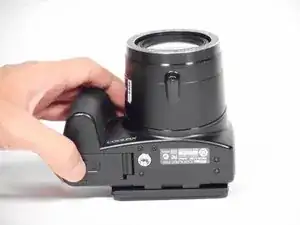

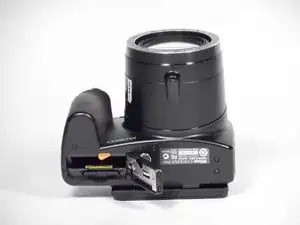

    • Use your finger to push the notch of the compartment door to the center of the camera body.

    • Release the compartment door, and it will swing open.

    • Remove the existing battery with your fingers.

  2. ykfviqMrhphBFQMd
    ykfviqMrhphBFQMd
    VqpnKy4SIAuDhN2g
    RH3KpDXV4yoLbgST

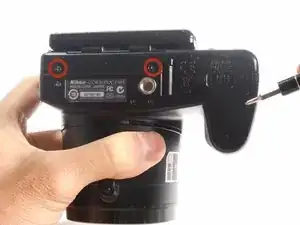

    • Use a Phillips #000 Precision Screwdriver for all of the following steps.

    • Remove both 4.5 mm screws holding the bottom into place.

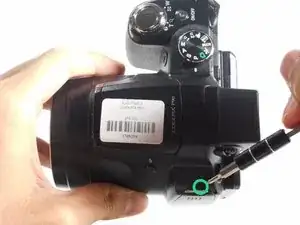

    • Remove both 4.5 mm screws holding the side into place.

    • Remove the 4.5 mm screw underneath the A/V flap.

    • Remove the 4.0 mm screw on the left-side wrist strap loop.

  3. YOPCFcK1fjigqeWI
    YOPCFcK1fjigqeWI
    cQtoQWoYPovkodTy

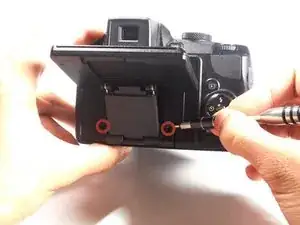

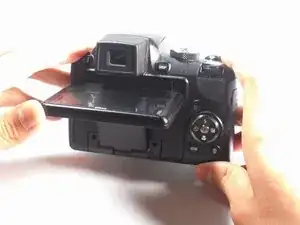

    • Lift up the LCD screen to reveal the two screws.

    • Using a Phillips #000 Precision Screwdriver, remove the two 3.0 mm screws that hold the arm in place.

    Before I could remove the back from my camera, I also had to remove a small screw under the pop-up flash head, near the left hinge looking at the camera from the front.

    Dennis -

  4. EvWwrAbPEa13D6Jb

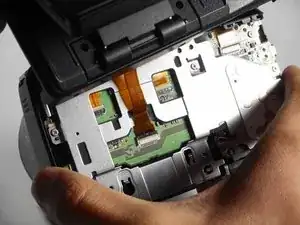

    • Carefully lift the back cover from the camera.

    • Do NOT completely remove the back cover from the camera yet. There is a data transfer ribbon connecting the LCD screen to the motherboard.

  5. L1eRCfTCQjPV23GU
    L1eRCfTCQjPV23GU
    oIFIjmHxM3ly6Mvs

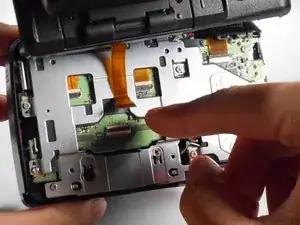

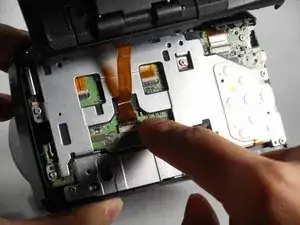

    • Press your finger on the top of the latch and pull it down and towards you to open the safety latch and free the ribbon.

    • Be careful when removing the safety latch as it is fragile and may break easily.

    • Slide the ribbon out from its socket.

    • It is now safe to completely remove the back cover from the camera.

  6. 1Yyx4X1FI6oVtDRB

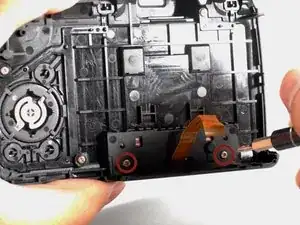

    • Using a Phillips #000 Precision Screwdriver, remove the two 6.0 mm screws from the inner back panel that hold the LCD screen arm in place.

  7. CqcMcj6bLeFU3mSE
    CqcMcj6bLeFU3mSE
    KoVKTXYUeE6CNv1H
    ZVtyJLCIH32XOXAK

    • Using a Phillips #000 Precision Screwdriver, remove the two 3.0 mm screws.

    • Remove the plastic cover from the LCD screen arm.

  8. WrvADjpdpJx46NoO
    WrvADjpdpJx46NoO
    SQTFFlarWdTKoZXT
    srEXJVTpMcJ45q1o

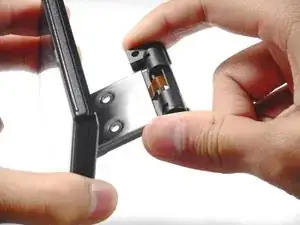

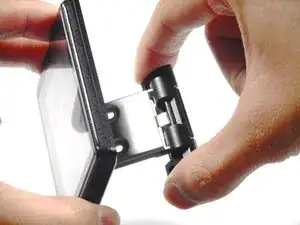

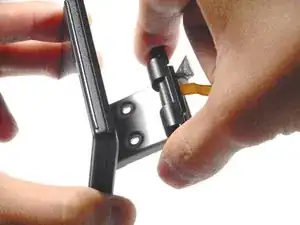

    • Lift and rotate the plastic connector counter-clockwise, clockwise, then counter-clockwise again.

    • Remove the plastic connector from the LCD screen arm.

  9. VRRgMYY2vYdGvwE5
    VRRgMYY2vYdGvwE5
    2MUojTMJOVUxwg5g

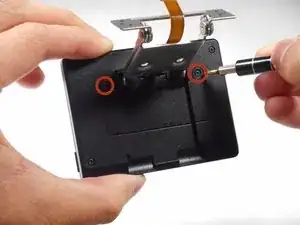

    • Using a Phillips #000 Precision Screwdriver, remove the two 4.0 mm screws.

    • Take off the plastic covering to reveal the inner components of the LCD screen.

  10. mESPFBaqGZEkpnvp
    mESPFBaqGZEkpnvp
    xvpP5BQj5NMnCxuZ

    • Using a Phillips #000 Precision Screwdriver, remove the four 3.0 mm screws.

    • Using your fingers, remove the two plastic borders that case the LCD screen.

    • A plastic opening tool is not necessary, but may be helpful.

  11. 1BunuNun4cuG5VOE
    1BunuNun4cuG5VOE
    qR4wBWOEOhVWfuxr

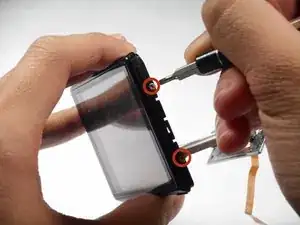

    • Using a Phillips #000 Precision Screwdriver, remove both 3.5 mm screws from either side of the LCD screen.

    • Remove the LCD screen from the screen cover.

Abschluss

To reassemble your device, follow these instructions in reverse order.
