Nikon Coolpix S210 LCD screen Replacement

Geschrieben von: Mallory Arend
  • Kommentare: 2
Nikon Coolpix S210 LCD screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

Keine Schätzung

Einleitung

You will be removing the back casing of the camera. You will need a Phillips #00 screwdriver and a spudger. You will then be directed to remove screws.

  1. VlaTVDBeSWO5nUEU

    • Place thumb on the battery cover panel on the bottom of the device.

    • Slide the panel to the right away from the camera.

  2. kLAvMToisuyKcr5h
    kLAvMToisuyKcr5h
    JhXnwcLTZanpyNmY

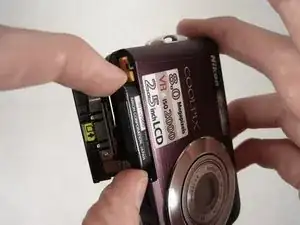

    • Slide the orange latch outward towards the corner of the camera.

    • The battery should pop out.

    • Remove the battery and reattach the cover.

    Thank You!!! Amazing how easily I can complicate anything!! You are my hero. Retro picture taking ~ here I come!!

    Jennifer Curran -

  3. glb6PBRfrELoRhub

    • After removing the battery, unscrew the four 3.10mm screws on the side opposite the buttons.

  4. OhxSUOVOI5pwS1tq

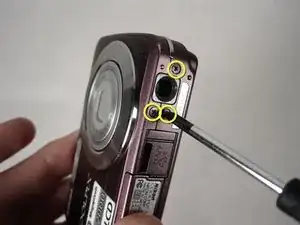

    • Unscrew the three 4.05mm screws on the bottom of the camera below the lens.

  5. cn6ELNUpAUQNqr3J

    • Unscrew the two 4.05mm screws on the side next to the buttons.

  6. KUVjspAKon2AdeJk
    KUVjspAKon2AdeJk
    Z4yu6yrfBbN1di5O

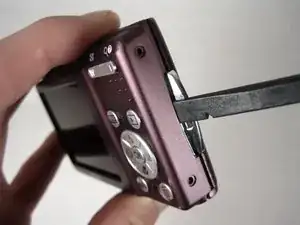

    • Gently wedge the flat end of the spudger between the back case and the wrist-strap mount.

    • The wrist-strap mount is the thin metal piece on the side of the camera. Your camera may have the wrist-strap attached, but you will not need to remove it to continue.

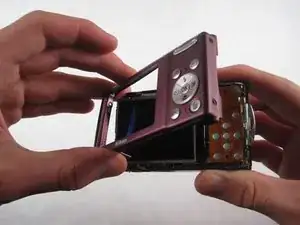

    • Carefully pry the back case away from the camera and then gently lift it off.

  7. LAIiyfaUvafl2CY2
    LAIiyfaUvafl2CY2
    VFhKTRggeEFxvAFc
    Gbaei6euTffJ6tKg

    • Having removed the back case, the LCD screen should be sitting loosely on the camera, attached only by a wide ribbon and a narrow ribbon.

    • The ribbons are connected to and held in place by small plastic latches.

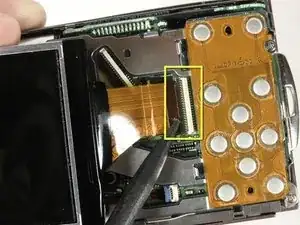

    • To remove the wide ribbon, gently pry the spudger underneath the black plastic latch where the ribbon connects and lift up. The ribbon should slide out easily.

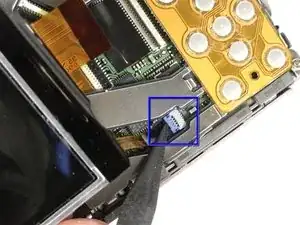

    • Repeat the same process with the smaller ribbon, this time looking for a light blue latch.

  8. kgssGrSajCuE43Dx

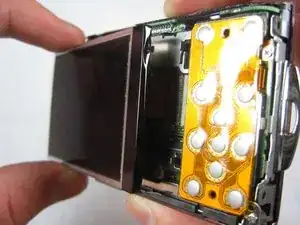

    • Gently remove the LCD screen.

Abschluss

To reassemble your device, follow these instructions in reverse order.
