Einleitung
When you are in a situation whether your LCD screen is malfunctioning, this guide will assist you to find the problem.
Werkzeuge
-
-
Remove 8-2.46 mm screws from both sides and bottom of camera using a #000 Phillips screwdriver.
-

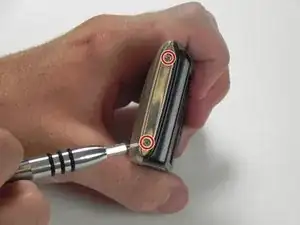

Remove 2 screws from left side. (picture 1)
-

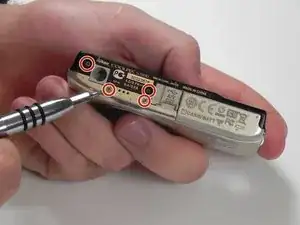

Remove 4 screws from bottom. (picture 2)
-
Remove 2 screws from right side. (picture 3)
-
-
-

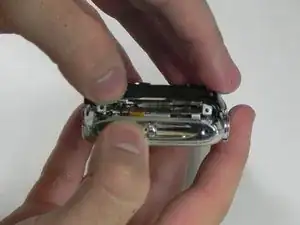

Remove black cover pulling up with left thumb. Hold silver cover with right thumb.
-

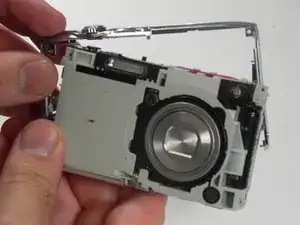

Remove silver cover lifting up with left thumb. Hold the camera with right thumb.
-
-
-

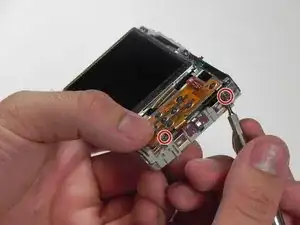

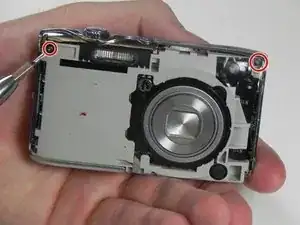

Remove 2-2.10mm screws in the front of the camera using a #000 Phillips screwdriver.
-
Remove the two screws.
-

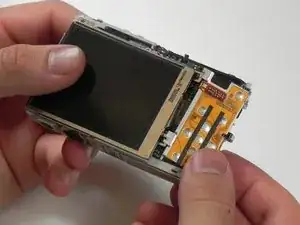

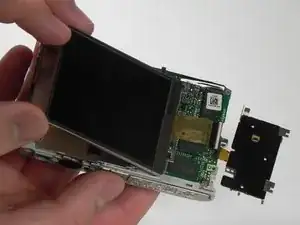

Gently pull up to detach the frame. (picture 2)
-
To reassemble your device, follow these instructions in reverse order.
4 Kommentare
No mention of getting an electric shock while removing the case.Bit of a tingle anyway.I held the camera in a plastic bag after that.
This will probably not be replied to, but is there any reliable way to discharge the flash capacitor? Got shocked once, but I thought it was already discharged lol.
Connect a 1k ohm resister between the black and red wire from the capacitor. Give it a few moments to discharge through the resistor. Don't discharge the capacitor without a resistor as you run a good chance of destroying the electronics. Wear your latex gloves too.
