Einleitung

If your screen breaks or is no longer responsive to touch, then you will need to replace it. The LCD screen itself has two wires attached that will need to be separated from the motherboard, and reinstalled with the new part.

  1. TpWZhurWXXYibZCy
    TpWZhurWXXYibZCy
    n2ijIiZtpVxo5CSJ
    jUdBCPd6OKiRAgyb

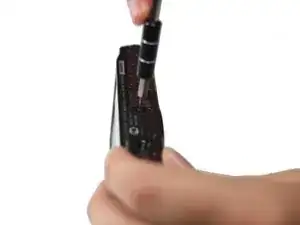

    • Using a Philips #000 head screwdriver, remove the 8 screws (3.30 mm) visible on the external part of the camera.

    • There are 2 on each side, and 4 on the bottom.

  2. AVIrFTA3ZOpvVsIo

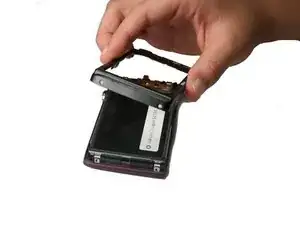

    • Remove the black casing on the back of the camera that runs around the LCD screen.

  3. PTUBCSnQeRPHSeND
    • Using the Philips #000 head screwdriver, remove the 1.90 mm internal screw located just above the lanyard mount.

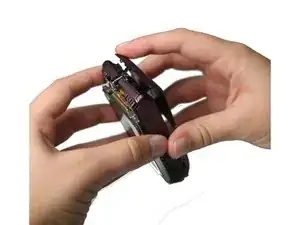

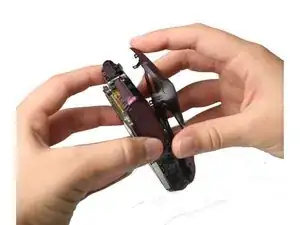

  4. BHnbREHAihfQSyEg
    BHnbREHAihfQSyEg
    i65uegbs1GgisRZZ
    BNAtFQxDiLD33L5V
    • Pry off the front shell casing.

    • If you find this difficult, use a prying tool to help gently remove the casing.

  5. PlGNpIVIZxeTQSU3
    • Using the Philips #000 head screwdriver, remove the 3.30 mm screw located on the side of the camera near the lanyard mount.

  6. lYTnZTMKf6oYdYGl
    lYTnZTMKf6oYdYGl
    HKRbuIgV1n5VbS21
    • Using the Philips #000 head screwdriver, remove 2 additional 3.30 mm screws holding the lanyard mount in place.

  7. KIwmOTFKhKuQa43M
    KIwmOTFKhKuQa43M
    NcDjvlLNByCNawJi
    lHOGxqSa5bTdcmr1

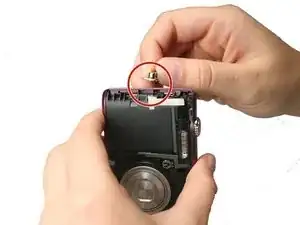

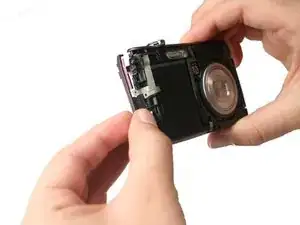

    • Remove the lanyard mount and accompanying side shell casing off of the camera.

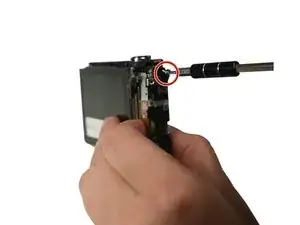

  8. Gvq4iaJdsnBm3J3o
    • Using the Philips #000 head screwdriver, remove the 3.30 mm screw securing the top shell casing.

  9. 6IkPCdXKKkoNNJtQ

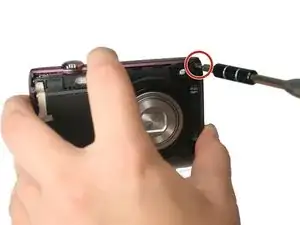

    • Using the Philips #000 head screwdriver, remove the 3.40 mm screw located on the front of the camera in the upper corner by the LED light.

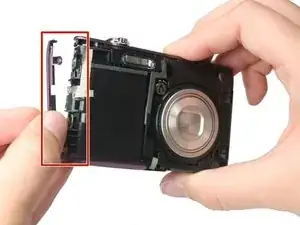

  10. EXVFmnRyMApKttfk
    • Remove the remaining side shell casing.

  11. jKOwNLKYjk6ejLpj
    • Remove the top shell casing.

  12. pllPi4dGxTuDiHYd
    • Using the Philips #000 head screwdriver, remove the 3.40 mm screw located near the functional buttons.

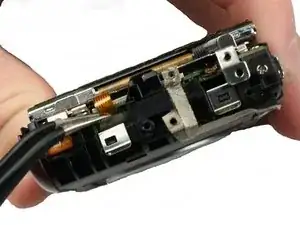

  13. PHiFD61hkPjmt6w4
    • Using precision tweezers, remove the ribbon cable that runs from the functional buttons plate to the under side of the motherboard.

  14. V4NxKmVE4ommDMsy
    • Using precision tweezers, lift up the bottom of the functional buttons plate and remove the metal plate.

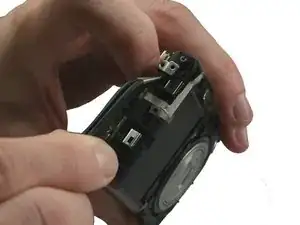

  15. asRa2wbYRLZRjKFm
    asRa2wbYRLZRjKFm
    FwAeDaBY2q4IwKUL

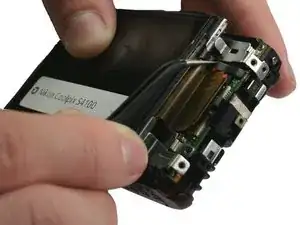

    • Using precision tweezers, gently remove the ribbon cable running from LCD to the bottom side of the motherboard.

  16. wCawaJCwZtMPU2iw
    wCawaJCwZtMPU2iw
    l1Pcdn6ES5kCBEK3

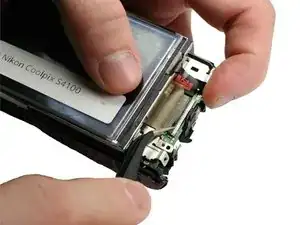

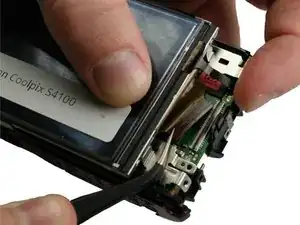

    • Using precision tweezers, gently lift up on the black strip of the ZIF Connector securing the cable from the LCD to the motherboard.

    • Then, gently remove the wire by pulling the base of the ribbon cable towards the LCD screen.

    • Do not poke or destroy the cable itself. Be careful to only grab the black fold in the tweezers.

    • The black strip will fold back to reveal the cable, but remain attached to the motherboard.

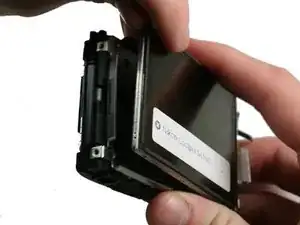

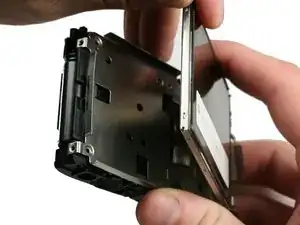

  17. UFJZSKQRSrwh2Bnn
    UFJZSKQRSrwh2Bnn
    VFERXugmvcsdhZLs
    • Remove the LCD screen from the metal mount.

Abschluss

To reassemble your device, follow these instructions in reverse order.
