You will need a #00 phillip's head screwdriver and a black spudger (or equivalent tool).

  1. fcYUj1mjtsYJjelR
    fcYUj1mjtsYJjelR
    xasRfa3mjsmjCKwl
    • Remove all five screws from the bottom of the camera using a Phillips #00 screwdriver.

  2. BSstcOtNvwKTpk1p
    • Open the battery door by sliding it in the direction of the arrow to reveal a hidden screw on the opposite side of the orange lever.

    • Remove this screw using a Phillips #00 screwdriver.

  3. FAJBZGjZvGRKEPHF
    • Rotate the camera to find the side panel with the lanyard attachment.

    • Detach the side panel by the lifting bottom corner slightly with the spudger.

  4. 6YMiTV6f22yEpSdj
    • Lift the back cover, being careful not to rip the orange cables between the camera and the back cover.

  5. e4SpyC4YDGEDKGMB
    • With the back cover lifted, lift the black flap that connects the ribbon to the motherboard with the spudger and carefully remove the back cover.

  6. aEig3idMhKQjRuPw
    aEig3idMhKQjRuPw
    IQQyEUmL1DMfRZGg
    2Cgxw1fCLqpXINuw
    • Remove the five screws on the metal plate.

    • One of them is in a hole in the corner of the metal plate.

    • Remove the screw at the bottom of the camera.

    • Carefully lift the metal plate from the right side to reveal a ribbon connected to the motherboard.

  7. mMdERtBSTRasSrpM
    mMdERtBSTRasSrpM
    1fSMMdfGUuQXMeXl
    • Lift the white flap with the spudger to release the ribbon.

    • Remove the back metal plate.

  8. ueieD5rRGmDFqdER
    ueieD5rRGmDFqdER
    GbHRuEOKldyDXAM6
    6o3vkExXM13i1N2i
    • Lift the two ribbons with the spudger to disconnect the lens and pull it out.

  9. 2IJAUGURNR3gb1LH
    2IJAUGURNR3gb1LH
    62tkmUjoJArs5SOP
    • Lift two flaps with the spudger on the top of the motherboard to release ribbons.

  10. McOVTq6FDJhEyUMf
    McOVTq6FDJhEyUMf
    F5qcspHHAgBTCBKB

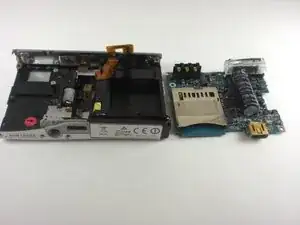

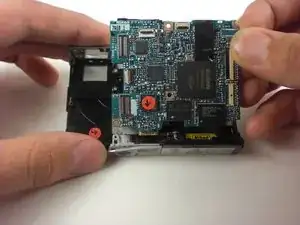

    • lift motherboard from the top to remove it from the camera.

Abschluss

To reassemble your device, follow these instructions in reverse order.
