Nikon Coolpix S630 Battery Cover Door Replacement

Geschrieben von: Aulivia Bounchaleun
  • Kommentare: 1
Nikon Coolpix S630 Battery Cover Door Replacement

Schwierigkeitsgrad

Moderate

Schritte

13

Zeitaufwand

30 - 40 Minuten

Einleitung

Before replacing your battery cover door for your Nikon Coolpix S630 you would need to read how to remove back panel and front panel. Removing both back and front panels are necessary to starting this guide.

  1. NJEaiAJgWSsjEhpl

    • The battery compartment is located on the bottom of the camera.

    • Place your thumb on the battery door.

    • Slide the door away from the camera in the direction the arrow points to.

  2. 25iLjt3MANUhMmPP

    • Slide the yellow tab towards the back of the camera.

    • The battery should pop out.

    • Remove the battery.

  3. LNmnvxXEnMWyTjr1

    • Press the memory card down into the camera.

    • The memory card should pop out.

    • Remove the memory card.

  4. kBBihSkOehNGdAwe
    kBBihSkOehNGdAwe
    lJ2FDT5laV5WbXPj
    cJ6l2DjTFkHc4muY

    • Unscrew the two 3.5mm Phillips screws from the side with the AV outlet.

    • Unscrew the 3.5mm Phillips screw from the opposite side of the camera.

    • Unscrew the six 3.5mm Phillips screws from the bottom of the camera.

  5. K1UdrrDEEkDl6Jbn

    • Carefully remove the back casing from the camera.

    • Be mindful when removing the back casing as there is a ribbon that still connects the back casing to the motherboard.

  6. MGBDKqi2SVMEnUxX
    MGBDKqi2SVMEnUxX
    jjcfR2aUY62TVZaj

    • Place the plastic opening tool underneath the ribbon tab as shown. Gently lift the tab up.

    • Gently pull the ribbon from the logic board with tweezers.

    • With the ribbon disconnected, the back casing should now be detached from the rest of the camera.

  7. 2UQIxUpWDJZGcG4i

    • Locate a small, rectangular flap above the battery cover door.

    • Push the small, rectangular flap back through the hole.

  8. AdY23Au2j2bEHYtS

    • Using the plastic opening tool, gently pry open the front cover. Gently remove the front cover.

    • Make sure to hold the camera down when removing the front cover.

  9. hwFEgAZHTKbTONlk

    • Locate the battery cover door.

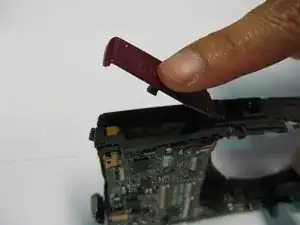

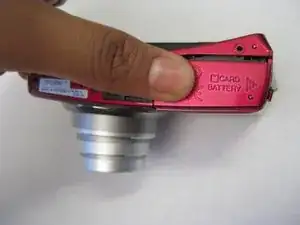

  10. nxyj1vPFpaGRuXjj
    nxyj1vPFpaGRuXjj
    ro2UiigqjEYicmpy

    • Press and slide the cover door open.

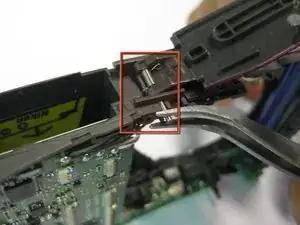

  11. LIHuyFLodfEuNcHd

    • Locate the small rod that is securing the door in place

    • Using a tweezers, grab the rod and slowly pull the rod out

    • Note: Be careful as you try to pull the rod out because the spring may pop out

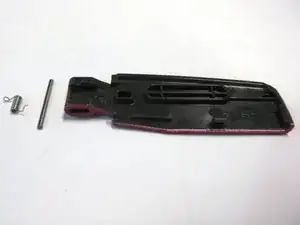

  12. SD2GKpxWPZyXS4ds

    • Replace battery cover door.

    • Note: To reinstall a new battery cover door, make sure you have these parts: spring, rod, and the battery cover door.

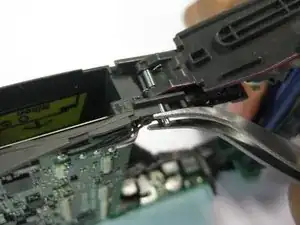

  13. AfmmsPROvJPIdBRO

    • Place battery cover door back into place with spring between the insertion holes.

    • Using a tweezers, gently slide the rod through the insertion holes and through the spring.

Abschluss

To reassemble your device, follow these instructions in reverse order.
