If you need to replace a damaged display with a new display of the Nikon Coolpix S6500 you can do it with the help of this guide. For this guide, you will need a Phillips #1 Screwdriver to remove the screws. Store the screws safely. Remove the case and display carefully. Before beginning, make sure to power off the camera completely and disconnect it from any external power source.

  1. CsTyHSi5xYjs5DoT
    CsTyHSi5xYjs5DoT
    OiIosM2WGIqTUx35
    aMSO6SDHRntC2KA3

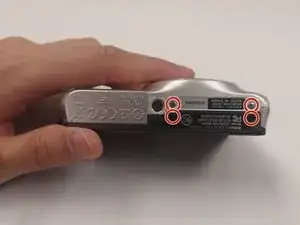

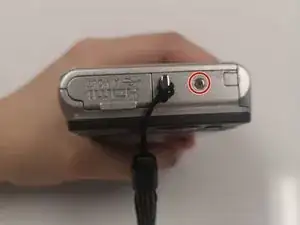

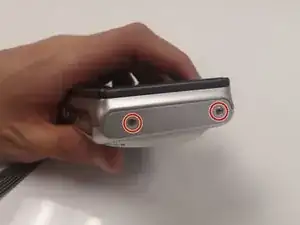

    • Remove all seven 3mm screws by using the Phillips #1 screwdriver.

  2. NkvcxFPhkEuZVysp

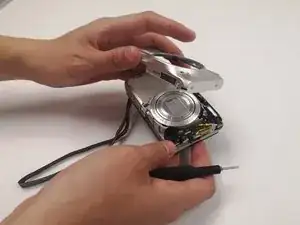

    • Remove the case from the camera.

  3. 2F2cCRfSixyYQg1K

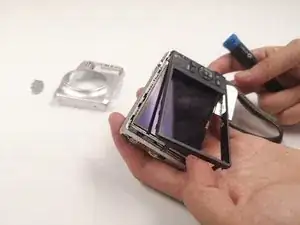

    • Remove the display frame.

  4. dStuG2I4EUpGD5AK
    dStuG2I4EUpGD5AK
    3i1fEHjhu1Jlw4Mj

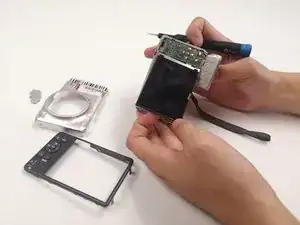

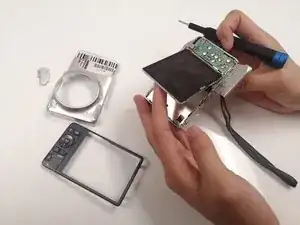

    • Take out the display.

Abschluss

To reassemble your device, follow these instructions in reverse order.
