Nikon Coolpix S7000 LCD Display Replacement

Geschrieben von: Jonathan Manigo II
  • Kommentare: 7
Nikon Coolpix S7000 LCD Display Replacement

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

25 Minuten

Einleitung

This guide will allow you to remove the LCD display that may be cracked or unresponsive and replace it with a new LCD display.

  1. Nv5DpJikWJg3MZBQ

    • Turn the camera upside down and remove the two 40mm JIS screws by using a JIS J000 screwdriver.

  2. 5BjWfsJOwfiSYtWr

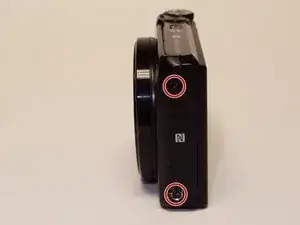

    • Turn camera on its left side and remove the two 40mm JIS screws by using a JIS J000 screwdriver.

  3. vewiB1kjj11hUyRs

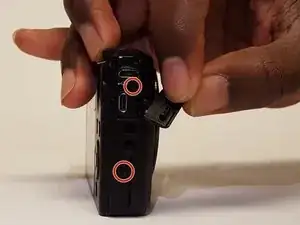

    • Turn the camera on its right side and remove the two 40mm JISscrews by using a JIS J000 screwdriver.

  4. DSRIeqMX1CBoJpDQ

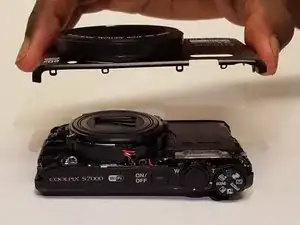

    • Carefully remove front cover of the camera.

  5. ptjsvQNWFyQQLCXM
    ptjsvQNWFyQQLCXM
    b2wCppO16vKSnjXV

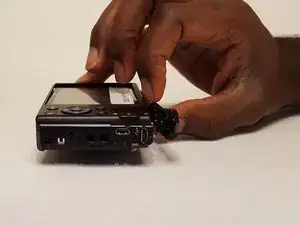

    • Carefully remove the right side of the camera.

    • In order to do so, you will have to lift up on the edge of the cover that has the shutter button on it. (Look at next photo to see how it looks)

  6. NB2NwXcFiXWnDSxp

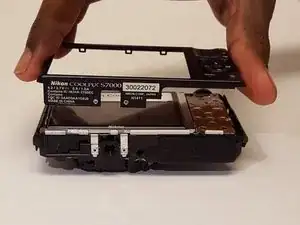

    • Gently remove the back cover of the camera.

  7. DBT26eNXhBJqo5RB

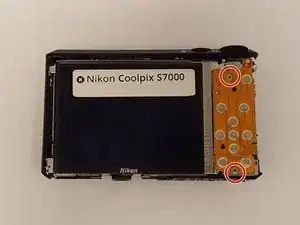

    • Remove the two 20mm JIS screws using a JIS J000 screwdriver. They are responsible for keeping the keypad in place.

  8. HdM11ODvdvXxmZoa
    HdM11ODvdvXxmZoa
    YSkv3UkNBv1lWxE4
    aS3OSySIyAq2lq1t

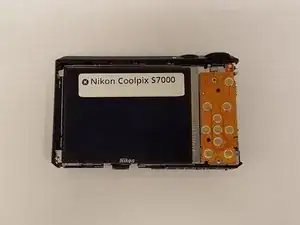

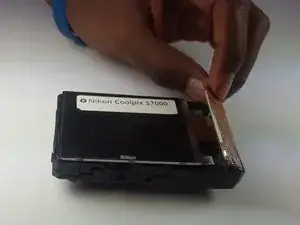

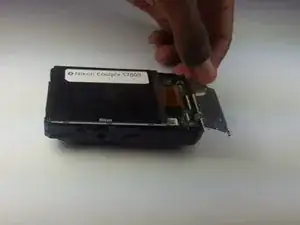

    • Flip the keypad up and over the camera.

  9. EhqusJBGQ2NG2wjV
    EhqusJBGQ2NG2wjV
    k6CGoSb2CIMTiNPZ

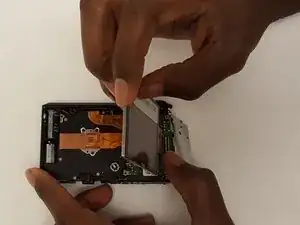

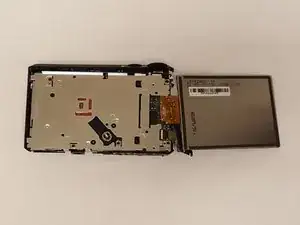

    • Carefully pull the LCD display up from the camera.

    • Fold the LCD display over the camera.

  10. SnLxnE2ASGfImuuI
    SnLxnE2ASGfImuuI
    ISAbwAVkeZ3tuCXN

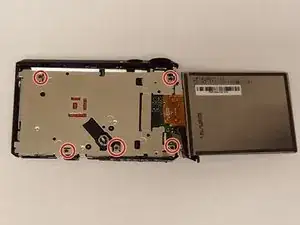

    • Using a JIS J000 screwdriver, remove the five 30mm JIS screws identified in the metal frame.

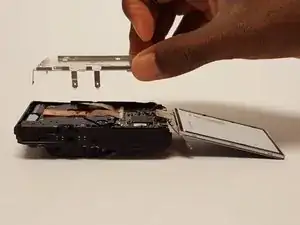

    • Once all of the screws are removed from the metal frame, gently lift up and remove the metal frame from camera.

    It is not clear why step 10 is necessary... the LED display is free without removing the metal frame, and the ZIF connector is accessible. My camera only had 4 screws on the metal plate - the middle one in the picture was not there.

    Charlie Plesums -

    I did not remove the frame aswell, I think this this step can be skipped.

    Heiko Jahn -

    Moi aussi...

    jgriv -

  11. thqmCIGQ3STL6GjM
    thqmCIGQ3STL6GjM
    tgkArDWtk6EhLaRD

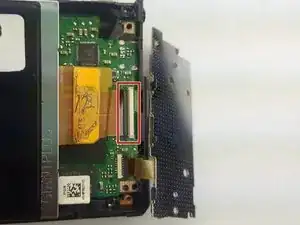

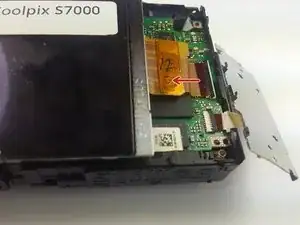

    • In order to disconnect the LCD display ribbon from the zero insertion force (ZIF) connector we must first flip up the little black tab with your fingernail.

    • Gently pull the out the LCD display ribbon from the connector. It should slide out pretty easy.

    • For this step, avoid using a metal object. However, you can use a finger nail to complete task.

Abschluss

To reassemble your device, follow these instructions in reverse order.
