Einleitung

Replacement of rubber grips on D300 using readily available repair parts.

A straightforward job but requiring some dexterity with simple tools.

  1. GF5raOmOi1esME44
    • Here are the tools I used. You probably only need one knife. The alcohol is for removing adhesive residue and dirt.

  2. vK1RQDpKyRZVghvF

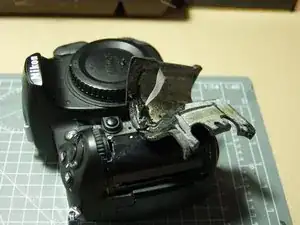

    • Getting the old grips off is easy using the sculpting tool, but note the right hand grip is secured with a screw, arrowed. See next step.

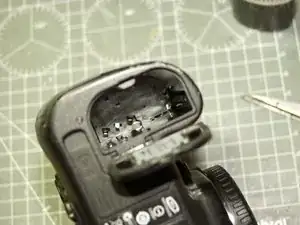

  3. GKjmDdrhpVoQAaXV
    • The grip is attached to the body via a tab which is fastened by a small screw, that is accessible from the battery compartment. Remove the battery, you can see it in the photo upper right towards the front of the camera. unscrew this and keep the screw safe.

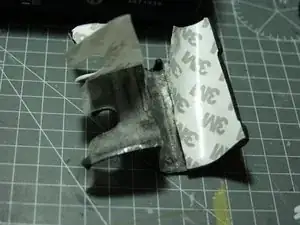

  4. E1wDQFIvHmnOiFxr
    • Take the new handgrip rubber and use tweezers to peel off the paper backing. These parts are very well cast, but the adhesive backing does not seem to be factory standard.

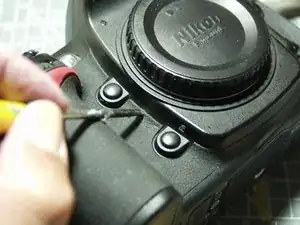

  5. K3Eg1M2ALh1vDBTZ
    K3Eg1M2ALh1vDBTZ
    G2MMIqaat6OjwYpf
    • Clean off any adhesive left behind, and attach the new part starting by inserting the plastic tab back where the old one went and re-securing the screw. Carefully reattach the grip, tucking it in to the apertures in the body using the sculpting tool, or worn screwdriver - avoid piercing the rubber.

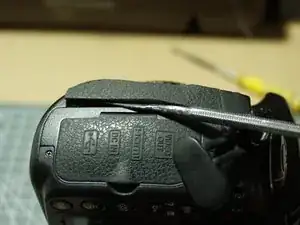

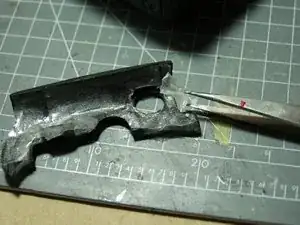

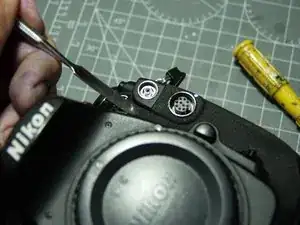

  6. qrSPty2HNjUvTGKk
    qrSPty2HNjUvTGKk
    GNRPGHoHVOpyhd5r
    jZaoIVDMaE6qs6YE
    • Remove the left hand grip, after turning the socket covers back out of the way. Remove dirt and adhesive residue. Cut the adhesive away from the socket hole before attaching. The rubber must be seated into the various body apertures, esp. behind the focus selection lever and beside the remote socket.

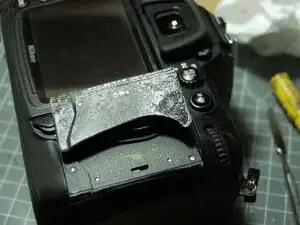

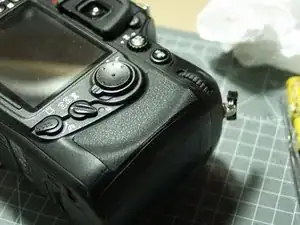

  7. u3QDkr4UmDvNrZND
    u3QDkr4UmDvNrZND
    14UbS3E2wddvNUnx
    • Remove the thumb grip. Note that here the old adhesive has melted, which required cleaning up with alcohol. The new rubber is easy to replace.

  8. W6kVSBfdk2BCVrLc

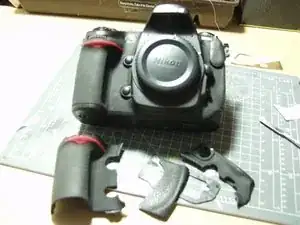

    • The finished job. Dust etc. should be removed from the new rubber with adhesive tape. Ensure everything is properly seated, and you're ready to go.

Abschluss

To reassemble your device, follow these instructions in reverse order.
