Nikon D3000 Flash Spring Replacement

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

15 Minuten

Einleitung

After removing the covering of the flash arm and it's components, remove the metal spring from it's hinge and replace it with a new one.

  1. YHjMlyhbWEQJg4sH
    YHjMlyhbWEQJg4sH
    B322COesFq5pPgGs

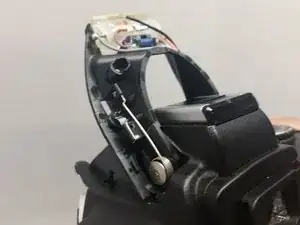

    • Remove the two 2.5mm x 4mm Philips screws located directly under the flash.

    • Pop off the covering of the flash to reveal the flash arm spring.

  2. BeHPMrvpZXM5yaty

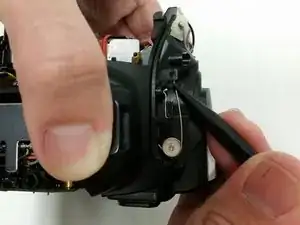

    • Lift the flash arm spring using the plastic spudger and unhinge the spring to remove it.

  3. myGCmcSVwxgdxrHX

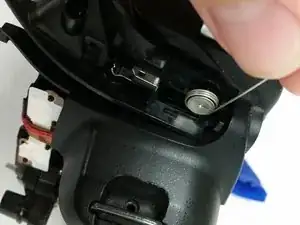

    • Remove the spring by sliding it off, then replace it with a new one.

Abschluss

To reassemble your device, follow these instructions in reverse order.
