Nikon D3000 On/Off Switch and Shutter Button Replacement

Geschrieben von: Randall Heath
  • Kommentare: 2
Nikon D3000 On/Off Switch and Shutter Button Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

1 Stunde

Einleitung

  1. kjhCafKMHiD23nCp
    kjhCafKMHiD23nCp
    rDHdFmVUUJjciiBk

    • Remove six 3 mm x 2.5 mm Phillips head screws from the bottom of the camera.

    • Remove three 3 mm x 5.5 mm Phillips head screws from the bottom of the camera near the battery cover.

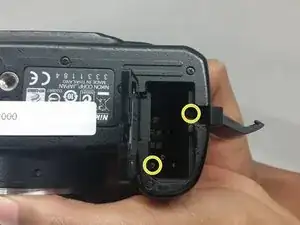

    • Lift the battery cover and remove two 3 mm x 5.5 mm Phillips head screws as shown.

    • Remove the bottom cover.

  2. OT2kYQFxLOKN1PRC
    OT2kYQFxLOKN1PRC
    HRAIRimiyY4uQUKa
    fiJSayJhZXHCIkGo

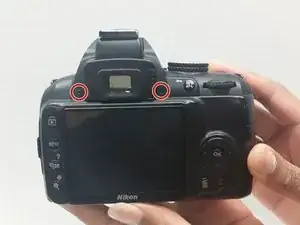

    • Remove two 3 mm x 5.5 mm Phillips head screws from either side of the viewfinder.

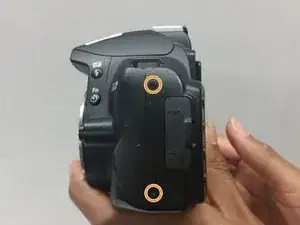

    • Remove four 3 mm x 5.5 mm Phillips head screws above and below the USB port cover and on either side of the SD card slot cover.

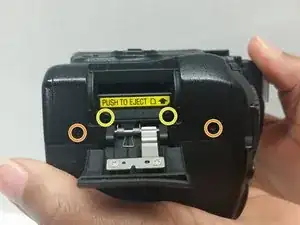

    • Remove two 3 mm x 4 mm Phillips head screws inside the SD card slot cover.

  3. 6SR1DMkqFywTYQ4w
    6SR1DMkqFywTYQ4w
    pJIJCAjNjBLb2xJY

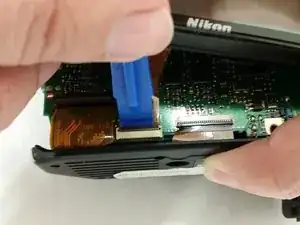

    • Lift the LCD panel off up to expose a ribbon connector. Then lift the ribbon connector tab as shown and slide the ribbon out.

    • Use this technique for all ribbon connectors in this guide.

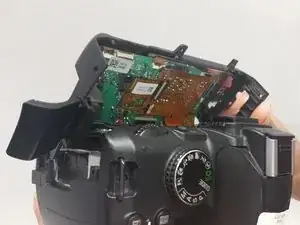

    • Lift the LCD panel away and off the camera

  4. FWxJoVLPpK5RNIPW
    FWxJoVLPpK5RNIPW
    pC5SOmfsuNMtTvrB

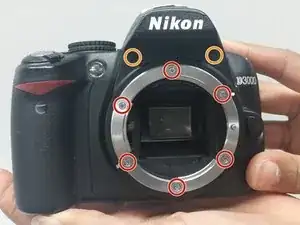

    • Remove six 3 mm x 5.5 mm Phillips head screws from around the lens ring and remove the lens ring.

    • Remove two 2.5 mm x 4 mm Phillips head screws from above the lens ring to allow the front of the camera to be removed.

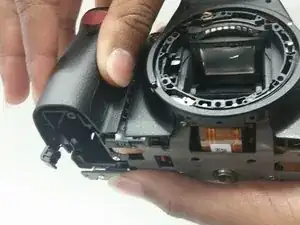

    • Lift and remove the grip and the front panel of the camera.

    You're forgot to mention about a screw under the front panel and two screws under the flash. And it has to be in open position to reach them.

    rsa91 -

  5. llVn6Y3HCdCDcPkI
    llVn6Y3HCdCDcPkI
    fQBQQwDp6M4OmatI
    QxQymTPMTHs6Iv5Q

    • Remove two 3 mm x 4 mm Phillips head screws from where the camera grip was just removed.

    • Remove one 2 mm x 3 mm Phillips head screw from the same location as above.

    • Remove one 3 mm x 5.5 mm Phillips head screw from the top right side of the camera shown.

    • Remove one 3 mm x 3 mm Phillips head screw from the top left side of the camera shown.

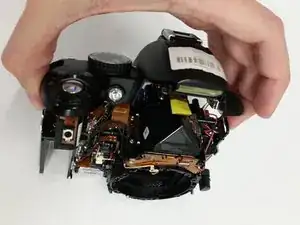

    • Gently lift the top of the camera up to separate it from the main body of the camera. At this point, it will still be connected via wires.

  6. TPoqYws6xNhMehKk

    • Soldering irons are hot. Take all necessary precautions before soldering to prevent damage to the camera or yourself.

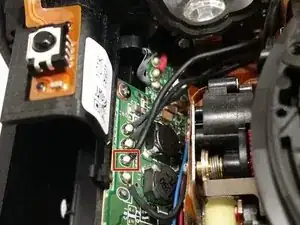

    • De-solder the wire shown on the grip side of the camera to allow sufficient access to the top of the camera.

  7. jsUNnPJkJCVEgyBQ
    jsUNnPJkJCVEgyBQ
    gfXgoYgvtEtDAJw5

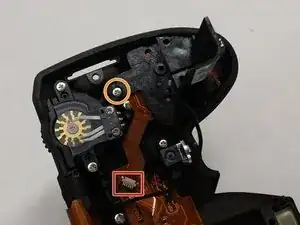

    • Remove the ribbon connector.

    • Remove the 3 mm x 4 mm Phillips head screw and lift off the plastic bracket to expose the on/off switch underneath.

    • A quick inspection should take place before replacing the button and the metal contacts.

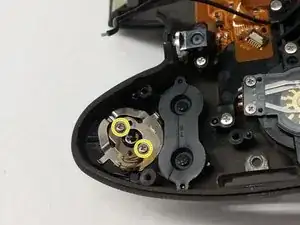

    • Remove the two 2 mm x 4 mm Phillips head screws and the shutter button and on/off switch will fall down away from the top of the panel.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Randall Heath

Mitglied seit: 25/08/15

824 Reputation

Ein Kommentar

Thanks for the guide. It was very helpful. I had problem with a shutter button. I have not replace it but disassembled and cleaned two tiny metal contacts inside, now my camera works well.

rsa91 -
