Einleitung
This guide helps you replace the LCD screen. Please note that the LCD screen and the glass screen are two separate parts.
-
-

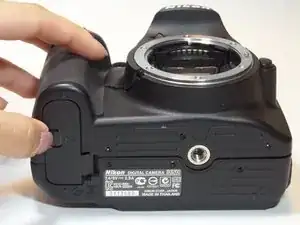

Find the marked arrow on the battery compartment door and firmly push following the arrow's direction to release the latch.
-
-
-
Release the latch and allow it to completely open.
-
Insert the battery by following the diagram on the inside of the compartment door.
-
Close the compartment door and firmly press on the latch until you hear a clicking sound.
-
-
-

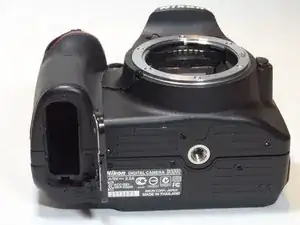

Turn the camera so the bottom faces you.
-
Locate and remove the 6 screws using a Phillips #00 screwdriver.
-
-
-

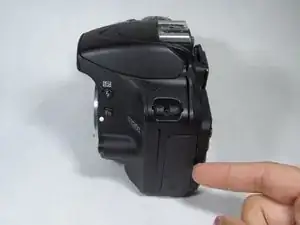

Locate the rubber grip directly below the shutter-release button.
-
Lift the rubber grip using a plastic opening tool to locate and remove the two screws underneath using a Phillips screwdriver #00.
-
-
-

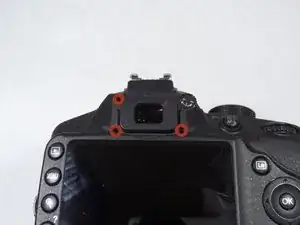

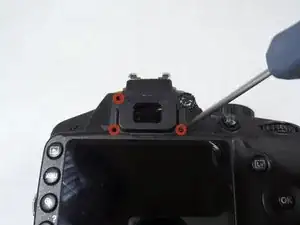

Locate and remove the 4 screws above the LCD screen, around the eyepiece. Use a razor to carefully peel the sticker off the +/- wheel to reveal the screw beneath.
-
-
-

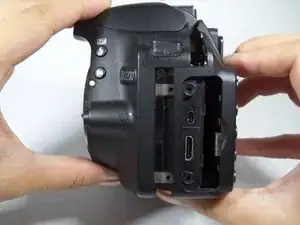

Locate the connector cover left of the LCD screen.
-

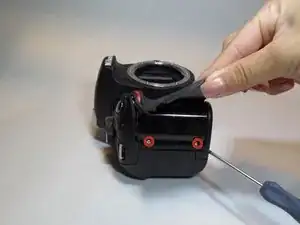

Unlatch the connector cover to reveal two screws.
-
Remove screws.
-
-
-
Remove the rubber connector cover.
-

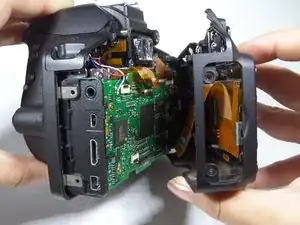

Gently pull the back portion of the camera, one hand gripping the body and the other gripping the LCD screen.
-
-
-
Lay the back cover, LCD side down.
-

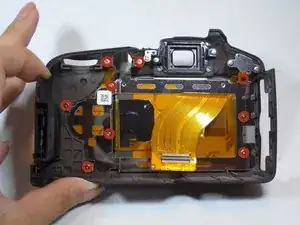

Locate and remove the 9 screws around the silver protector plate.
-
-
-

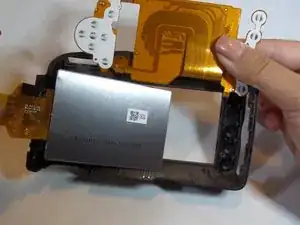

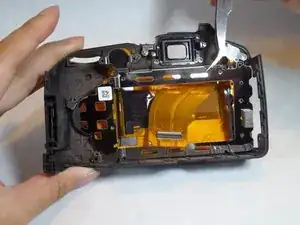

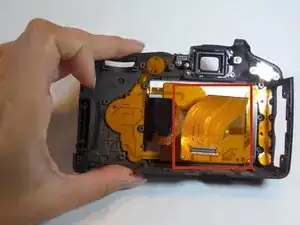

Lift the yellow connector.
-

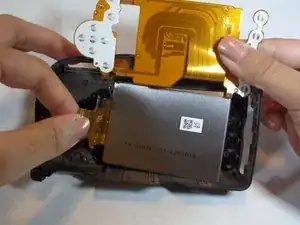

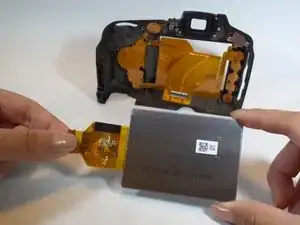

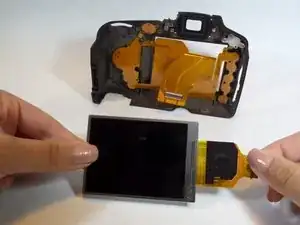

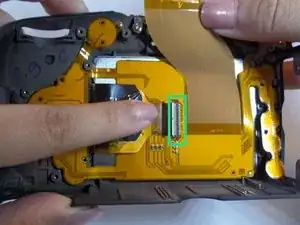

Flip the white clasp using a plastic opening tool, and pull out the tab.
-
To reassemble your device, follow these instructions in reverse order.
