Nikon D40 Flash Pin Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

10 Minuten

Einleitung

This guide will teach you how to open up your flash safely and replace the flash pin that holds the flash upright.

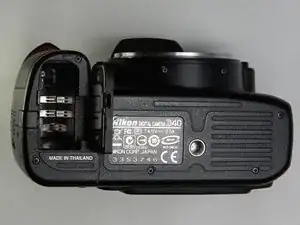

  1. WGVPxsVrhbuBYqfK

    • Turn off the camera and remove the battery.

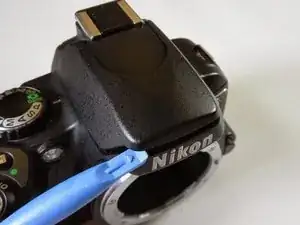

  2. kXQQ2RjPpVDwKAVV

    • Pry the flash open using the plastic opening tool.

  3. GSdgZKQC1UqRfEER

    • Remove the two Phillips #0 3.0 mm screws from the front of the flash compartment using the small Phillips Head screwdriver.

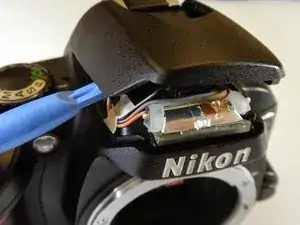

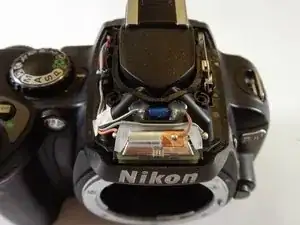

  4. Ne6IaFRq6XfCPxPI
    Ne6IaFRq6XfCPxPI
    fDZbgEQpfQK6kOFC

    • Pry off the back plastic of the flash compartment using the plastic opening tool.

    • When it is time to reassemble the flash module, a certain amount of force and precise alignment will be required.

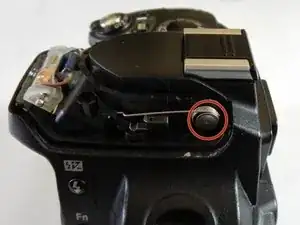

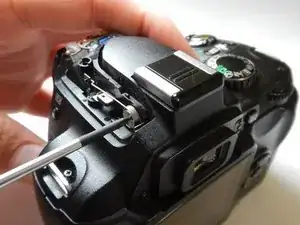

  5. Ivg62LpZAqKGZXEq
    Ivg62LpZAqKGZXEq
    3TCG6Som6P4M2GnU

    • On the left of the camera you will see a metal spring.

    • Unscrew the Phillips #0 3.0 mm screw holding the spring in place, using the small Phillips Head screwdriver.

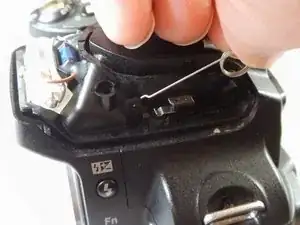

  6. S6QYWDbgM1qJmCQp

    • Remove metal spring and replace with new spring.

Abschluss

To reassemble your device, follow these instructions in reverse order.
