Nikon D40 LCD Screen Replacement

Geschrieben von: Gerik Kubiak
  • Kommentare: 1
Nikon D40 LCD Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

30 Minuten

Einleitung

LCD screens are known to shatter when dropped. In this guide you will replace the LCD screen that is on the inside of the camera.

  1. AOdPOxaD4pmYY2sA

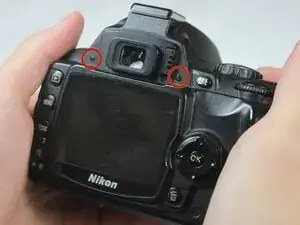

    • Remove the two visible 6.0 mm Philips #0 screws on the left and right sides of the viewfinder. These screws are highlighted in red.

  2. SPLKLSAwTQqFa5A1
    SPLKLSAwTQqFa5A1
    iMmEb6PMlhRoMIer

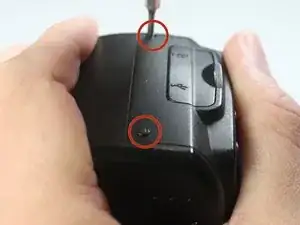

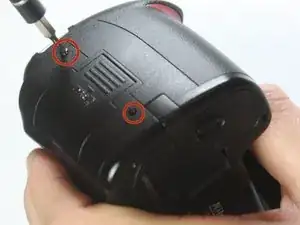

    • Remove the four 6.0 mm Philips #0 screws on the left and right sides of the camera.

  3. jMAKRwKmBd2XiaFm

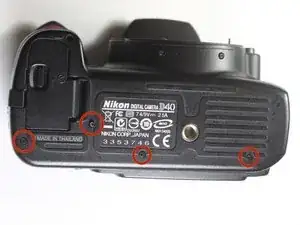

    • Remove the four highlighted 3.0 mm Philips #0 screws on the bottom of the camera.

    Worth mentioning, the top circled screw was a 6mm on my camera. The other 3 were 3mm.

    Mark Brown -

  4. ZvD1ATLKgxS2FTOZ

    • While pulling the bottom down, remove the back of the camera.

    • Be careful not to pull too hard on the back as it is connected via a ribbon cable. Be sure to disconnect this cable on the main board.

    • To disconnect the ribbon cable pull the small black tab upward and pull gently on the cable.

  5. Gqi6JjNY2EBNfYAW

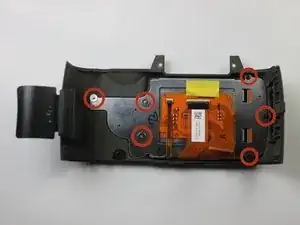

    • Remove the six 3.0 mm Philips #0 screws on the inside of the back panel which contains the LCD screen.

  6. rMhg1EGu1sQU1uUw

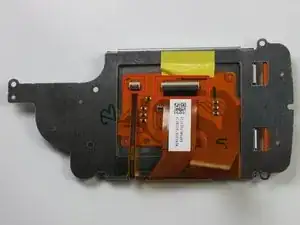

    • Detach the ribbon cables on the LCD casing.

  7. 5dncIAXuhOAIsA2X

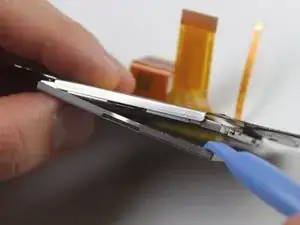

    • Remove the metal casing containing the LCD screen using the plastic opening tool.

    • Be sure to look at the picture to make sure you are removing the correct piece of metal. There should be no glue holding the correct piece to the frame.

  8. cFGEVOMACNqO2TBH

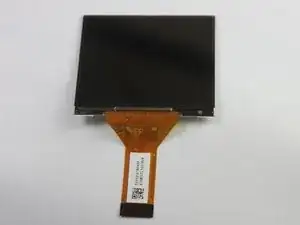

    • You should now be able to remove the LCD screen. Replace it with a new screen.

Abschluss

To reassemble your device, follow these instructions in reverse order.
