Nikon D40 Mainboard Replacement

Geschrieben von: Joe Leija
  • Kommentare: 2
Nikon D40 Mainboard Replacement

Schwierigkeitsgrad

Difficult

Schritte

9

Zeitaufwand

30 Minuten

Einleitung

The mainboard controls all of the software on the Nikon D40. A faulty mainboard can cause problems that will require a new board. This guide will show you how to replace the camera's mainboard.

  1. AOdPOxaD4pmYY2sA

    • Remove the two visible 6.0 mm Philips #0 screws on the left and right sides of the viewfinder. These screws are highlighted in red.

  2. SPLKLSAwTQqFa5A1
    SPLKLSAwTQqFa5A1
    iMmEb6PMlhRoMIer

    • Remove the four 6.0 mm Philips #0 screws on the left and right sides of the camera.

  3. jMAKRwKmBd2XiaFm

    • Remove the four highlighted 3.0 mm Philips #0 screws on the bottom of the camera.

    Worth mentioning, the top circled screw was a 6mm on my camera. The other 3 were 3mm.

    Mark Brown -

  4. ZvD1ATLKgxS2FTOZ

    • While pulling the bottom down, remove the back of the camera.

    • Be careful not to pull too hard on the back as it is connected via a ribbon cable. Be sure to disconnect this cable on the main board.

    • To disconnect the ribbon cable pull the small black tab upward and pull gently on the cable.

  5. 3TNZCgZcFcQXXnSM
    3TNZCgZcFcQXXnSM
    yH4kKVgglWbTjryw

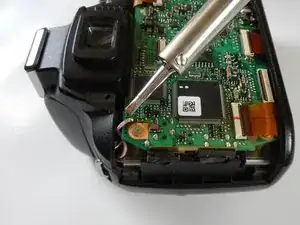

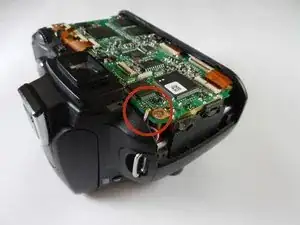

    • Remove the solder connecting the red wire to the mainboard.

  6. TLQYVmFmRVMscfOv

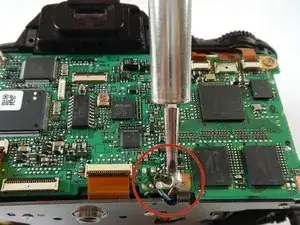

    • Desolder the 4 smaller wires near the bottom of the mainboard.

  7. o1OgeJILAN44sVLo
    o1OgeJILAN44sVLo
    lReEDUhJ2Dp1a2NO

    • Use the plastic opening tool to release the ribbon cables attached to the mainboard.

  8. lksWAy1HKCP2A4nE

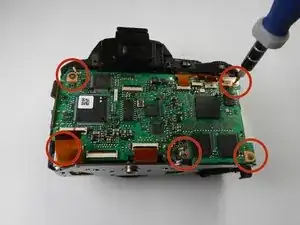

    • Remove the five 3.0mm Philips #1 screws holding the mainboard down.

  9. ofo2mk4bitF1EZxF
    ofo2mk4bitF1EZxF
    sKiKbcQMoFahDNnv

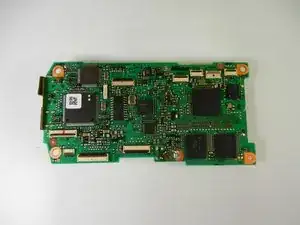

    • Lift the mainboard up to reveal the final connection.

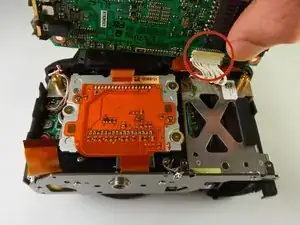

    • Carefully detach the white cable from the board.

Abschluss

To reassemble your device, follow these instructions in reverse order.
