Nikon D40 Viewfinder Replacement

Geschrieben von: Amy Chen
  • Kommentare: 1
Nikon D40 Viewfinder Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

30 Minuten

Einleitung

This guide will help to you access your viewfinder in your Nikon D40 and replace the viewfinder.

  1. AOdPOxaD4pmYY2sA

    • Remove the two visible 6.0 mm Philips #0 screws on the left and right sides of the viewfinder. These screws are highlighted in red.

  2. SPLKLSAwTQqFa5A1
    SPLKLSAwTQqFa5A1
    iMmEb6PMlhRoMIer

    • Remove the four 6.0 mm Philips #0 screws on the left and right sides of the camera.

  3. jMAKRwKmBd2XiaFm

    • Remove the four highlighted 3.0 mm Philips #0 screws on the bottom of the camera.

    Worth mentioning, the top circled screw was a 6mm on my camera. The other 3 were 3mm.

    Mark Brown -

  4. ZvD1ATLKgxS2FTOZ

    • While pulling the bottom down, remove the back of the camera.

    • Be careful not to pull too hard on the back as it is connected via a ribbon cable. Be sure to disconnect this cable on the main board.

    • To disconnect the ribbon cable pull the small black tab upward and pull gently on the cable.

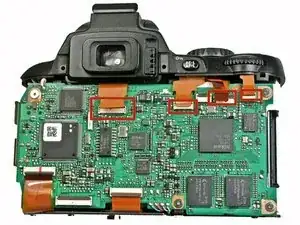

  5. 4n3oBWLiQvlNJNYb

    • You will be able to see the ribbon cables coming out from the back panel, disconnect the cables.

    • Be careful not to pull too hard on the ribbon cables.

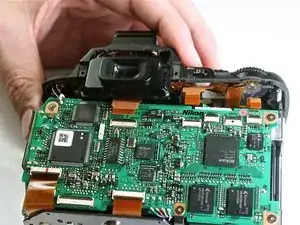

  6. kbqV26XZBCa6SLJX

    • Slowly push the upper body up until you see the frame of the viewfinder

    • Be careful while pulling the top camera body.

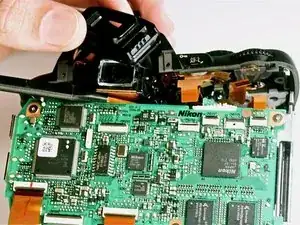

  7. YJPoRDpAvPiwmqiQ

    • Use a spudger to keep the upper body separate from the printed circuit board.

    • Wiggle the plastic eyepiece out of the frame. This may require some force.

  8. QSJwQRxUuZPjVuHy

    • Remove the viewfinder with the plastic opening tool.

    • Do not push too hard while using the opening tool.

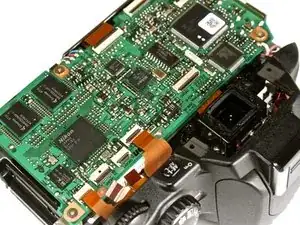

  9. Gr41nOKTPROK6jxp

    • The viewfinder has been removed!

Abschluss

To reassemble your device, follow these instructions in reverse order.
