Nikon D500 Top Panel Removal

Geschrieben von: Wolphin
  • Kommentare: 6
Nikon D500 Top Panel Removal

Schwierigkeitsgrad

Moderate

Schritte

18

Zeitaufwand

1 Stunde

Einleitung

This is the steps to remove the top assembly of the camera.

  1. ohvy2IxcOaHoE6XV

    • Remove the 2 screws beside the memory slots, then close the cover.

    • Note: make sure to remove the memory cards first!

  2. ITGbn2VNAhgsvEBY

    • Remove the 2 screws under the rubber grip part by peeling back the rubber grip

    • Try not to damage the double sided adhesive under the rubber.

  3. ccGcYRpMpJmCbrnv

    • Remove the 2 screws under the rubber pad marked in red.

    • Try not to damage the double-sided adhesive under the rubber.

    • Note: There is a 3rd screw under the flap, which holds the back to the top (marked in yellow). If needing to remove the back panel not just the memory cover flap, it can be removed at this time as well.

    There are 3 screws, not two.

    azoe1 -

    The 3rd screw is not attached to the the side panel, but is attached to the top. This part of the guide is for removing the side panel, so that screw did not need to be removed. There is another step that is for removing that screw to release the rear panel.

    I have edited the step to add that comment.

    Wolphin -

    • Lift out the assembly panel, it should come free without much force.

    • May open the panel to release it.

  5. FKpTFgFBR2NecDYU

    • Remove the screw above the viewfinder

  6. YoEJC5byjBJqRMvJ

    • Remove the 4 screws holding the plate to the bottom.

    • Remove the bottom plate

  7. NoTTQoW1numOgyCx

    • Remove the 4 screws (1 was under the plate)

  8. Qq1Vl4Tn2DLW3vQW

    • Remove the screw under the grip

  9. s4vcFpbNwjjKvhBH

    • Remove the exposed screw on the Left side

    • Carefully pull the back plate off the camera

    • There are 2 ribbon cables that need to be disconnected from the main board to free the rear panel from the camera.

    Any How to for removing the ribbon cables safely and affective

    Jered Housel -

    The ribbon cables have latched covers which the catches flip up and release the cables from the motherboard.

    Wolphin -

  11. Sq6s1QjriTUeAArU

    • Carefully remove the Rubber grip from the camera

    • Careful to not damage the double-sided adhesive

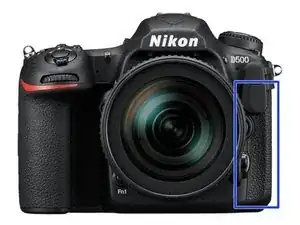

  12. lUBBBiB2ZSdtaUU6

    • Carefully remove the Rubber grip from the camera

    • Careful to not damage the double-sided adhesive

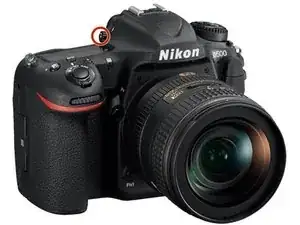

  13. UsG1EdMWEOvrEwsL

    • Remove the diopter cap from the end of the diopter (use a flat head or pry tool)

    • Un-screw the screw from the diopter

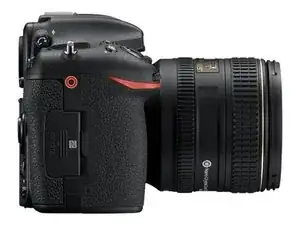

  14. jGjRcsQAmMiIBN6E

    • Remove the screw that had been hidden under the memory slot cover.

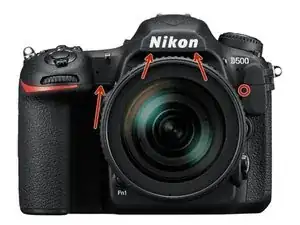

  15. 2a23WWn1623FnTB2

    • Remove the screw under the top assembly, had been hidden by the grip.

    • Remove the 2 screws from the bottom of the mirror box

    • Remove the lens or lenscap prior to doing this step to gain access, then reattach.

    • Remove the screw from beside the accessory socket

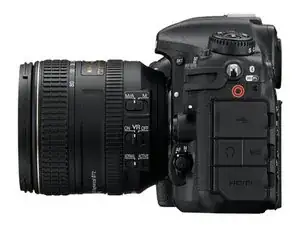

  16. MxDXfO4rVj1NQFKH

    • Remove the screw from the left side, had been hidden under the rubber

    • Disconnect the 2 ribbon cables from the main board.

    • Disconnect the wifi sub-board with the wifi cable from the main board

    • Carefully lift the top assembly free.

    • Note, there is a thermal pad on the left hand side, almost right under where the strap lug is. Careful to not damage it.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Careful of the thermal pad on the left side when placing the top assembly back onto the camera.
