Nikon D5000 Battery Door Replacement

Geschrieben von: Jacob Rardin
  • Kommentare: 1
Nikon D5000 Battery Door Replacement

Schwierigkeitsgrad

Very easy

Schritte

2

Zeitaufwand

1 - 2 Minuten

Einleitung

Removing the battery door makes it easier to clean up after a battery leak or unscrew the bottom panel. It is also necessary for the installation of certain accessories.

  1. ltiXbdoaJXjs3WBx
    ltiXbdoaJXjs3WBx
    YKimIfyCLjyaOFIA

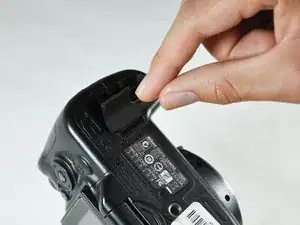

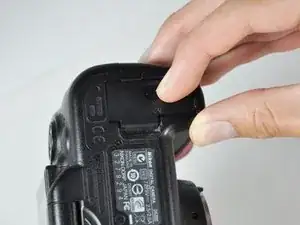

    • On the bottom of the camera, pull the release tab towards the center of the camera, then pull up.

  2. xSjfs56raMKMONwU
    xSjfs56raMKMONwU
    saHUHUprGYgRmuaj

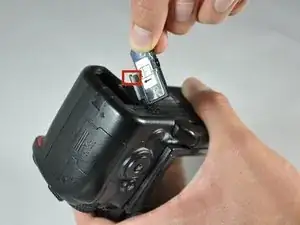

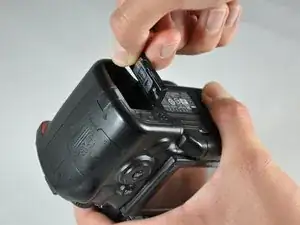

    • Grip and hold the front end of the battery door at a 45-degree angle from the case.

    • Pop the battery door out by pulling the front tab up.

    • When reassembling, seat the rear tab in its slot before pushing the front tab back in.

Abschluss

To reassemble your device, follow these instructions in reverse order.
