This guide takes you through a step-by-step process to replace your camera's motherboard. The first seven steps can also be used to replace the camera back, which is a handy way to replace the LCD without having to de-solder any wires. If you are going the whole way and replacing the motherboard, you will need to use a soldering iron during this process, in which case be sure to use caution when doing so!
-
-

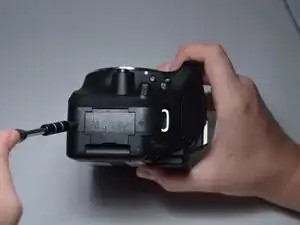

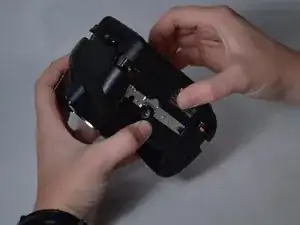

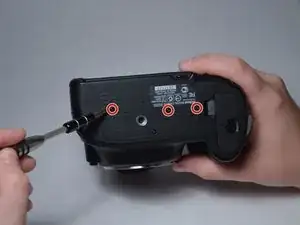

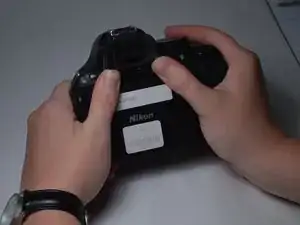

Remove the three 3.5-mm screws from the underside of the camera that are circled.
-
Remove the battery, and any SD card that is in the camera.
-
-
-

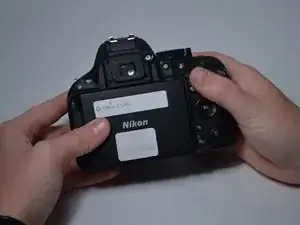

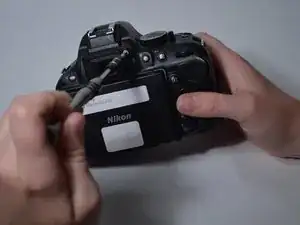

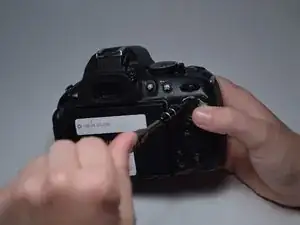

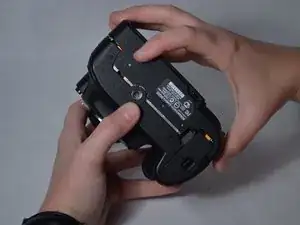

Gently pry back the rubber pad on the back of the camera with a metal spudger or other tool, or your fingernail, to reveal a hidden screw.
-
Remove the 4-mm screw.
-
-
-

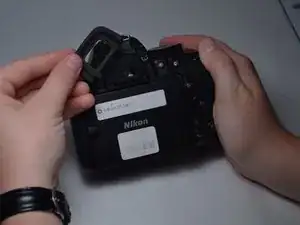

If a rubber guard is present around the viewfinder, press upward on the guard to remove it.
-

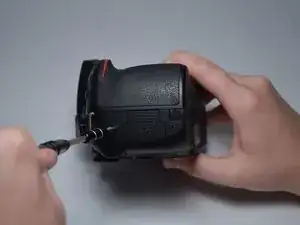

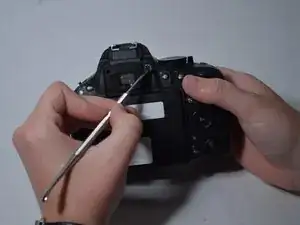

Remove the three 7mm screws around the viewfinder.
-
-
-
Carefully use a metal spudger to remove the cap from the dioptric adjustment dial to reveal a screw. Note that you are only removing the cover -- the insert on the dial that has the "+/-" on it -- not the entire knurled ring.
-
Remove the 12-mm screw.
-
-
-

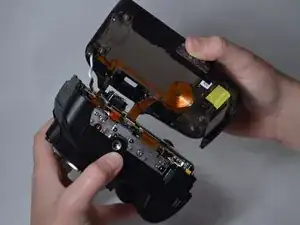

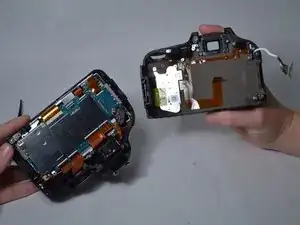

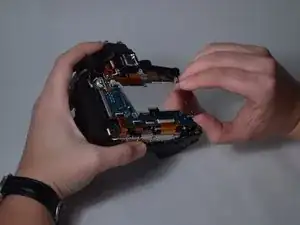

Once all screws have been removed, carefully pull the casing apart. Take care not to pull any wires apart.
-
-
-

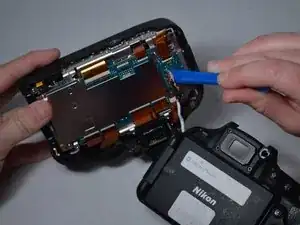

Use a plastic opening tool to unplug the two ribbon cables connecting the two parts of the casing.
-
The orange-brown ribbon cable has a tiny brown plastic latch/door that flips up to release the cable. The silver ribbon is simply pressed into place; the ends are the safest point to gently pry it off to avoid damaging its wires.
-
If you are only replacing the camera back, stop here and reverse the preceding steps to install the new back.
-
-
-

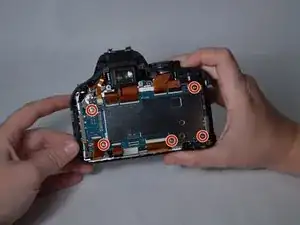

Remove the 3.5-mm screws around the edges of the metal plate covering the motherboard.
-

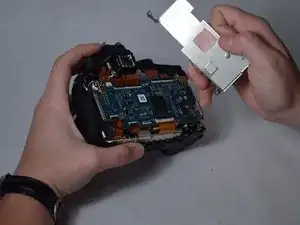

Pull the metal plate off and away from the motherboard.
-
-
-
Use tweezers to remove the small cable in the top-left corner of the motherboard from its socket.
-

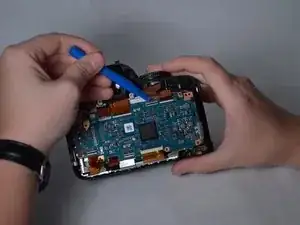

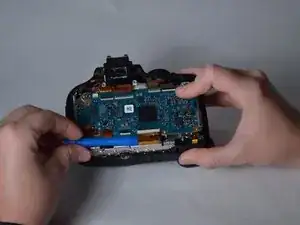

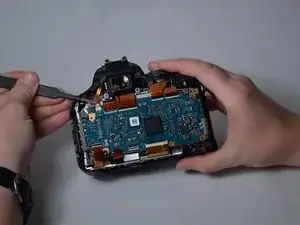

Use a plastic opening tool to unplug the remaining ribbon cables.
-
-
-

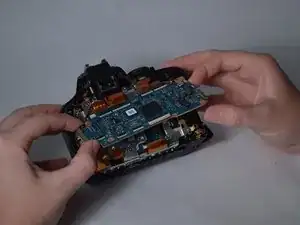

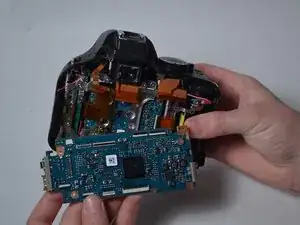

Remove the motherboard from its seat and lift it up.
-

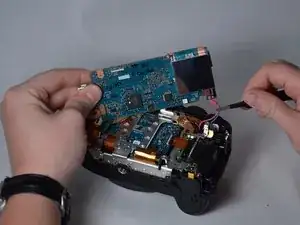

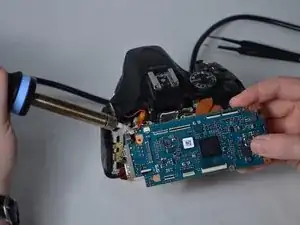

Unplug the red and blue wires from their socket.
-
To reassemble your device, follow these instructions in reverse order.
