Nikon D5200 Screen Replacement

Geschrieben von: Alexander Corn
  • Kommentare: 9
Nikon D5200 Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

20 Minuten

Einleitung

Make sure to have your soldering iron ready prior to replacing the screen. This will make the process go faster as the time it takes to heat the soldering iron varies.

  1. jDXnEKv6s3ofcwkB
    jDXnEKv6s3ofcwkB
    snGQT2BfECqMJNkE
    jRGN25D1haShlCFx

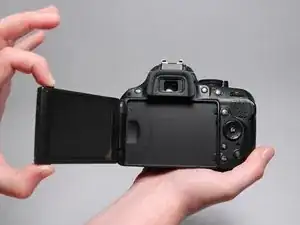

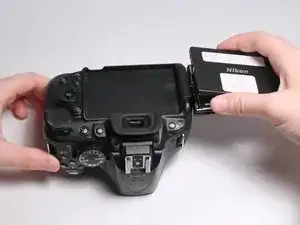

    • Fully open the LCD panel so that its screws are easily accessible.

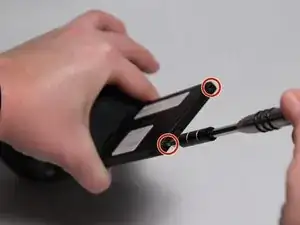

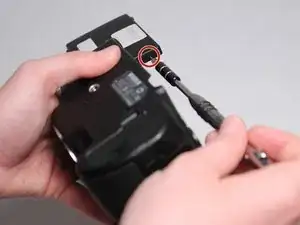

    • Remove the two 2.5 mm screws from the outside edge of the screen casing, and the two 3.5 mm screws from the inside edge.

  2. f5hELKMQyLQli1iy
    f5hELKMQyLQli1iy
    rDFkmFPlqw4DEldT
    KRMmHBwSjDFX1frk

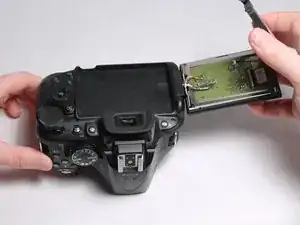

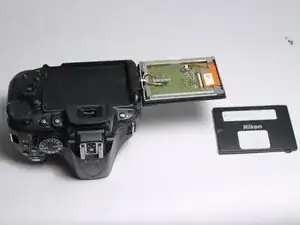

    • Pry open the plastic casing using the opening tool or by hand.

  3. 2NRTUMQHrfNn5U5h
    2NRTUMQHrfNn5U5h
    h3sX6ObIYdVZWDug
    woy4IP3MxOQQPhJf

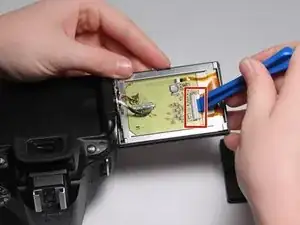

    • Use the plastic opening tool to pop up the latch holding the ribbon cable on the right side of the circuit board, and remove it.

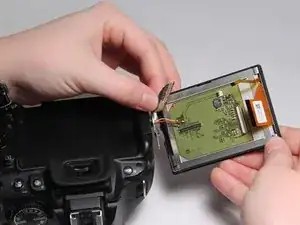

    • Use the plastic opening tool to pry the ribbon cable on the left side of the circuit board up and off of its socket.

  4. lGIIKUSWirHpBNtc
    lGIIKUSWirHpBNtc
    nGTG4TCrgAmbyqVs

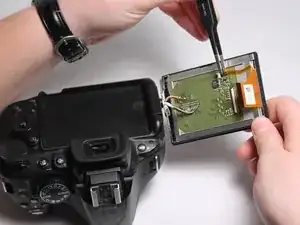

    • Using tweezers, unplug the smaller cable.

  5. kHILsauPBwYS6RGO
    kHILsauPBwYS6RGO
    pgIcCHTT5rUdDTjV

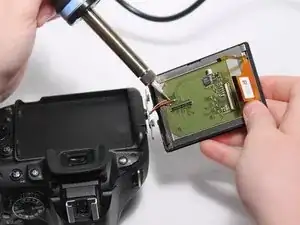

    • Desolder the three small wires on the left side of the circuit board.

    • Soldering irons become very hot when in use. Take all necessary precautions to avoid injury.

  6. blQvFMPyamTqSS5Q
    blQvFMPyamTqSS5Q
    MfOffXKJv4JsLQvD
    phCVnllmQISG5MEa

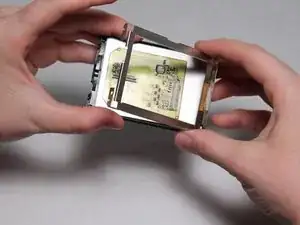

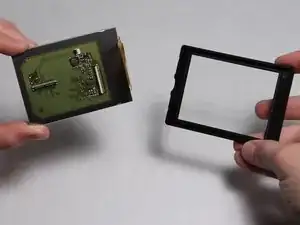

    • Using a spudger, remove the display from its casing.

    This helped me a great deal determining if it was my actual lcd or connection problem!

    rudy_saram -

Abschluss

To reassemble your device, follow these instructions in reverse order.
