Use this guide to replace the LCD board, which also houses the physical switches for the buttons on the rear cover.

  1. nGyLXbYAyfAxYqVM
    • Use your finger tip to pull the battery release tab toward the center of the D70.

    • Open the battery door and rotate it away from the bottom cover.

  2. gP1L62ZOQKCETigP
    • Pull the battery out of the D70.

    • It may be necessary to wiggle the battery while pulling to free it from its pocket in the case.

  3. r1e5PuGaIhXloVrr
    • Remove the two 4.8 mm Phillips screws securing the battery side of the rear cover to the D70.

  4. y3CG2CXlKiPBUOXd
    • Remove the two 4.8 mm Phillips screws securing the port side of the rear cover to the D70.

  5. QyvbtBNrhmpvNV4n
    QyvbtBNrhmpvNV4n
    iMZNE3iEHhNiYuFm
    • Use your fingernail to flip up the ZIF locking flap on the LCD ribbon cable socket.

    • Be sure you are opening the locking tab, not pulling against the socket mounted to the board.

    • Pull the LCD board ribbon cable out of its socket.

  6. SCAjimU2aiLyFVYi
    SCAjimU2aiLyFVYi
    bueQ4q4Ce1SeDNxw
    • Carefully pull the sides of the rear cover away from the body of the D70.

  7. 61CUc3sTwxgAT2AR
    61CUc3sTwxgAT2AR
    dVvSvYmSrKQSpXgV
    • Pull the rear cover off the body of the D70, minding the LCD board ribbon cable that may get caught.

    • At this point, the capacitor is visible and its exposed contacts are boxed in red in the second picture. Even though they are recessed, be careful not to touch the contacts to avoid shocking yourself.

  8. h1xj6WNCY3Afi3iL
    h1xj6WNCY3Afi3iL
    DxxjINogLA1DcbT3
    • Use your thumbnails to push the ZIF cable lock toward the LCD.

    • Do not completely remove the ZIF cable lock. It should move about 1 mm and stop. Be sure you are pushing against the lock, not the socket.

    • Pull the LCD ribbon cable out of its socket.

  9. Zj6eKhmCmTyTJt2I

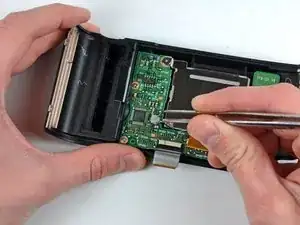

    • Use a pair of tweezers to pull the LCD backlight connector away from its socket.

    • It may help to wiggle the connector as you pull it out of its socket.

  10. VgHr5GQBDxoDFnWB
    VgHr5GQBDxoDFnWB
    wpRWC4vbTeihGBCO

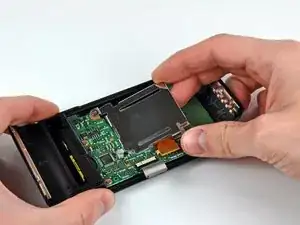

    • Remove the two 4.8 mm Phillips screws securing the LCD bracket to the rear cover.

    • Lift the LCD bracket out of the rear cover.

  11. LMAJgL2QBDehddcP
    • Remove the LCD assembly from the rear cover.

    • Be sure both the face of the LCD and the inner face of the clear LCD cover are perfectly clean before reassembly, as any dust or fingerprints trapped inside will be annoyingly visible when the device is turned on.

  12. lUbWEvJwiIEqC34H
    • Remove the three 3.1 mm Phillips screws securing the LCD board to the rear cover.

  13. CPEkGmW1EcFysYUS
    • Remove the LCD board from the rear cover.

Abschluss

To reassemble your device, follow these instructions in reverse order.
