Nikon D7100 Dial mode button Replacement

Geschrieben von: Wesley Eveld

Kommentare: 27

Nikon D7100 Dial mode button Replacement

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

20 Minuten

Einleitung

If your Nikon D71000 Dial Mode Button does not switch the camera mode when twisted, use this guide to replace the Dial Mode Button.

No special skills are required to be able to perform this replacement.

Before beginning with this guide, make sure that the device is turned off and disconnected from any external source.

Werkzeuge

Phillips #0 Screwdriver

Schritt 1

Remove the five screws on the bottom of the camera with a JIS #000 head screwdriver.

Schritt 2

Remove the 3 screws under the battery flap and remove the bottom cover.

There is an addition screw at the very top of the battery bay. If you don't remove this screw, you will damage the core body of the camera (Ask me how I know).

Thomas Fons Revilla -

Yes. There is another screw inside the battery bay. You save a lot of D7100 👍

Tu - 08/12/22

Schritt 3

Remove the 2 screws inside the camera on the back corners.

Schritt 4

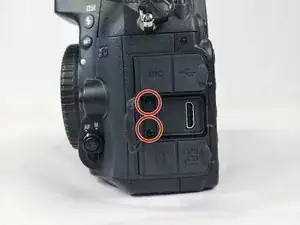

Open the HDMI flap and remove the 2 screws.

Schritt 5

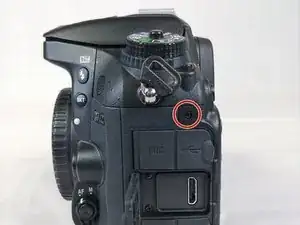

Remove the screw next to the camera strap loop.

Schritt 6

Remove the 2 screws on each side of the view finder.

Only 1 screw on each side of viewfinder totaling 2 screws, 1 on the left and 1 on the right.

Drew Creates -

Schritt 7

Remove the 2 screws above and below the SD card flap.

becareful,might lose thread your screw.

Yu Yu - 15/10/20

the two screws under the car door turn very hard (D7200). I affixed a 25mm plastic (delrin) wheel on my JIS 00 + screwdriver for better torque. This worked.

Bernard Delley -

Step 7 might be skipped, if you just need to get at the LCD screen. This side panel with the car slits only supports the lower screw for the back panel in step 8. The back panel might lift off in step 10, without removing the side panel of step 7. If step 10 does not lift off, do step 7 preceding step 10.

Bernard Delley -

This step has 4 screws total. 2 above and 2 below. You throw off the screw count if you don't label each step correctly. Not a mistake but a bit of a play on words making a quick glance seem deceptive.

Drew Creates -

Schritt 8

Peel off the adhesive leather screw cover and remove the 2 screws under it.

Schritt 9

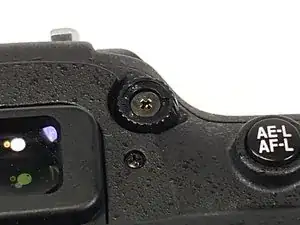

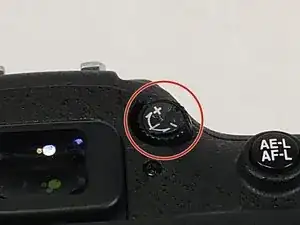

Remove the Diopter adjustment control sticker and remove the screw under it.

If you skipped step 7, you have to loosen the 4 step 7 screws by about 1mm to get the back panel off cleanly in the next step.

Bernard Delley -

Schritt 10

Separate the back panel of the camera from the actual camera.
Be careful not to tear any of the ribbon cables.

Schritt 11

Disconnect the LCD ribbon cables and power cable from the motherboard.

Flip up the dark grey tab on the ribbon cable connector with your fingernail to release the clamp before removal. When reassembling ensure the cable is fully reinserted then push the tab back down to lock.

Stephen Lipiec - 19/03/20

Schritt 12

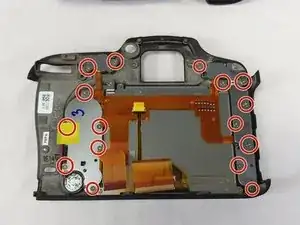

Unscrew all 16 screws around the back plate of the camera.

This does not need to be done whatsoever for mode dial replacement. This is only needed if you are replacing the screen.

Thomas Fons Revilla -

Schritt 13

Then unscrew the remaining screws holding the back plate to the LCD.
Then simply remove the plate with the LCD.

Are all the screws the same length / size ? Thanks

trevee359 - 22/11/18

Disassembling the D7200, the screen is glued to the frame but it can be carefully prised off using dentist’s hook, make sure you scrape of any old screen glass around the edge.

a.brown.1 - 15/09/19

When starting disassembly group each set of removed screws from each disassembly section and GROUP them, put an earbud cleaner or similar inbetween each group of screws to seperate them as you progress through the disassembly. Then you can work back in reverse when you have installed the new LCD screen. Remember to use a dust blower to remove flakes of the old LCD after installing the new LCD before starting to put the screws back.

a.brown.1 - 15/09/19

I used about 15 ziplocked bags to hold each step screws parts in. Having hard time removing's LCD glass from frame .

John Burns Smiley -

This does not need to be done whatsoever for mode dial replacement. This is only needed if you are replacing the screen.

Thomas Fons Revilla -

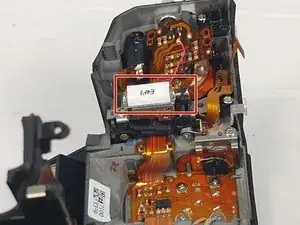

Schritt 14

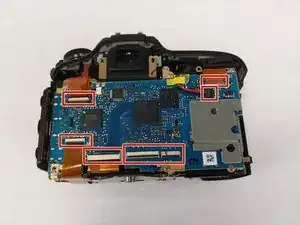

Undo the 5 ribbon cable connectors by flipping the latches up with a plastic spudger.

Schritt 15

Remove the black 4 pin connector by pulling it out of the connector.

this one goes vertically up.

Bernard Delley -

Schritt 16

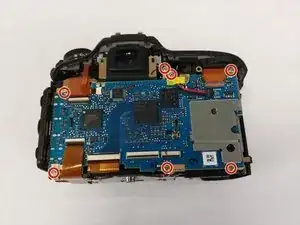

Remove the 7 screws holding the motherboard in place.

Schritt 17

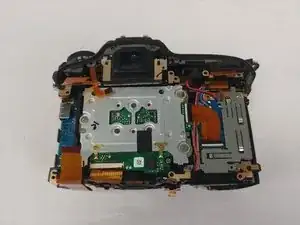

This is what you should see after removing the motherboard.

Schritt 18

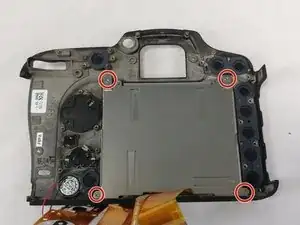

After following the guide to remove the back LCD screen from the motherboard, remove the 2 marked screws.

Step 20 should be performed first.
These do not need to be removed. This is only needed for accessing the lower internals of the camera.
Other screws are removed. See later comments.

Thomas Fons Revilla -

Schritt 19

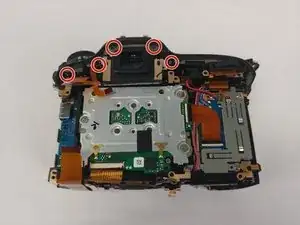

Remove these 5 screws along the top of camera body.

There are only 3 screws, not 5. But yet again, these do not need to be removed to access the top shell. You can remove these later much more easily once the top shell is removed. This would be done to remove the top shell internals.

However, instead of removing these screws. Remove the screws on each side of the camera attaching the top shell to the bottom. Silver on the left, black on the right.

Thomas Fons Revilla -

Schritt 20

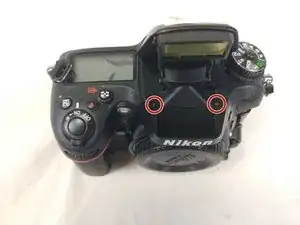

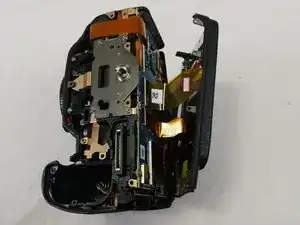

Remove these 2 screws on the top of the camera and pull the top screen, flash, and dial-mode button from the main body of the camera.

There are two additional screws on the front side of the camera above the mount opening that also need to be removed, and you also remove the front Shell.

Thomas Fons Revilla -

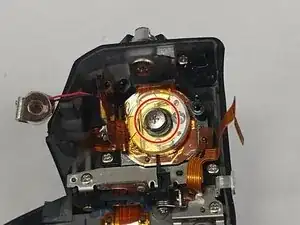

Schritt 21

Remove the screws holding the dial-mode PCB board down.

Schritt 22

Remove the potentiometer and PCB off together.

Schritt 23

Remove the large screw in the middle of the dial-mode button. This allows you to replace it.

The screw gets you where you need to go, but doesn't describe how to fix the most common problem with these cameras. The mode dial does not lock.

Once you have removed this screw, the mode dial will fall off. You will also find a metal ring with a downward tongue that slots into the mode dial below. This ring is what locks the mode dial, and is suppose to be attached into the mode dial part that was removed. When it's dislodged, the dial is operable but does not lock.

To reinstall it into the dial, the orientation does not matter. You will need to push down on the lock button, and insert the ring around the tabs in the dial. I found it easiest to do this on a table pushing down on the dial, and using a 000 flat head to push down each side into the dial.

It can then be reinstalled into the body.

Thomas Fons Revilla -

Abschluss

To reassemble your device, follow these instructions in reverse order.
