Nikon D80 Rear LCD Screen Replacement

Geschrieben von: Sara Martin
  • Kommentare: 0
Nikon D80 Rear LCD Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

20 Minuten

Einleitung

Potential damage could occur to the rear LCD screen which could affect performance. For safety purposes, please remove the battery before working with any electronic components.

  1. MvGuLsI5gPuJufX4
    MvGuLsI5gPuJufX4
    c6tKEEJLfypJNI12
    pK5QE6P53sU2WrSb

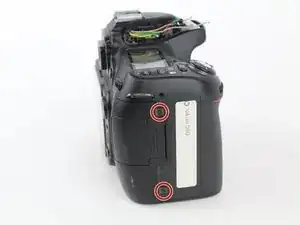

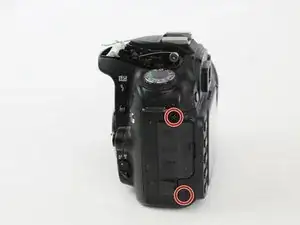

    • Using a Philips #00 screwdriver, remove the four 6.2mm from the left and right sides of the outer cover.

  2. L6sYhRPmvpMr2qPI
    L6sYhRPmvpMr2qPI
    2Ap5VT2wgBLvBYg3
    BfIT4JbLH2UdVoiw

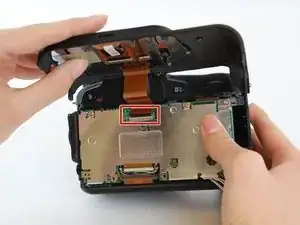

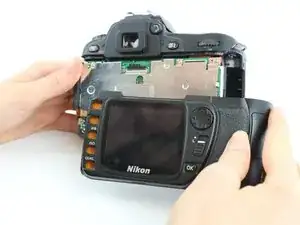

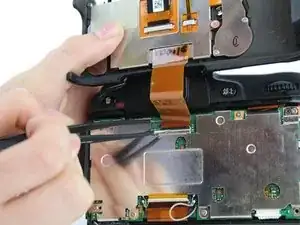

    • Use tweezers to gently flip the small locking flap of the zero force insertion connector up.

    • Pull the orange connector cable away from the main body of the camera using the tweezers.

    • Remove the back cover.

  3. UaXRq5anKNkitlOD
    UaXRq5anKNkitlOD
    3KTPADMSImAbVKx3

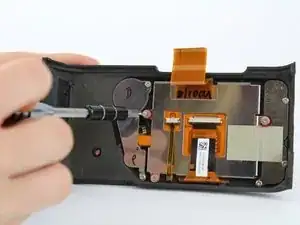

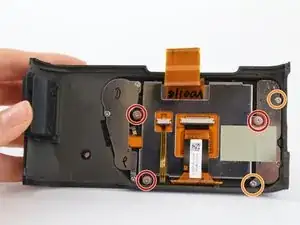

    • Using a Philips #00 screwdriver, remove the three 4.3 mm screws by rotating screwdriver to the left.

    • Use the Phillips #00 screwdriver to remove the two 3.4 mm screws.

  4. smDbVkEIBq3YFNlu
    smDbVkEIBq3YFNlu
    ldx42oQVfKJT3nHx

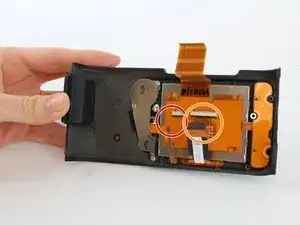

    • Using blunt tweezers, gently flip the small locking flap of the zero force insertion connector up for both connectors.

    • Use blunt tweezers to pull the left ribbon connector out of the zero insertion force connector.

    • Using the same tweezers, pull the right ribbon connector out of the zero insertion force connector.

  5. TRXD5FkslUBTjcpZ
    TRXD5FkslUBTjcpZ
    EUVnUSNvZScpV1sT

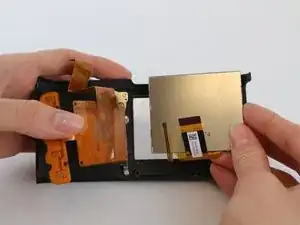

    • Slide out the LCD screen by pulling towards the right.

    • Remove the LCD screen.

    • The buttons beside the screen fall out easily. Remember where they were and put them back when finished with the screen.

Abschluss

To reassemble your device, follow these instructions in reverse order.
