Nikon D90 Flash Bulb Replacement

Geschrieben von: jonothon cawley
  • Kommentare: 2
Nikon D90 Flash Bulb Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

20 Minuten

Einleitung

With a few simple tools and parts, this guide will help you replace your broken or burnt out bulb on the Nikon D90 camera. Be careful not to strip the screws as you disassemble the camera. In addition, be careful not to break the bulb or cut yourself on a broken bulb while you are disassembling the camera.

  1. koZBElMjh2rHOkqK
    koZBElMjh2rHOkqK
    ZdAMSKAKnOybqISY
    PFxW2wrcWIUn5mvW

    • Use a plastic opening tool to lift up the flash.

  2. YWiYJDOXBvXBEirE
    YWiYJDOXBvXBEirE
    2qfSQJuWohkwATmm

    • Using a PH00 screwdriver, remove the two 5.3 mm Phillips screws from the flash casing.

    • Be careful not to strip the screw heads.

  3. ulBmOxtMRT3GGA62
    ulBmOxtMRT3GGA62
    qFF5CkVmvtdcquuu
    jjRHcEUByMTK66OK

    • Use a plastic opening tool and carefully pry open the top casing of the flash.

    • Then, lift off the top casing of the flash.

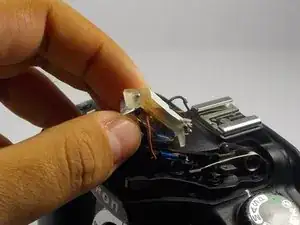

  4. R551ebkFCBLUvENa
    R551ebkFCBLUvENa
    k5gpAKSK3WuwXCXQ

    • Carefully unclip the bulb casing from the plastic casing using tweezers.

    • Remove the black and white tape on the bulb casing.

    • This tape is what holds the wires and bulb in place.

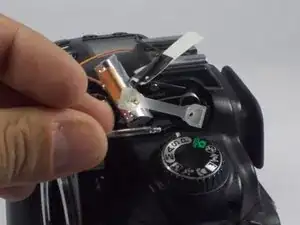

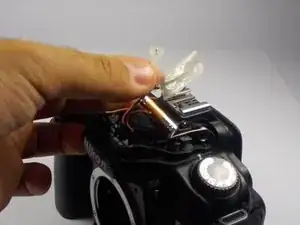

  5. 4KhXpwbDTbHmP61I
    4KhXpwbDTbHmP61I
    tBEFQMkOZOjQEJWM
    R156hdUxQSSUoRcq

    • Remove the rubber stopper on the left and right side of the bulb.

    • Separate the rubber stopper from the white and black tape.

    • The bulb can now be slid out and replaced.

    • Be careful not to break the bulb or cut yourself on the broken bulb.

Abschluss

To reassemble your device, follow these instructions in reverse order.
